Valsteam ADCA 16 bar Carbon Steel Steam Separator, 1/2 in BSP → 2 in BSP

RS Stock No.:: 917-1713
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 348535
ผู้ผลิต / Manufacturer:: Valsteam ADCA

Valsteam ADCA 16 bar Carbon Steel Steam Separator, 1/2 in BSP → 2 in BSP

สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 27/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB24,708.19

(exc. VAT)

THB26,437.76

(inc. VAT)

Units	Per unit
1 +	THB24,708.19

RS Stock No.:: 917-1713
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 348535
ผู้ผลิต / Manufacturer:: Valsteam ADCA

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet

Legislation and Compliance

สถานะRoHS: ไม่สามารถใช้ได้

COO (Country of Origin):: PT

รายละเอียดสินค้า / Product Details

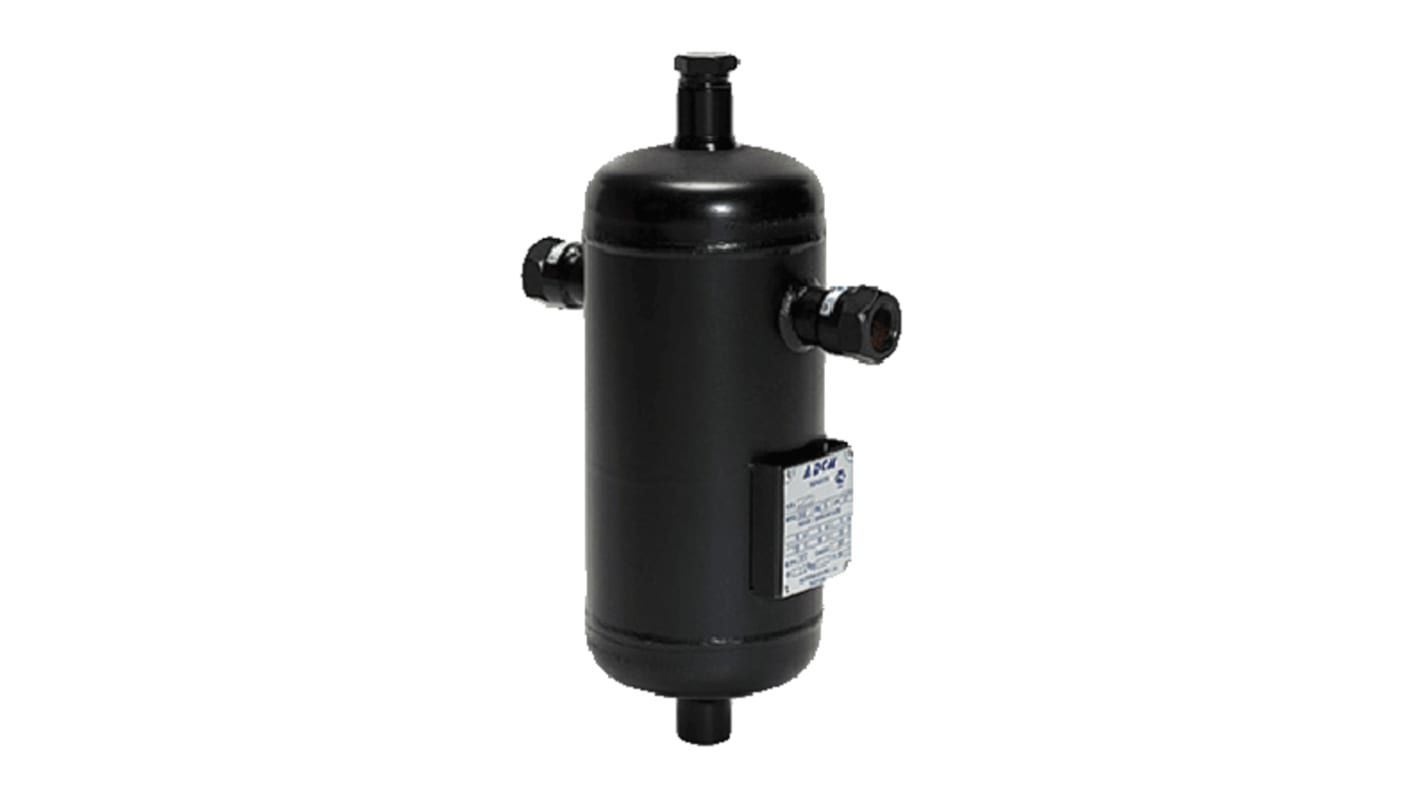

Vertical Steam Separator S16/S

Vertical steam separator for the removal of moisture from steam and compressed air pipelines. Particles with heavier specific gravity, such as water and oil droplets, are separated from the steam and compressed air by centrifugal forces.
The condensate collects at the bottom of the separator and can be drained using a suitable steam or compressed air trap.

Features and Benefits

• Several possibilities of installation
• No moving parts
• Carbon steel body

Application Information

For use with steam, compressed air and other gases.

Materials

Body – EN10216-2/P235GH/1.0325
Heads – En10028-2/P265GH/1.0425
Inlet/Outlet Pipes – EN10216-2/P235GH/1.0325
Sockets Inlet/Outlet – ASTM A/105/1.0432
Sockets – ASTM A105/1.0432
Internals – EN10025-2/S235JR/1.0038

Standards

This product has been designed for use on water, steam and other gases which are in group 2 of the PED-European Equipment Directive 97/23/EC

Steam Separators

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Connection	1/2 in BSP → 2 in BSP
Orientation	Vertical
Maximum Working Pressure	16 bar
Maximum Temperature	+250°C
Body Material	Carbon Steel
Connection Size	1/2 in → 2in
