Analog Devices EVAL-AD7175-2SDZ ADC Evaluation Board for AD7175-2

  • RS Stock No. 836-8723
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. EVAL-AD7175-2SDZ
  • ผู้ผลิต / Manufacturer Analog Devices
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

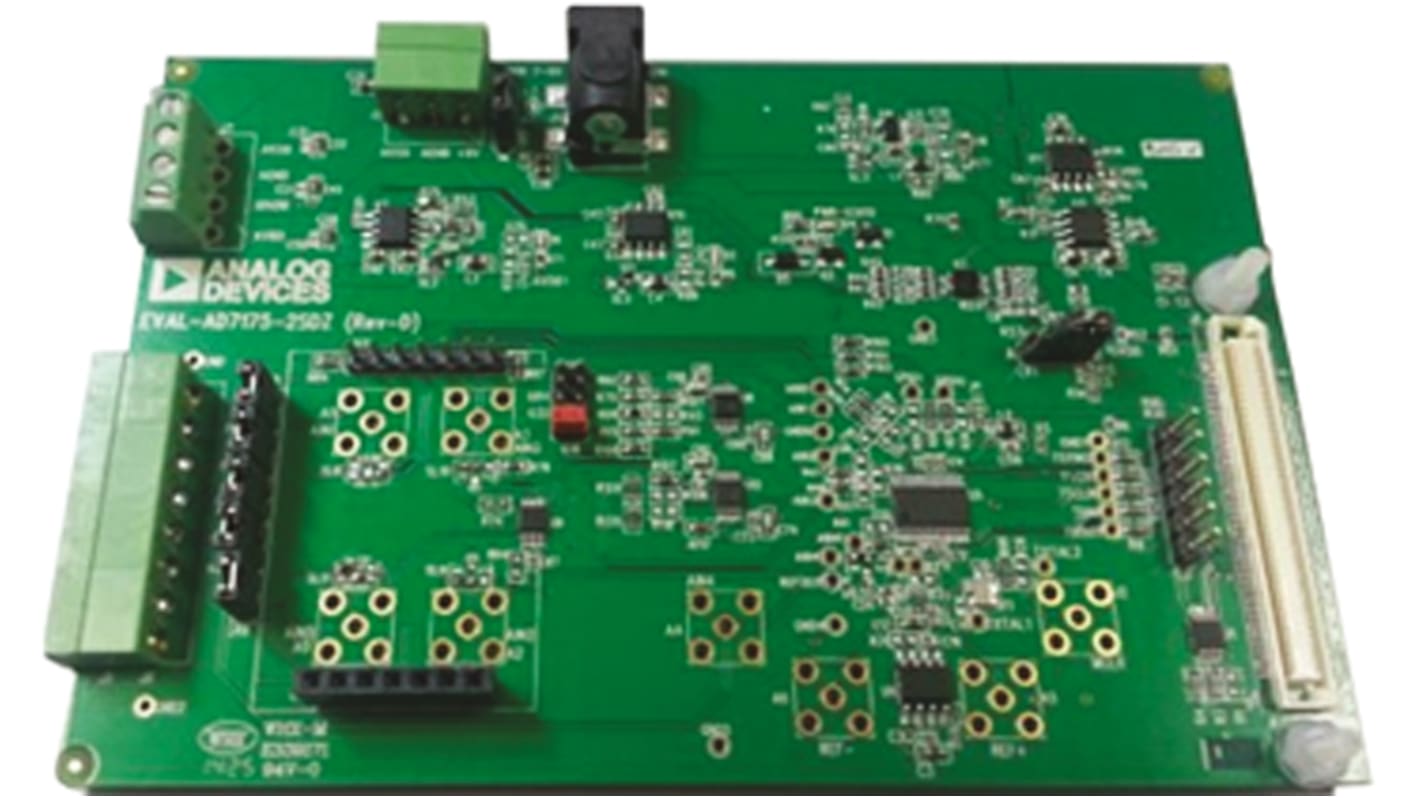

Evaluation Board for the AD7175-2 24-Bit Sigma-Delta ADC

Analog Devices Evaluation board EVAL-AD7175-2SDZ is designed to let the user evaluate all the functions of the 24-bit Sigma-Delta AD7175-2 Analog to Digital Converter (ADC). It can be controlled via the System Development Platform, EVAL-SDP-CB1Z (RS 762-0207) or by a standalone mode operation. Detailed analysis of the AD7175-2 ADC performance can be obtained by using the SDP software. If working in the standalone mode then proposed breakout board ADZS-BRKOUT-EX3 (831-6142) would be required to give access to various control pins.

Features
Full feature Evaluation board
Standalone capability
Compatible with the EVAL-SDP-CB1Z systems demonstration platform

System Requirements
PC running Windows XP SP2, Windows Vista, or Windows 7 with USB 2.0 port

Kit Contains
Evaluation board EVAL-AD7175-2SDZ
Software CD
AC to DC adapter

Note

Evaluation controller board EVAL-SDP-CB1Z (762-0207)
Breakout board ADZS-BRKOUT-EX3 (831-6142)

ADC Evaluation Boards and Development Kits, Analog

คุณสมบัติ / Specifications
คุณสมบัติ Value
Converter Type ADC
Featured Device AD7175-2
Kit Classification Evaluation Board
Resolution 24-bit
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 02/12/2020, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
คือ THB3,558.14
THB 2,876.05
(exc. VAT)
THB 3,077.37
(inc. VAT)
Units
Per unit
1 +
THB2,876.05
