Digilent Pmod CMPS2:3-Axis Compass I2C, SPI Expansion Module
- RS Stock No.:
- 194-7661
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 410-355
- ผู้ผลิต / Manufacturer:
- Digilent
16 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB370.87
(exc. VAT)
THB396.83
(inc. VAT)
| Units | Per unit |
| 1 + | THB370.87 |
- RS Stock No.:
- 194-7661
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 410-355
- ผู้ผลิต / Manufacturer:
- Digilent
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

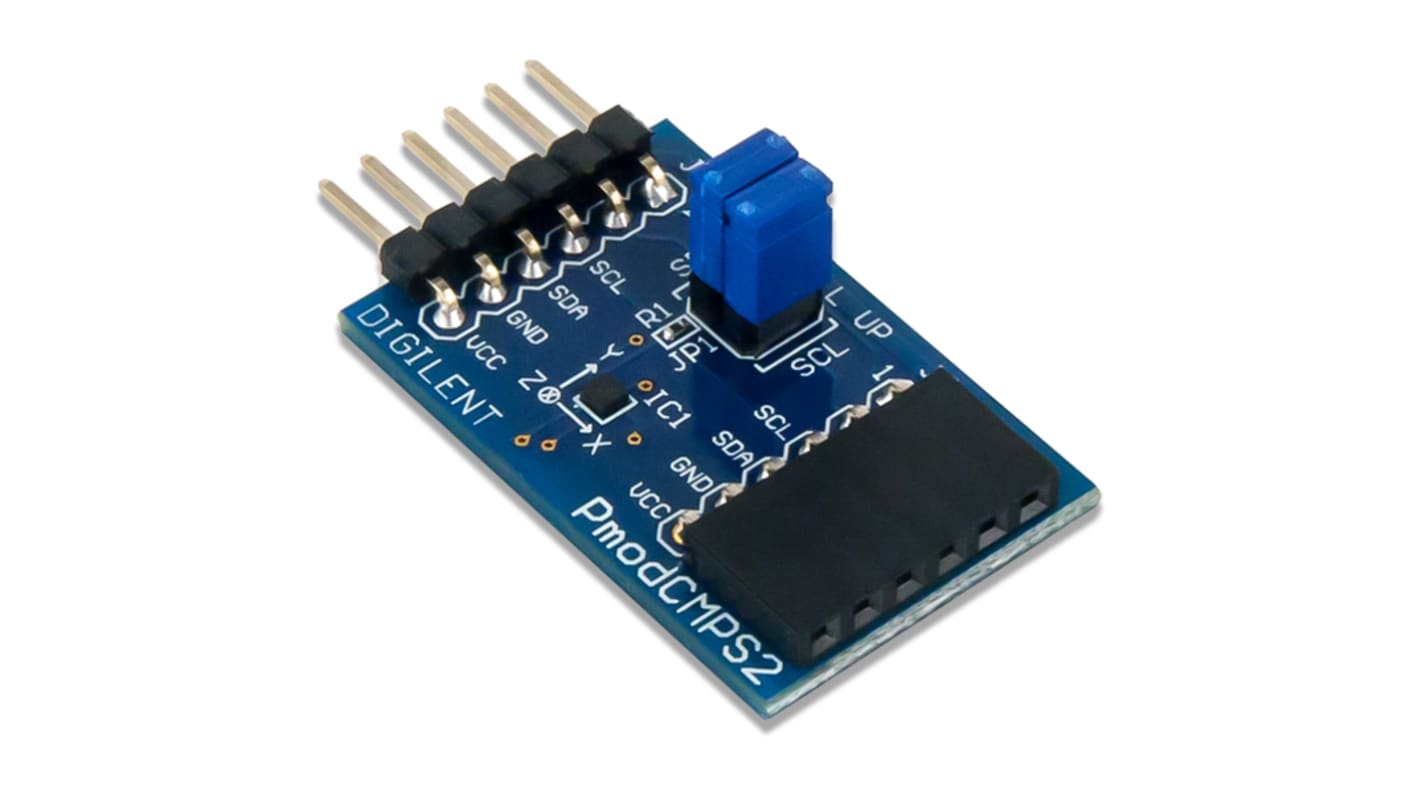

The Digilent Pmod CMPS2 is a digital compass module using Memsic's MMC34160PJ magnetometer. The local magnetic field strength can be measured in a ±16 Gauss range with a heading accuracy of 1° and up to 0.5 mG of resolution.
Low noise 3-axis digital compass
0.5 milligauss field resolution in ±16 Gauss fields
I2C Slave, FAST (≤400 kHz) mode
Optional pull-up resistors for SCL and SDA pins
1° heading accuracy
Small PCB size for flexible designs 0.8" x 1.25" (2.0 cm x 3.2 cm)
6-pin Pmod connector with I2C interface
Pass-through Pmod host port for daisy chaining
Follows Digilent Pmod Interface Specification 1.1.0
Library and example code available in resource center
0.5 milligauss field resolution in ±16 Gauss fields
I2C Slave, FAST (≤400 kHz) mode
Optional pull-up resistors for SCL and SDA pins
1° heading accuracy
Small PCB size for flexible designs 0.8" x 1.25" (2.0 cm x 3.2 cm)
6-pin Pmod connector with I2C interface
Pass-through Pmod host port for daisy chaining
Follows Digilent Pmod Interface Specification 1.1.0
Library and example code available in resource center
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Sensor Technology | I2C, SPI |
| Kit Classification | Expansion Module |
| Kit Name | Pmod CMPS2:3-Axis Compass |
