ams OSRAM AS5510-SO_EK_AB Position Sensor Adapter Board for AS5510 AS5510

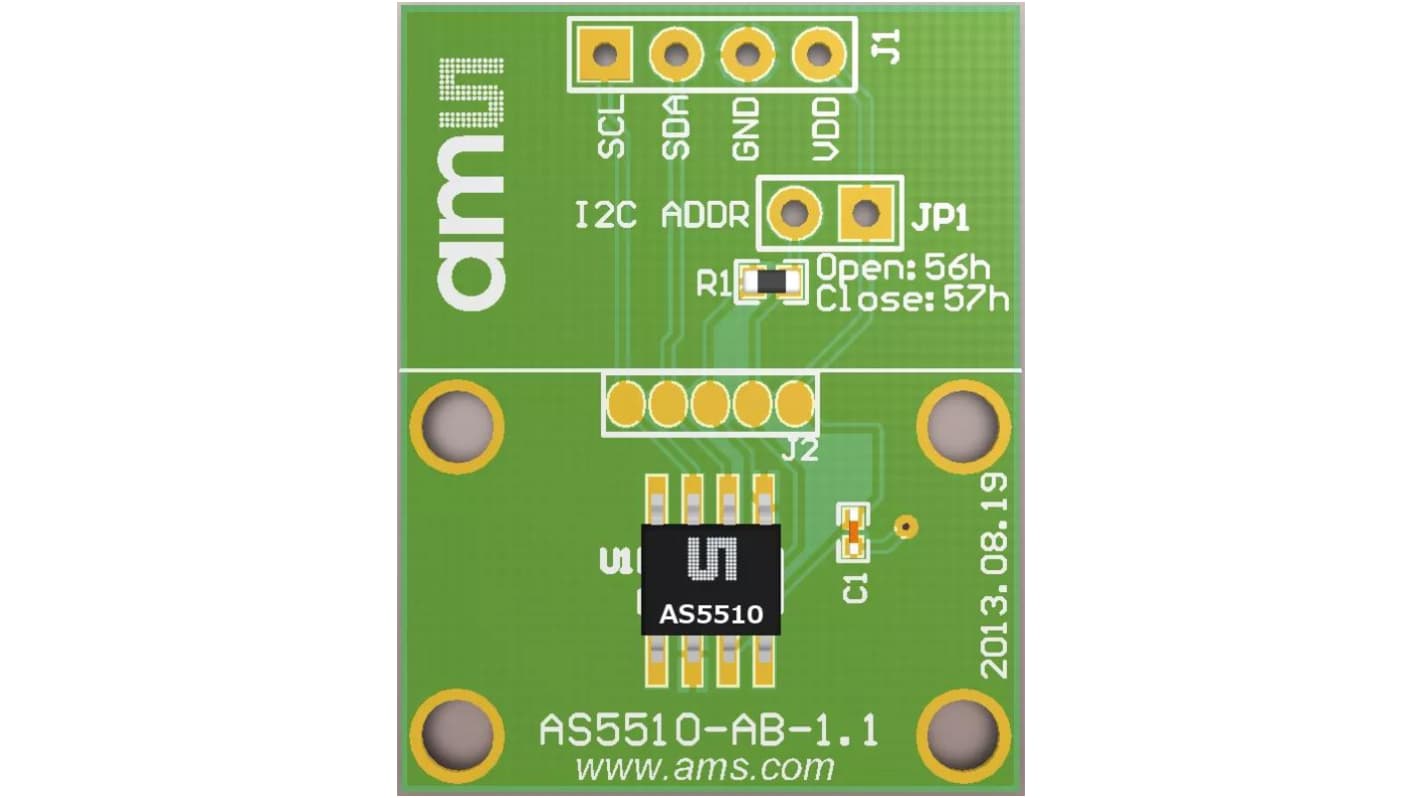

The ams OSRAM Adapter board is a simple circuit allowing to test and evaluate the AS5510 linear encoder quickly without having to build a test fixture or PCB. The adapter board must be attached to a microcontroller via the I2C bus, and supplied with a voltage of 2.5V to 3.6V. A simple 2-pole magnet is placed on the top of the encoder .

I2C Address selector
Linear Position Sensor
