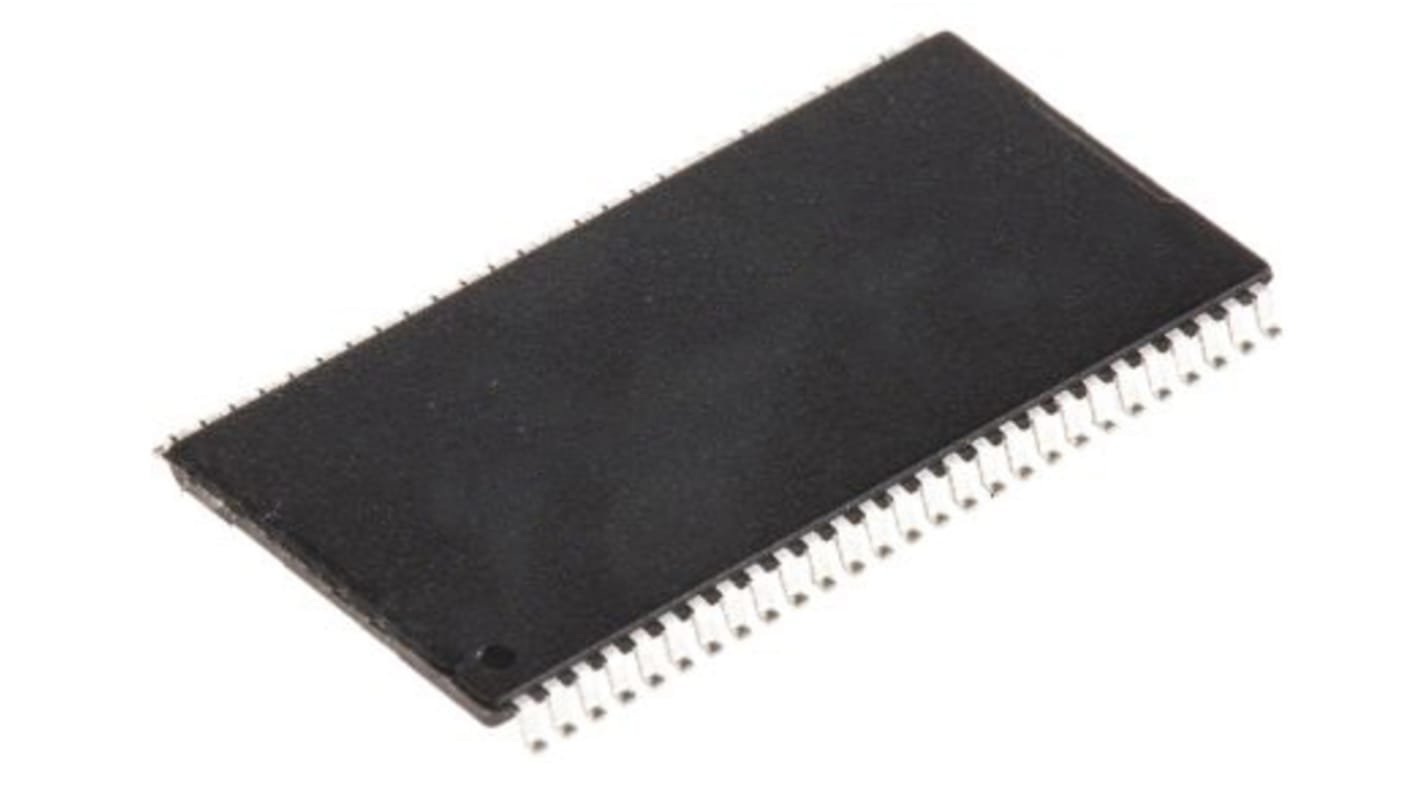

Winbond W9825G6KH-6I, SDRAM 256Mbit Surface Mount, 166MHz, 3 V to 3.6 V, 54-Pin TSOP
- RS Stock No.:
- 188-2599
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- W9825G6KH-6I
- ผู้ผลิต / Manufacturer:
- Winbond
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 12/08/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tray of 108)
THB92.891
(exc. VAT)
THB99.393
(inc. VAT)
| Units | Per unit | Per Tray* |
| 108 - 108 | THB92.891 | THB10,032.228 |
| 216 - 324 | THB90.848 | THB9,811.584 |
| 432 + | THB88.897 | THB9,600.876 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 188-2599
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- W9825G6KH-6I
- ผู้ผลิต / Manufacturer:
- Winbond
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The W9825G6KH is a 256M SDRAM and speed involving -5/-5I/-6/-6I/-6J/-6L/-6A/-6K/-75/75J/75L.
3.3V ± 0.3V Power Supply
Up to 200 MHz Clock Frequency
4,194,304 Words x 4 Banks x 16 Bits Organization
Self Refresh Mode: Standard and Low Power
CAS Latency: 2 and 3
Burst Length: 1, 2, 4, 8 and Full Page
Burst Read, Single Writes Mode
Byte Data Controlled by LDQM, UDQM
Power Down Mode
Auto-precharge and Controlled Precharge
8K Refresh Cycles/64 mS, @ -40 °C≦ TA / TCASE ≦ 85°C
8K Refresh Cycles/16 mS, @ 85 °C < TA / TCASE ≦ 105°C
Interface: LVTTL
Not support self refresh function with TA / TCASE > 85°C
Up to 200 MHz Clock Frequency
4,194,304 Words x 4 Banks x 16 Bits Organization
Self Refresh Mode: Standard and Low Power
CAS Latency: 2 and 3
Burst Length: 1, 2, 4, 8 and Full Page
Burst Read, Single Writes Mode
Byte Data Controlled by LDQM, UDQM
Power Down Mode
Auto-precharge and Controlled Precharge
8K Refresh Cycles/64 mS, @ -40 °C≦ TA / TCASE ≦ 85°C
8K Refresh Cycles/16 mS, @ 85 °C < TA / TCASE ≦ 105°C
Interface: LVTTL
Not support self refresh function with TA / TCASE > 85°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Memory Size | 256Mbit |
| Organisation | 32M x 8 bit |
| Data Rate | 166MHz |
| Data Bus Width | 16bit |
| Address Bus Width | 15bit |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 5ns |
| Number of Words | 32M |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 54 |
| Dimensions | 22.35 x 10.29 x 1.05mm |
| Height | 1.05mm |
| Length | 22.35mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 10.29mm |
