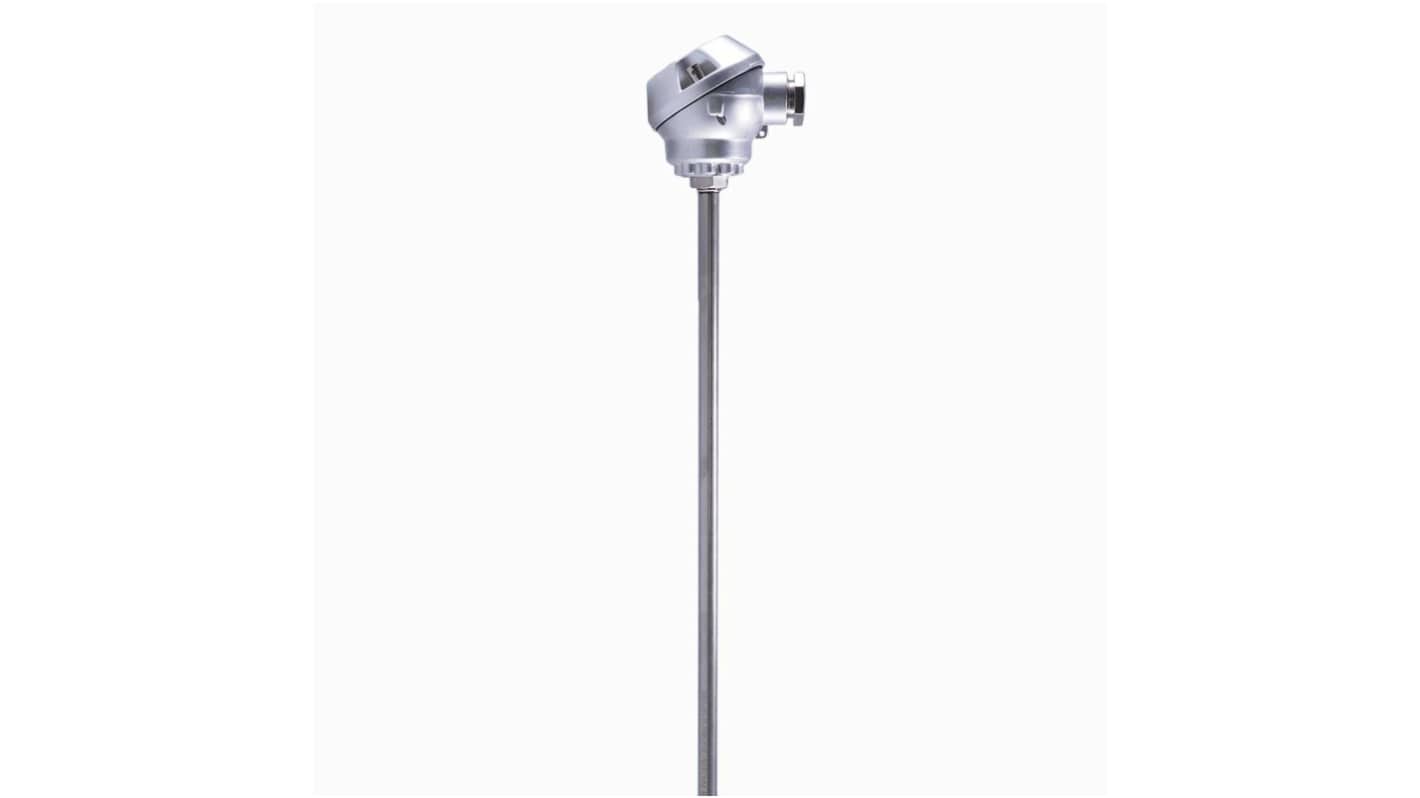

Jumo RTD Temperature Probe, 6mm Dia, 100mm Long, 2 Wire, Class B +150°C Max

The Jumo Pluggable resistance thermometer enables, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous and liquid media. The proven plug-in form guarantees a reliable seal in case of under- and overpressure. The resistance thermometer is therefore ideally suited for applications in air conditioning and refrigeration technology as well as in heating, furnace and apparatus engineering. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in two-wire circuit and is designed for temperatures from -50 to +150 °C. The continuous protection tube with the dimensions 6.0 x 100 mm is made of stainless steel 1.4571 and protects the measuring insert against chemical influences and mechanical damage.

The connection head in form J is made of die-cast aluminium, has an M16 x 1.5 cable gland and withstands temperatures from -40 to +100 °C
