ADAFRUIT INDUSTRIES Camera Module, Serial, NTSC, VGA (640 x 480) pixels Resolution

  • RS Stock No. 124-5458
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 1386
  • ผู้ผลิต / Manufacturer ADAFRUIT INDUSTRIES
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

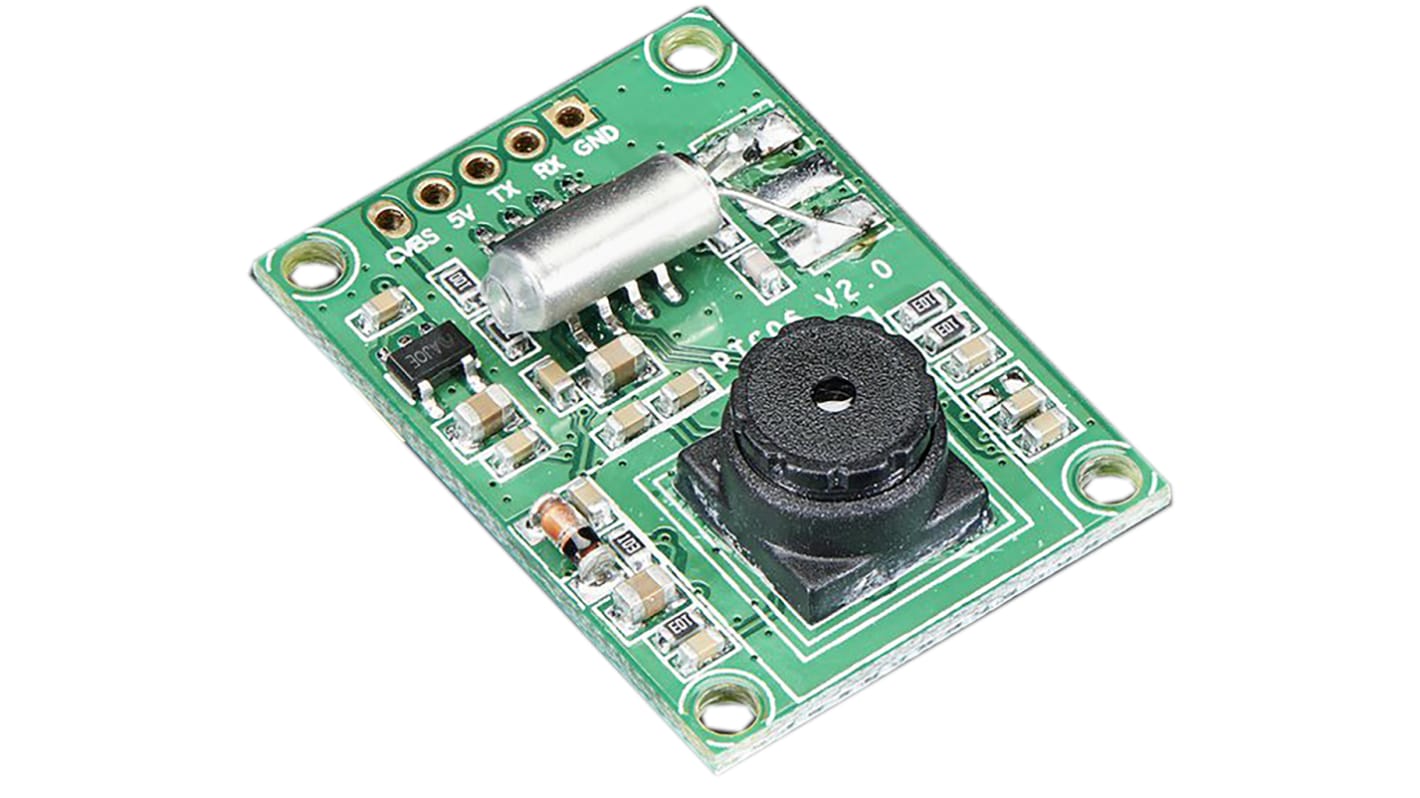

Adafruit Miniature TTL Serial JPEG Camera with NTSC Video Module

This tiny camera module offers a great way to add a camera to your project. Designed primarily to be used in security systems. It outputs NTSC colour video and takes photographs of the video and transmits them over the TTL serial link. Choose from various image resolutions; 640 x 480, 320 x 240 or 160 x 120 pixels. They are pre-compressed JPEG image which reduces the file size and enables you to store a large number on an SD card.

This module is perfect for a data-logging, security or photography project.

This camera has automatic image adjustment features to give you the best possible outputs from your camera including white balance, brightness and contrast.

The cameras motion detection provides the opportunity to capture images when something changes in the frame which again makes it great for surveillance projects.

The lens is manually adjustable with a 1 metre to 15 metres focal distance which is good for most projects.

Module size: 32 x 32 mm
Image sensor: CMOS inch
CMOS Pixels: 0.3M
Pixel size: 5.6 um x 5.6 um
Output format: Standard JPEG/M-JPEG
White balance: Automatic
Exposure: Automatic
Gain: Automatic
Shutter: Electronic rolling shutter
Dynamic Range: 60DB
Max analogue gain: 16DB
Frame speed: 640 x 480 pixels @ 30 fps
Scan mode: Progressive scan
Viewing angle: 60°
Monitoring distance: 10 metres, maximum 15 metres (adjustable)
Image size: VGA (640*480), QVGA (320*240), QQVGA (160*120)
Baud rate: Default 38400
Current draw: 75 mA
Operating voltage: DC +5 V
Communication: 3.3 V TTL (Three wire TX, RX, GND)


This video module works with the Arduino UNOs (and other Atmega328-based Arduino) but are not yet MEGA compatible.

Audio & Video

คุณสมบัติ / Specifications
คุณสมบัติ Value
Type Camera Module
Supported Bus Interfaces Serial
Maximum Supported Resolution NTSC, VGA (640 x 480) pixels
Supported Hardware Compression JPEG
Maximum Frame Rate Capture 30fps
Height 28mm
Length 20mm
12 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 1,122.14
(exc. VAT)
THB 1,200.69
(inc. VAT)
Per unit
1 - 4
5 - 9
10 +
