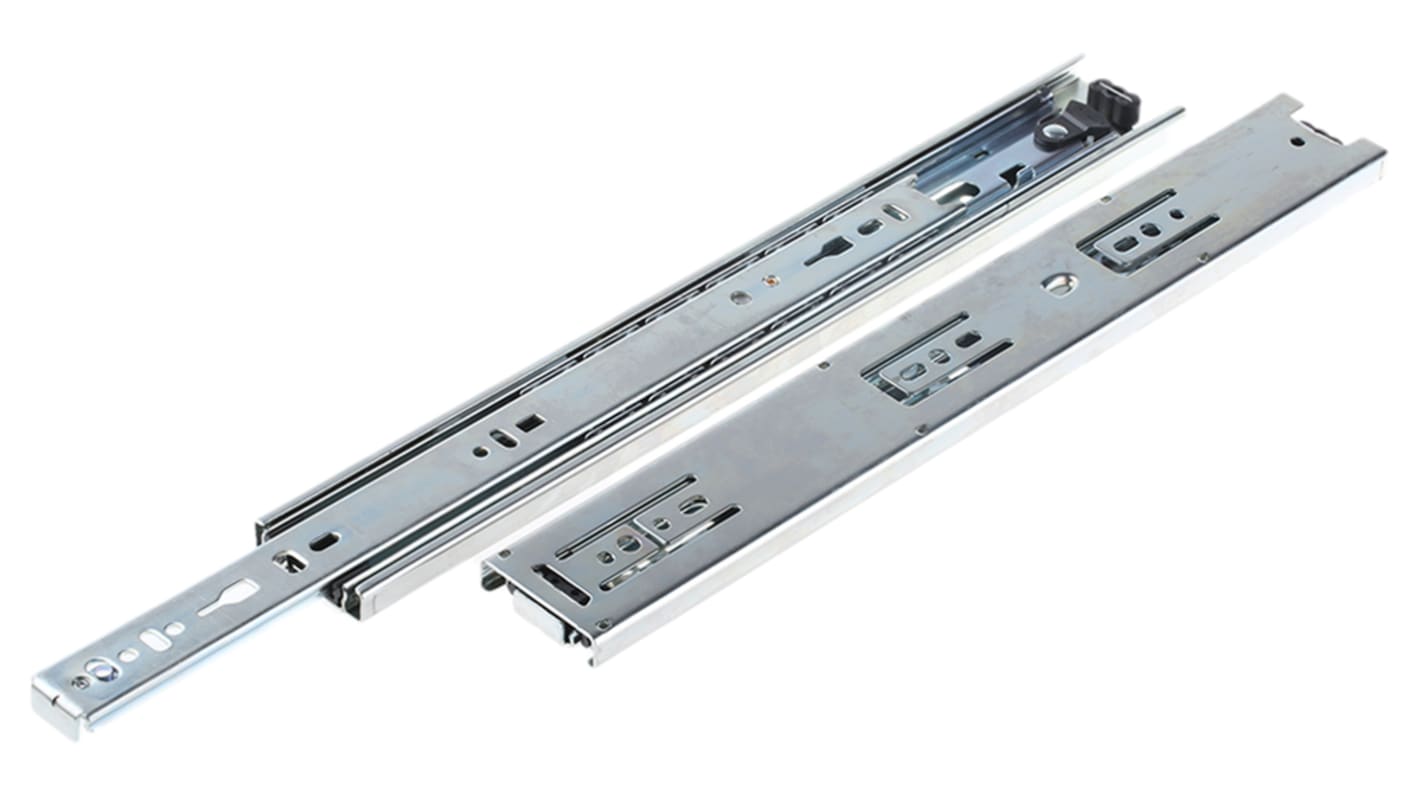

Accuride Telescopic Rail, 356mm Depth, 49kg Max Load

  • RS Stock No. 472-5416
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. DZ3832-0035DO
  • ผู้ผลิต / Manufacturer Accuride
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
รายละเอียดสินค้า / Product Details

Models 201/204/301/305/3307/3607/3832

Strong steel construction, 35.3mm high, electro zinc plated and clear chromate
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607

Note

All fitting positions must be used to achieve maximum load rating. Flat mounting reduces stated load carrying capacity to approximately 25%. Models 305//307 are dividable for easy assembly/disassembly. Model 305 disconnects for easy assembly/disassembly and has recessed mounting capability to reach a 100% extension with just 10mm side space

//media.rs-online.com/t_line/L472541-04.gif
คุณสมบัติ / Specifications
คุณสมบัติ Value
Type Telescopic Slide
Maximum Load 49kg
Material Steel
Depth 356mm
Width 12.7mm
Height 45.7mm
Slide Length Closed 350mm
Extension 100%
Hold-In Detent Yes
Series DZ3832
257 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price 1 Pair
THB 1,180.20
(exc. VAT)
THB 1,262.81
(inc. VAT)
Pair(s)
1 - 4
THB1,180.20
5 - 9
THB1,169.92
10 +
THB1,159.13
