Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	onsemi
	Maximum Switching Frequency	1 MHz
	Output Voltage	11 V
	Output Current	2 A, 7 A
	Number of Outputs	1
	Mounting Type	Surface Mount
	Package Type	TSOP
	Pin Count	6
	Dimensions	3.1 x 1.7 x 1mm
	Length	3.1mm
	PWM Controller Type	Secondary Side Synchronous Rectifier
	Width	1.7mm
	Height	1mm
	Maximum Operating Temperature	+125 °C
	Maximum Operating Supply Voltage	35 V
	Minimum Operating Temperature	-40 °C

	เลือกทั้งหมด
	Brand onsemi
	Maximum Switching Frequency 1 MHz
	Output Voltage 11 V
	Output Current 2 A, 7 A
	Number of Outputs 1
	Mounting Type Surface Mount
	Package Type TSOP
	Pin Count 6
	Dimensions 3.1 x 1.7 x 1mm
	Length 3.1mm
	PWM Controller Type Secondary Side Synchronous Rectifier
	Width 1.7mm
	Height 1mm
	Maximum Operating Temperature +125 °C
	Maximum Operating Supply Voltage 35 V
	Minimum Operating Temperature -40 °C

COO (Country of Origin):: MY

The NCP4306 is high performance driver tailored to control a synchronous rectification MOSFET in switch mode power supplies. Thanks to its high performance drivers and versatility, it can be used in various topologies such as DCM or CCM flyback, quasi resonant flyback, forward and half bridge resonant LLC.

Allows for proper timing of SR MOSFET turn on and turn off
Maximizes conduction time of the MOSFET to increase efficiency
Allows direct connection of CS input to MOSFET drain in flyback applications
Improves performance for applications working in deep CCM
Enters the IC into a low consumption standby mode
Prevents accidental MOSFET turn on or turn off due to ringing
Enhanced Operation for USB-PD Applications
Fast turn off of MOSFET for optimized conduction period
Increased stability coming in and out of Light Load
Wide output operating voltages

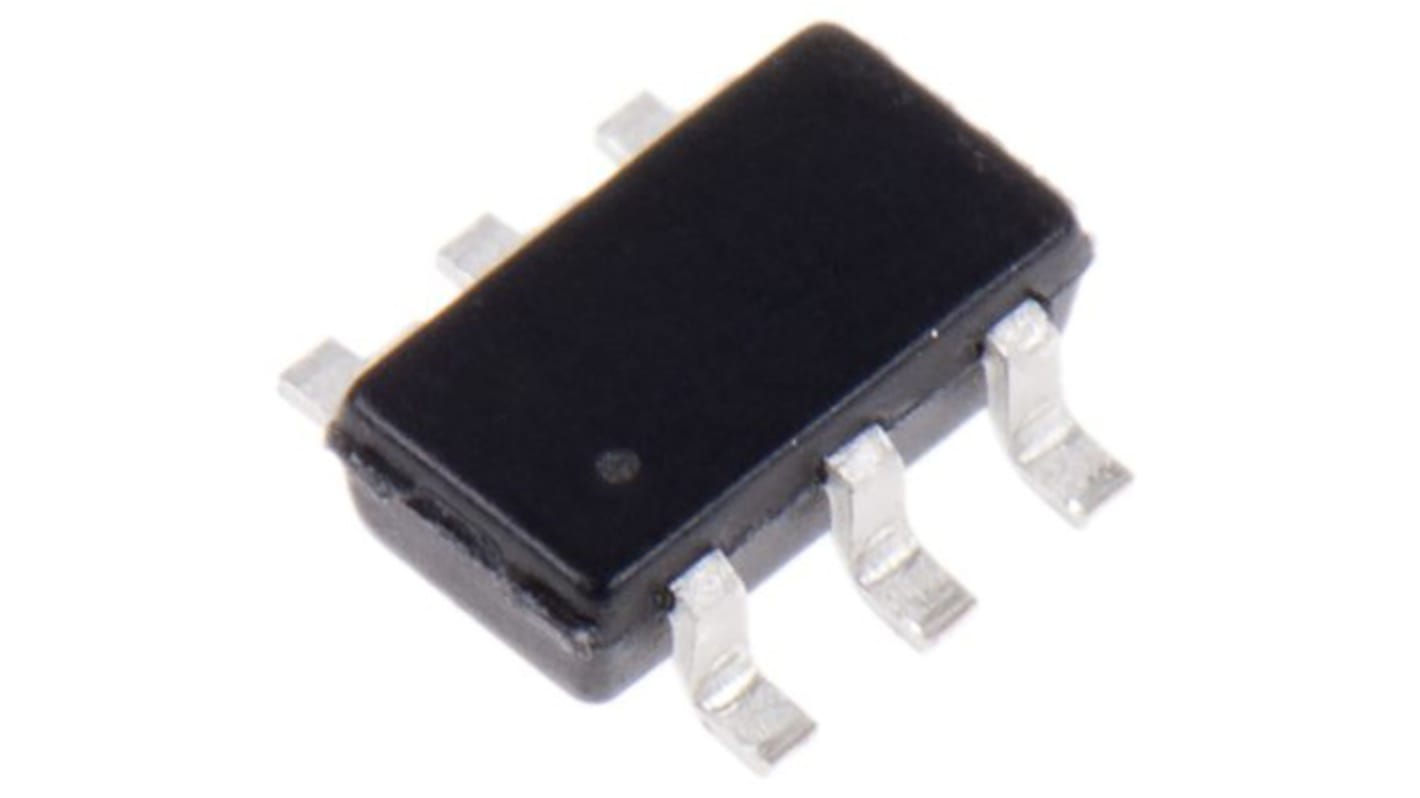

onsemi NCP4306DAHZZAASNT1G, PWM Controller, 35 V, 1 MHz 6-Pin, TSOP
