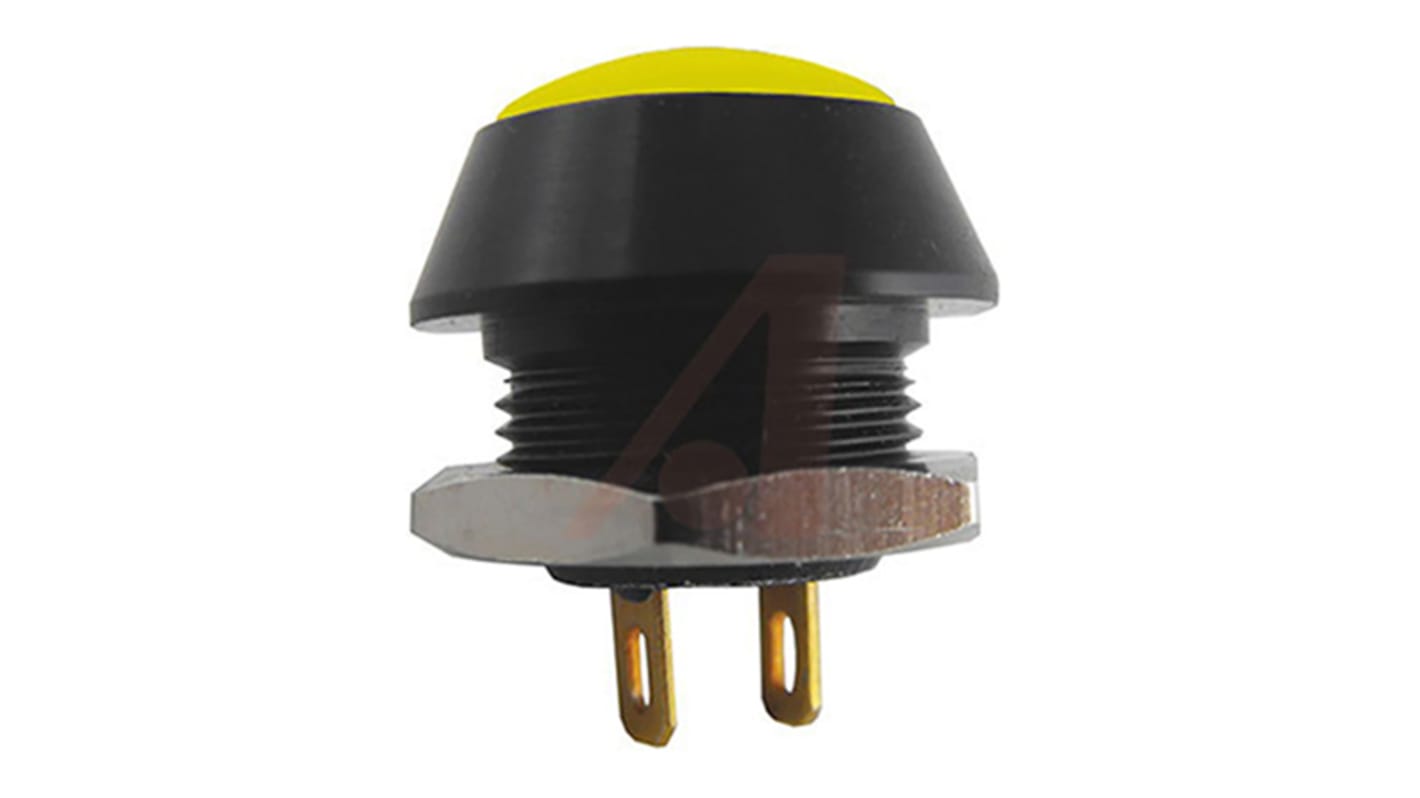

Grayhill Push Button Switch, Momentary, Panel Mount, 13.46mm Cutout, SPST, 24V dc, IP67
- RS Stock No.:
- 878-0149
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 30-203
- ผู้ผลิต:
- Grayhill
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 878-0149
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 30-203
- ผู้ผลิต:
- Grayhill
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Grayhill | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 13.46mm | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPST | |
| Voltage Rating | 24V dc | |
| IP Rating | IP67 | |
| Contact Current Rating | 150 mA | |
| Contact Material | Gold Plated Nickel Brass | |
| Case Colour | Black | |
| Contact DC Voltage Rating | 24V | |
| Manufacturer Part No. | 30-203 | |
| Terminal Type | Snap-In | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Grayhill | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 13.46mm | ||
Mounting Type Panel Mount | ||
Contact Configuration SPST | ||
Voltage Rating 24V dc | ||
IP Rating IP67 | ||
Contact Current Rating 150 mA | ||
Contact Material Gold Plated Nickel Brass | ||
Case Colour Black | ||
Contact DC Voltage Rating 24V | ||
Manufacturer Part No. 30-203 | ||
Terminal Type Snap-In | ||
- COO (Country of Origin):
- US
30 Series Butt Contact Pushbutton Switches
The 30 series is a reliable, economical range of pushbuttons with a variety of options to choose from. They are SPST and feature a contact rating of between 1 and 5 amps. Users can select from both normally open or normally closed versions and various actuator styles. These include standard, with sealed bushing and button, with over travel, with positive feel and push-pull. All options are panel mount.
Features:
Large selection
Economical
Sealed bushing and pushbutton options
Operating temperature: -40 to +85 °C
Solder lug terminals
Large selection
Economical
Sealed bushing and pushbutton options
Operating temperature: -40 to +85 °C
Solder lug terminals
Grayhill Pushbutton Switches
