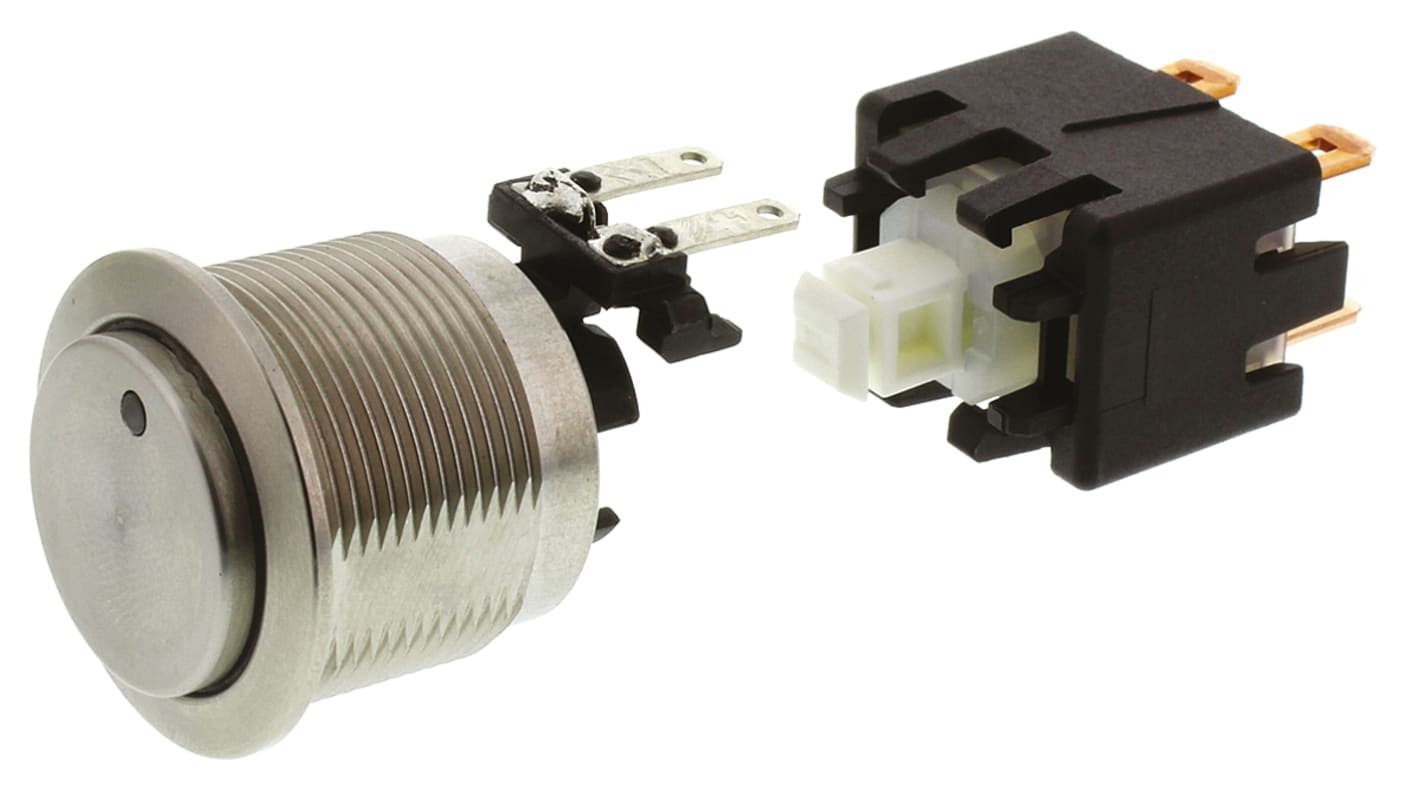

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 22mm Cutout, DPDT, Blue LED, 125/250V ac, IP64 (Front);
- RS Stock No.:
- 708-2860P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1241.6833.1124000
- ผู้ผลิต / Manufacturer:
- Schurter
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each (Supplied in a Box)
THB1,386.60
(exc. VAT)
THB1,483.66
(inc. VAT)
| Units | Per unit |
| 3 - 4 | THB1,386.60 |
| 5 + | THB1,365.27 |
- RS Stock No.:
- 708-2860P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1241.6833.1124000
- ผู้ผลิต / Manufacturer:
- Schurter
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM LA Series (Latching)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
Note
Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation
Approvals
ENEC, UL, CSA
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 22mm |
| Mounting Type | Panel Mount |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Voltage Rating | 125/250V ac |
| Push Button Style | Round |
| LED Colour | Blue |
| IP Rating | IP64 (Front); IP00 (Rear) |
| Contact Current Rating | 12 A @ 250 V ac |
| Manufacturer Part No. | 1241.6833.1124000 |
| Terminal Type | Tab |
