- RS Stock No.:
- 124-4498
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 82-6151.1000
- ผู้ผลิต / Manufacturer:
- EAO
44 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB745.34
(exc. VAT)
THB797.51
(inc. VAT)
Units | Per unit |
1 - 9 | THB745.34 |
10 - 24 | THB732.26 |
25 - 49 | THB719.53 |
50 - 149 | THB706.78 |
150 + | THB694.44 |
- RS Stock No.:
- 124-4498
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 82-6151.1000
- ผู้ผลิต / Manufacturer:
- EAO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
รายละเอียดสินค้า / Product Details
EAO Series 82 Non-Illuminated Stainless Steel Vandal Resistant Switch
EAO Series 82 of robust stainless steel housed vandal resistant switches. Series 82 have been designed to adhere to IK10 impact resistance & IP67 sealing requirements, making them suitable for exposed public applications. The series 82 are offered with either silver alloyed or gold-plated contacts, to offer reliable switching for low voltages & currents.
Features and Benefits
Vandal resistant: IK10 impact resistance & frontal protection up to IP67.
Optional illumination & laser marking options available.
Excellent, crisp tactile feedback.
> 1 million cycles of operation.
Typical Applications
Exposed public areas.
Medical equipment.
Audio and video equipment.
Building management.
Machinery & factory equipment.
Vandal resistant: IK10 impact resistance & frontal protection up to IP67.
Optional illumination & laser marking options available.
Excellent, crisp tactile feedback.
> 1 million cycles of operation.
Typical Applications
Exposed public areas.
Medical equipment.
Audio and video equipment.
Building management.
Machinery & factory equipment.

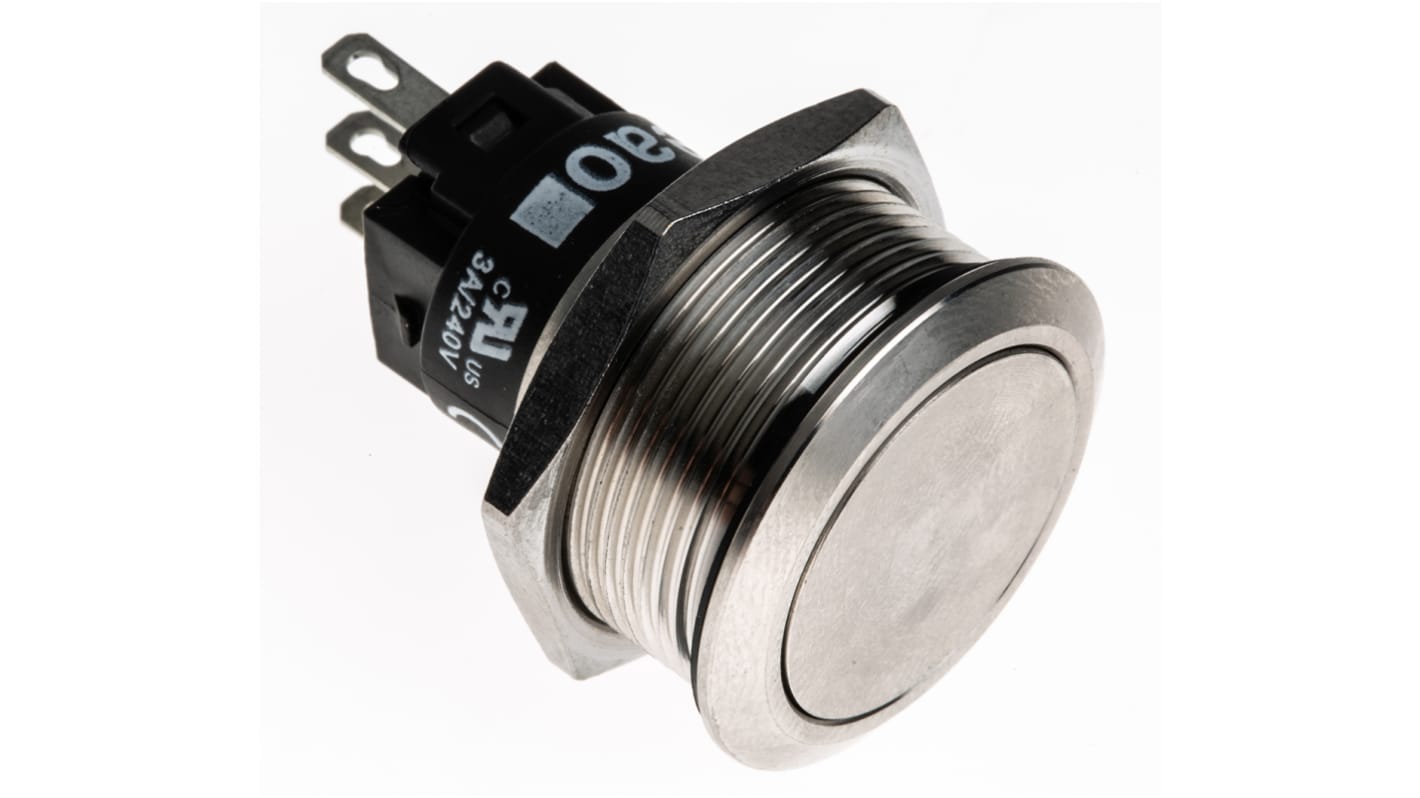

EAO Stainless Steel Push Button Switch, SPDT, 22mm Cut-Out Diameter - 82 Series - 82-6151.1000
Open and close a machine's electrical circuit with this push button switch from EAO. The robust device is made from stainless steel, so it's resistant to impact and corrosion for use in harsh industrial environments. Its silver contacts are highly conductive and rust-resistant to ensure a reliable electrical connection. This momentary switch is simple to use as you can simply press the button down to activate it and release it when your process is finished. It has an IP67 rating, so it's protected against dust and submersion in 1m of water for up to 30 minutes. This makes it suitable for use in hygienic areas that require frequent cleaning.
Features & Benefits
• Mounts flush to a panel to prevent accidental actuation
• Small mounting cut-out diameter of 22mm to maximise space on your panel
• Light weight of 18g to reduce strain on your equipment
• Snap-action mechanism for a quick response
• Small mounting cut-out diameter of 22mm to maximise space on your panel
• Light weight of 18g to reduce strain on your equipment
• Snap-action mechanism for a quick response
Applications
• Machine and factory equipment
• Construction machinery
• Audio and video equipment
• Construction machinery
• Audio and video equipment
What's the switching voltage of this push button?
This push button has a switching voltage of 250V AC for use in low-power applications.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 22.3mm |
Mounting Type | Panel Mount |
Push Button Colour | Silver |
Contact Configuration | SPDT |
Voltage Rating | 240V |
Push Button Style | Round |
IP Rating | IP65, IP67 |
Series | 82 |
Push Button Material | Stainless Steel |
Contact Current Rating | 3A |
Contact Material | Silver Alloy |
Manufacturer Part No. | 82-6151.1000 |
Contact AC Voltage Rating | 240V |
Contact DC Voltage Rating | 240V |
Case Colour | Silver |
Operating Temperature Range | -30°C to +70°C |
Terminal Type | Plug In, Solder |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +70°C |
