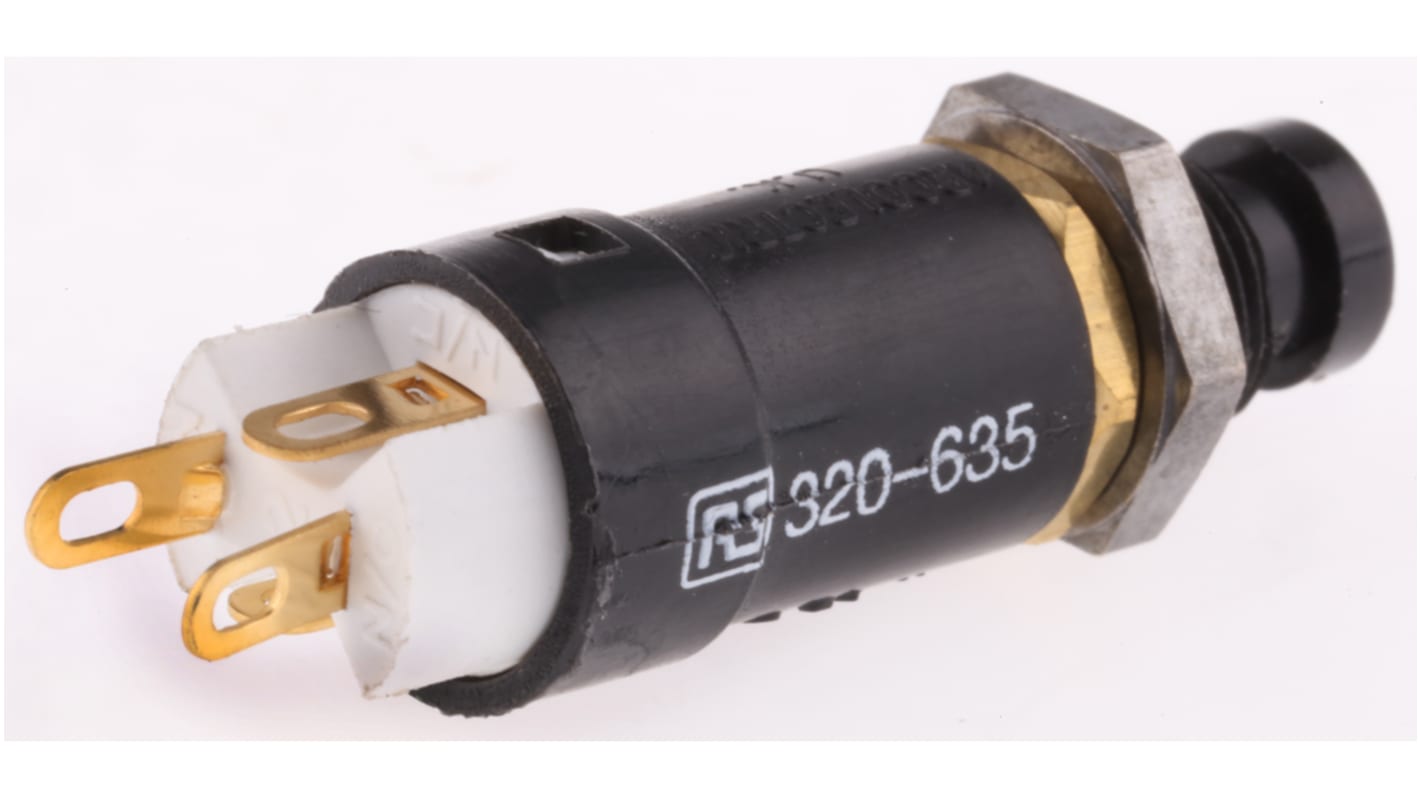

2-pole on-off switch Momentary Miniature Push Button Switch, 7.1mm, Panel Mount

  • RS Stock No. 320-635
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. T0920SOAAD
  • ผู้ผลิต / Manufacturer Arcolectric
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
รายละเอียดสินค้า / Product Details

Arcolectric Miniature Push Button Switches

Momentary action switches with slow make-and-break contacts.
Single hole fixing to clear 7.4mm.
Solder terminals
Contact Material: Gold flashed Ag/Cu Alloy
Contact Rating: 0.5A @ 240Vac

Approvals

7777

คุณสมบัติ / Specifications
คุณสมบัติ Value
Switch Operation Momentary
Mounting Type Panel Mount
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 7.1 (Dia.)mm
Panel Cut Out Diameter 7.1mm
Voltage Rating 250V ac
Contact Current Rating 500 mA @ 250 V ac
Actuator Shape Round
Terminal Type Solder Tab
Actuator Type Push Button
142 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 144.97
(exc. VAT)
THB 155.12
(inc. VAT)
Units
Per unit
1 - 49
THB144.97
50 - 99
THB137.74
100 - 249
THB130.86
250 - 499
THB124.33
500 +
THB118.11
