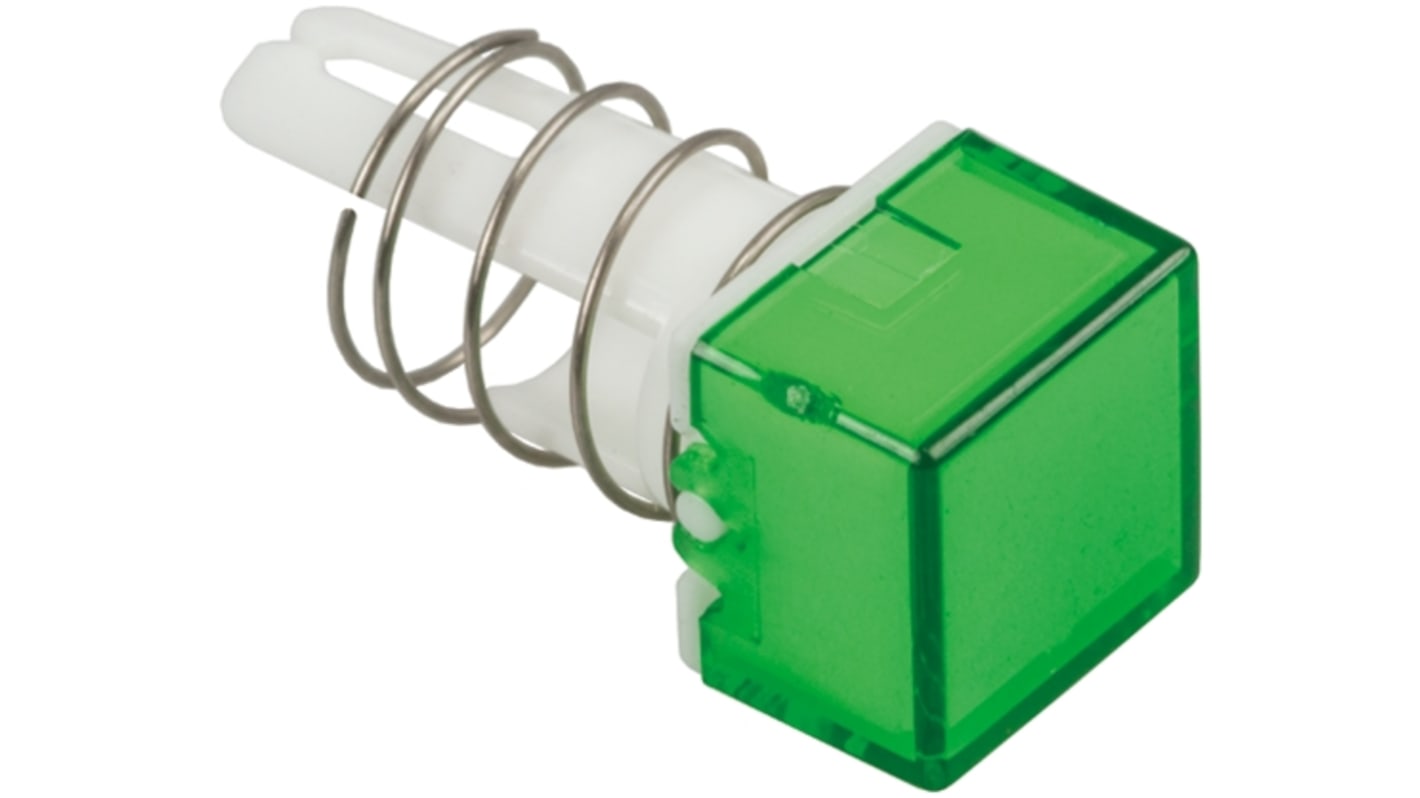

Idec Green Square Push Button Lens for Use with A8 Series

RS Stock No.:: 664-828
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: AL8Q-LK1-G
ผู้ผลิต / Manufacturer:: Idec

Idec Green Square Push Button Lens for Use with A8 Series

10 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each: (In a Pack of 5)

THB151.424

(exc. VAT)

THB162.024

(inc. VAT)

Units	Per unit	Per Pack*
5 - 45	THB151.424	THB757.12
50 - 245	THB145.366	THB726.83
250 - 495	THB139.308	THB696.54
500 +	THB136.28	THB681.40
*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 664-828
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: AL8Q-LK1-G
ผู้ผลิต / Manufacturer:: Idec

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet - A Series Miniature Control Units

Legislation and Compliance

COO (Country of Origin):: JP

รายละเอียดสินค้า / Product Details

8mm Sub-miniature Illuminated Push-button Switches

8mm contact indicators for panel mounting
LED illumination, Suitable LEDs are supplied separately
Indicators are available in both square and round styles
Solder Tab terminals

LEDs

A range of LEDs specifically for use with this sub-miniature indicator series
Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)

Note: When not illuminated, the green LED appears to be yellow.

Lenses

Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc

Note

Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Accessory Type	Lens
For Use With	A8 Series
Lens Colour	Green
Lens Shape	Square
