- RS Stock No.:
- 350-888
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TH593566000
- ผู้ผลิต / Manufacturer:
- Saia-Burgess
353 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB794.85
(exc. VAT)
THB850.49
(inc. VAT)
Units | Per unit |
1 - 24 | THB794.85 |
25 - 49 | THB774.97 |
50 + | THB763.09 |
- RS Stock No.:
- 350-888
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TH593566000
- ผู้ผลิต / Manufacturer:
- Saia-Burgess
Legislation and Compliance
รายละเอียดสินค้า / Product Details

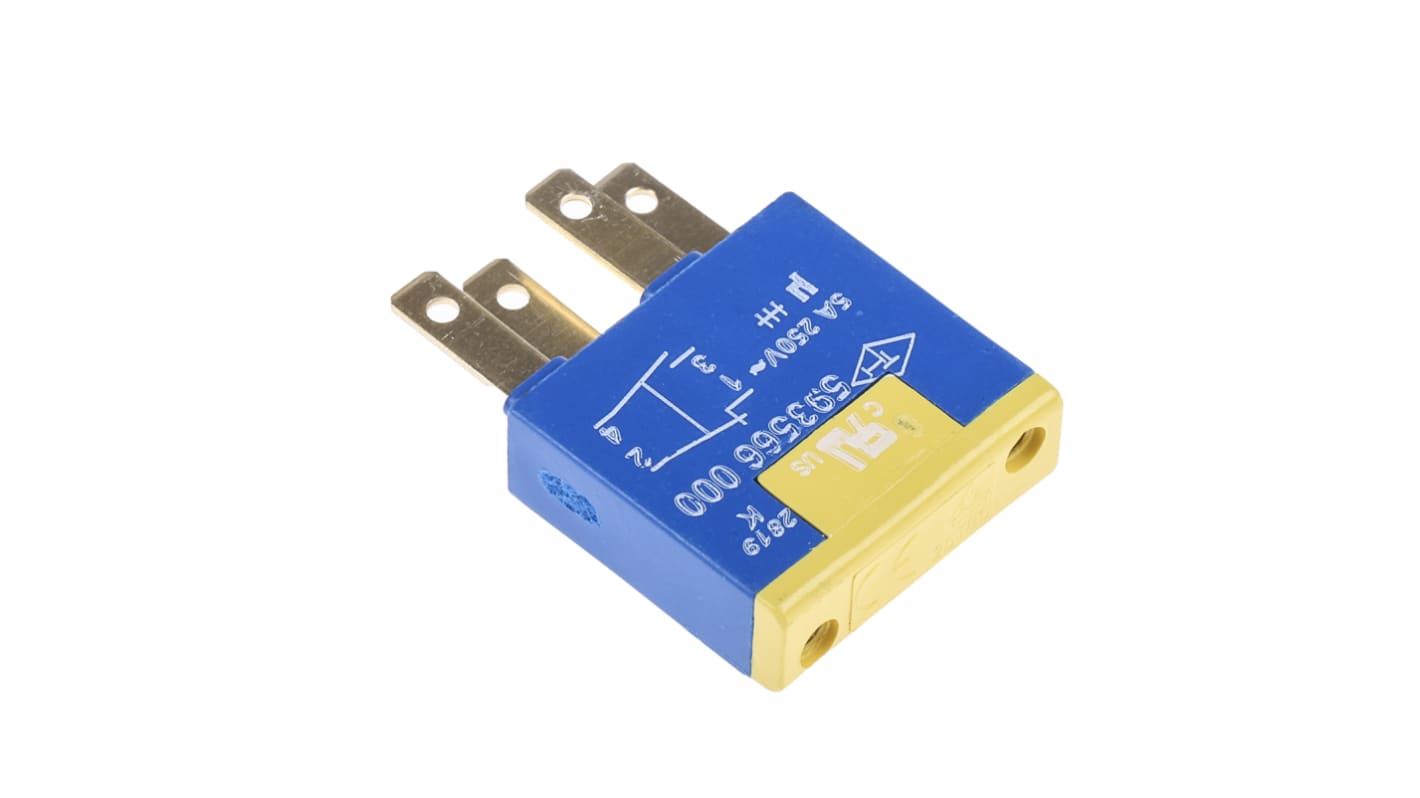

Contact Elements
Self cleaning snap action with dovetailed bodies that slide fit on to the actuators and are locked in place with a quarter turn of the central locking pin on the actuator
Contact rating: 5A @ 250V a.c. (p.f. = 0.7), 4A @ 24V d.c.
Contact resistance: gold < 15mΩ, silver < 8mΩ
Mechanical life: 2 x 105 operations
Electrical life: 104 operations at 250V a.c. (cos Ø = 0.7)
For low current applications, 5 μm gold-plated silver contacts are available
Connections are suitable for either soldering or 2.8 x 0.5mm (0.11in.) Faston connectors
Contact rating: 5A @ 250V a.c. (p.f. = 0.7), 4A @ 24V d.c.
Contact resistance: gold < 15mΩ, silver < 8mΩ
Mechanical life: 2 x 105 operations
Electrical life: 104 operations at 250V a.c. (cos Ø = 0.7)
For low current applications, 5 μm gold-plated silver contacts are available
Connections are suitable for either soldering or 2.8 x 0.5mm (0.11in.) Faston connectors
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Illuminated switches, standard
Range of illuminated panel-mounted switches available in square, rectangular and circular momentary or latching versions. Square or rectangular lamp terminals are also available. Suitable lamps: T5·5, see the Optoelectronics / Indicators section.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Block Type | Contact Block |
Contact Configuration | NO/NC |
For Use With | TK2 Series |
