Altech Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, 90 → 250 V ac, IP67
- RS Stock No.:
- 900-0608
- หมายเลขชิ้นส่วนของผู้ผลิต:
- AIS18N08AW220-2M
- ผู้ผลิต:
- Altech
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 900-0608
- หมายเลขชิ้นส่วนของผู้ผลิต:
- AIS18N08AW220-2M
- ผู้ผลิต:
- Altech
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Altech | |
| Sensor Technology | Inductive | |
| Thread Size | M18 x 1 | |
| Body Style | Barrel | |
| Detection Range | 8 mm | |
| Terminal Type | Cable | |
| IP Rating | IP67 | |
| Supply Voltage | 90 → 250 V ac | |
| Length | 100mm | |
| Maximum AC Voltage | 250V | |
| Mounting Type | Non-Flush | |
| Switching Current | 250 mA | |
| Housing Material | Brass | |
| Shielding | Unshielded | |
| Maximum Switching Frequency | 10Hz | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | IEC 529, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Altech | ||
Sensor Technology Inductive | ||
Thread Size M18 x 1 | ||
Body Style Barrel | ||
Detection Range 8 mm | ||
Terminal Type Cable | ||
IP Rating IP67 | ||
Supply Voltage 90 → 250 V ac | ||
Length 100mm | ||
Maximum AC Voltage 250V | ||
Mounting Type Non-Flush | ||
Switching Current 250 mA | ||
Housing Material Brass | ||
Shielding Unshielded | ||
Maximum Switching Frequency 10Hz | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Standards Met IEC 529, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 | ||
- COO (Country of Origin):
- US

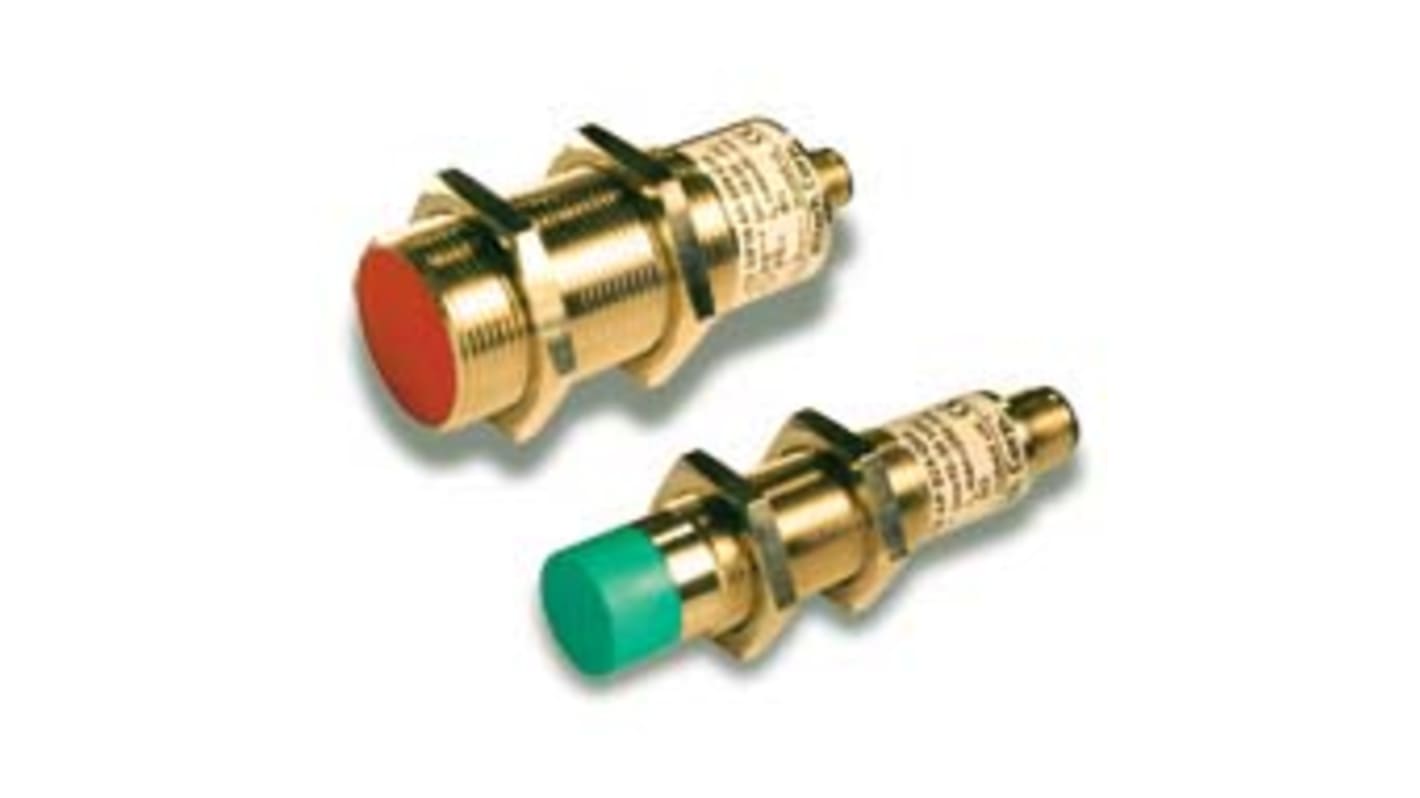

M18 Proximity Sensor
A series of Altech M18 proximity sensors which support transient voltage protection. Available in either PNP or NPN, flush mount or non-flush mount and with either a cable or connector. This particular variety of sensors are sure to provide suitable need for your application. All models are highly reliable and excellent quality.
Altech Proximity Sensors
