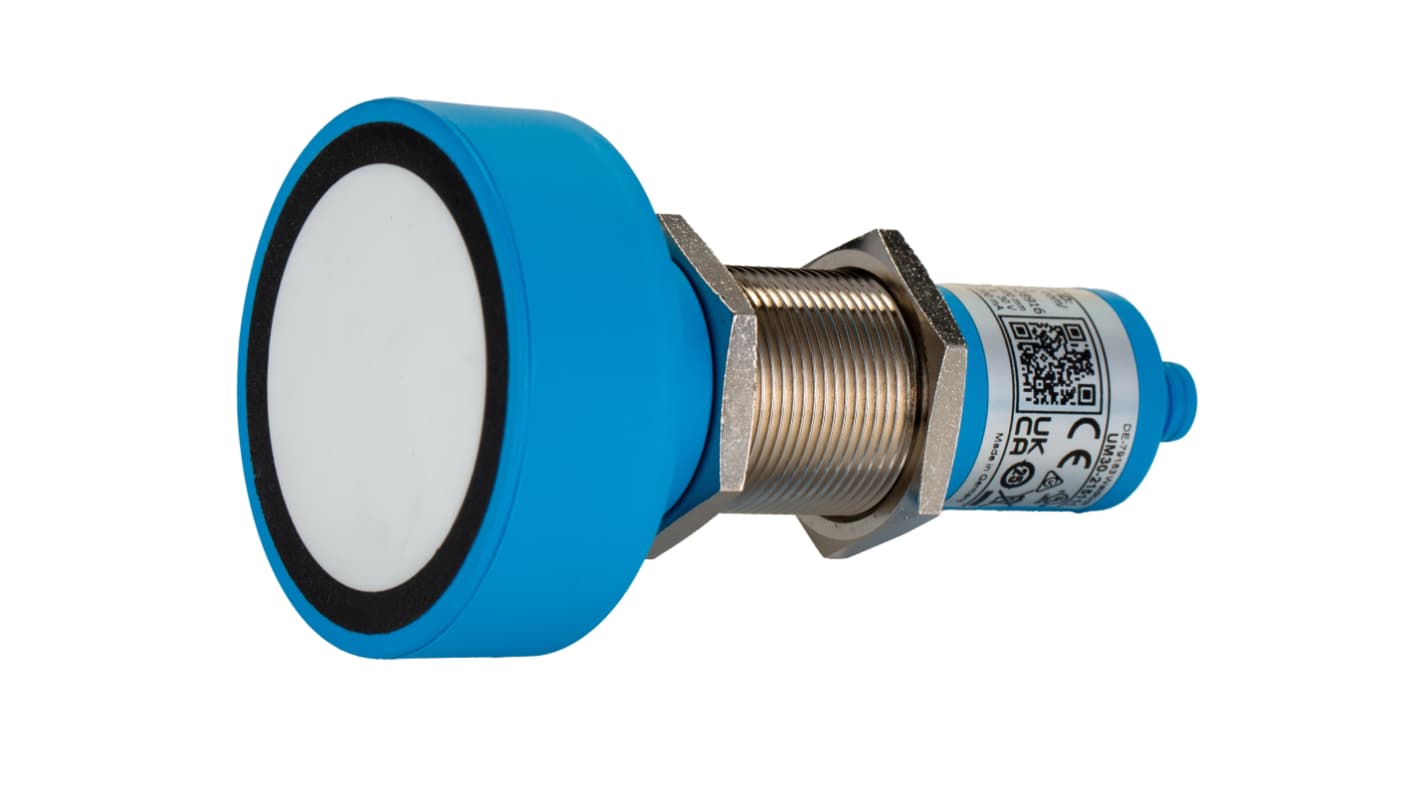

SICK Ultrasonic Threaded Barrel Proximity Sensor, M30, 6 m Detection, PNP NC, 9 → 30 V dc
- RS Stock No.:
- 267-2145
- Distrelec หมายเลขบทความ:
- 303-73-987
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM30-215111
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB15,276.66
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB16,346.03
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 16 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB15,276.66 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 267-2145
- Distrelec หมายเลขบทความ:
- 303-73-987
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM30-215111
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Thread Size | M30 | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 6 m | |
| Body Style | Threaded Barrel | |
| Digital Switching Output Type | PNP | |
| Output Function | NC | |
| Connection Type | M12 | |
| Supply Voltage | 9 → 30 V dc | |
| Length | 105mm | |
| IP Rating | IP65, IP67 | |
| Housing Material | Metal | |
| Width | 65mm | |
| Maximum DC Voltage | 30V | |
| Diameter | 65 mm | |
| Minimum Operating Temperature | -25°C | |
| Depth | 65mm | |
| Short Circuit Overload Protection | Yes | |
| Standards Met | CE, EAC | |
| Series | UM | |
| Switching Frequency | 3 Hz | |
| Reverse Polarity Protection | Yes | |
| Switching Current | 200 mA | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 3Hz | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Thread Size M30 | ||
Sensor Technology Ultrasonic | ||
Detection Range 6 m | ||
Body Style Threaded Barrel | ||
Digital Switching Output Type PNP | ||
Output Function NC | ||
Connection Type M12 | ||
Supply Voltage 9 → 30 V dc | ||
Length 105mm | ||
IP Rating IP65, IP67 | ||
Housing Material Metal | ||
Width 65mm | ||
Maximum DC Voltage 30V | ||
Diameter 65 mm | ||
Minimum Operating Temperature -25°C | ||
Depth 65mm | ||
Short Circuit Overload Protection Yes | ||
Standards Met CE, EAC | ||
Series UM | ||
Switching Frequency 3 Hz | ||
Reverse Polarity Protection Yes | ||
Switching Current 200 mA | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 3Hz | ||
- COO (Country of Origin):
- DE
SICK UM30 Series Proximity Sensor, Ultrasonic Sensor Technology, Detection Range 6 m - UM30-215111
This ultrasonic proximity sensor is a robust and efficient solution for various industrial applications. With a cylindrical M30 threaded barrel design, it measures 105mm in length, 65mm in diameter, and offers reliable performance in detecting natural objects from distances of up to 6m. It is engineered to operate within a substantial temperature range of -25°C to +70°C.
Features & Benefits
• Offers a wide detection range from 600mm to 6,000mm
• Features temperature compensation for improved measurement accuracy
• Designed with robust metal housing for durability
• Incorporates reverse polarity protection for enhanced safety
• Provides a PNP output type for seamless integration
• Rated IP65 and IP67 for reliable performance in challenging environments
• Features temperature compensation for improved measurement accuracy
• Designed with robust metal housing for durability
• Incorporates reverse polarity protection for enhanced safety
• Provides a PNP output type for seamless integration
• Rated IP65 and IP67 for reliable performance in challenging environments
Applications
• Used for distance measurement in automation processes
• Employed in material handling for obstacle detection
• Suitable for level sensing in tanks and silos
• Applicable in various monitoring tasks within harsh environments
• Employed in material handling for obstacle detection
• Suitable for level sensing in tanks and silos
• Applicable in various monitoring tasks within harsh environments
What kind of objects can be detected effectively with this sensor?
It can effectively detect natural objects like bags, boxes, or any solid forms within its detection range, ensuring accurate measurements tailored to the environment’s reflection properties.
How does the temperature compensation feature enhance performance?
The temperature compensation feature adjusts the measurements based on operating conditions, reducing measurement errors caused by temperature fluctuations, which is particularly important in dynamic industrial settings.
What steps are involved in configuring the sensor's operating modes?
The sensor allows for adjustable operating modes, including switching point and background suppression, which can be set via a teach-in process, enabling tailored functionality for specific detection tasks.
