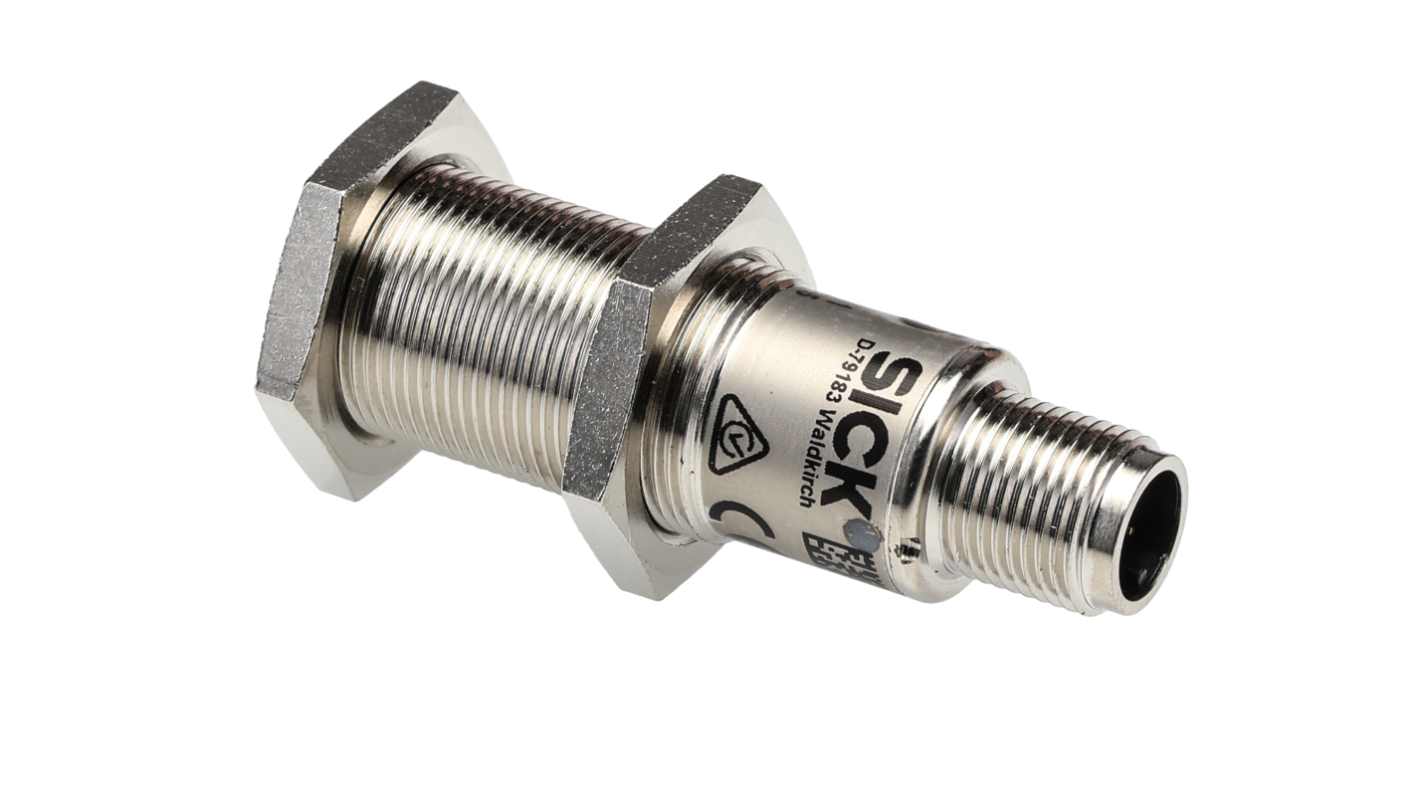

SICK Ultrasonic Threaded Barrel Proximity Sensor, M18, 1 m Detection, PNP/NPN, 10 → 30 V dc
- RS Stock No.:
- 267-2125
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM18-21812E211
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB14,694.87
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB15,723.51
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB14,694.87 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 267-2125
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM18-21812E211
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Thread Size | M18 | |
| Sensor Technology | Ultrasonic | |
| Body Style | Threaded Barrel | |
| Detection Range | 1 m | |
| Digital Switching Output Type | PNP/NPN | |
| Connection Type | M12 | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 58.2mm | |
| IP Rating | IP65, IP67 | |
| Width | 18mm | |
| Housing Material | Metal | |
| Maximum DC Voltage | 30V | |
| Diameter | 18 mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Switching Frequency | 10Hz | |
| Reverse Polarity Protection | Yes | |
| Switching Frequency | 10 Hz | |
| Series | UM | |
| Standards Met | CE, EAC | |
| Switching Current | 100 mA | |
| Maximum Operating Temperature | +70°C | |
| Depth | 18mm | |
| Short Circuit Overload Protection | Yes | |
| Communication Protocol | IO-LINK | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Thread Size M18 | ||
Sensor Technology Ultrasonic | ||
Body Style Threaded Barrel | ||
Detection Range 1 m | ||
Digital Switching Output Type PNP/NPN | ||
Connection Type M12 | ||
Supply Voltage 10 → 30 V dc | ||
Length 58.2mm | ||
IP Rating IP65, IP67 | ||
Width 18mm | ||
Housing Material Metal | ||
Maximum DC Voltage 30V | ||
Diameter 18 mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Switching Frequency 10Hz | ||
Reverse Polarity Protection Yes | ||
Switching Frequency 10 Hz | ||
Series UM | ||
Standards Met CE, EAC | ||
Switching Current 100 mA | ||
Maximum Operating Temperature +70°C | ||
Depth 18mm | ||
Short Circuit Overload Protection Yes | ||
Communication Protocol IO-LINK | ||
- COO (Country of Origin):
- DE
SICK UM18 Series Proximity Sensor, Ultrasonic Sensor Technology, 1 m Detection Range - UM18-21812E211
This proximity sensor is an ultrasonic sensing device designed for various industrial applications. Characterised by its threaded barrel design and robust metal housing, this sensor measures 58.2mm in length and 18mm in diameter. It operates within a detection range of up to 1m, making it suitable for a range of automation and control tasks.
Features & Benefits
• Ultrasonic technology ensures accurate distance measurement
• PNP/NPN switching output type simplifies integration into systems
• IP65/IP67 rating provides protection in harsh environments
• Wide supply voltage range enhances compatibility with different systems
• Temperature compensation stabilises performance across varying conditions
• Quick response time of 80 ms improves operational efficiency
• PNP/NPN switching output type simplifies integration into systems
• IP65/IP67 rating provides protection in harsh environments
• Wide supply voltage range enhances compatibility with different systems
• Temperature compensation stabilises performance across varying conditions
• Quick response time of 80 ms improves operational efficiency
Applications
• Utilised in material handling for precise positioning
• Implementation in automatic packaging machinery for distance measurement
• Employed in robotics for obstacle detection
• Integrated into conveyor systems to monitor product spacing
• Implementation in automatic packaging machinery for distance measurement
• Employed in robotics for obstacle detection
• Integrated into conveyor systems to monitor product spacing
How does temperature affect the functionality of this sensor?
It operates effectively across a wide temperature range from -25 °C to +70 °C, maintaining accuracy with temperature compensation features to mitigate fluctuations.
What are the advantages of using a metal housing for this sensor?
The metal housing provides durability and robust protection against physical impacts and environmental factors, ensuring a longer lifespan in demanding applications.
Can multiple sensors be used in proximity without interference?
Yes, the functionality supports synchronisation with up to 20 sensors, allowing for multiplexing without crosstalk, ideal for dense installations.
