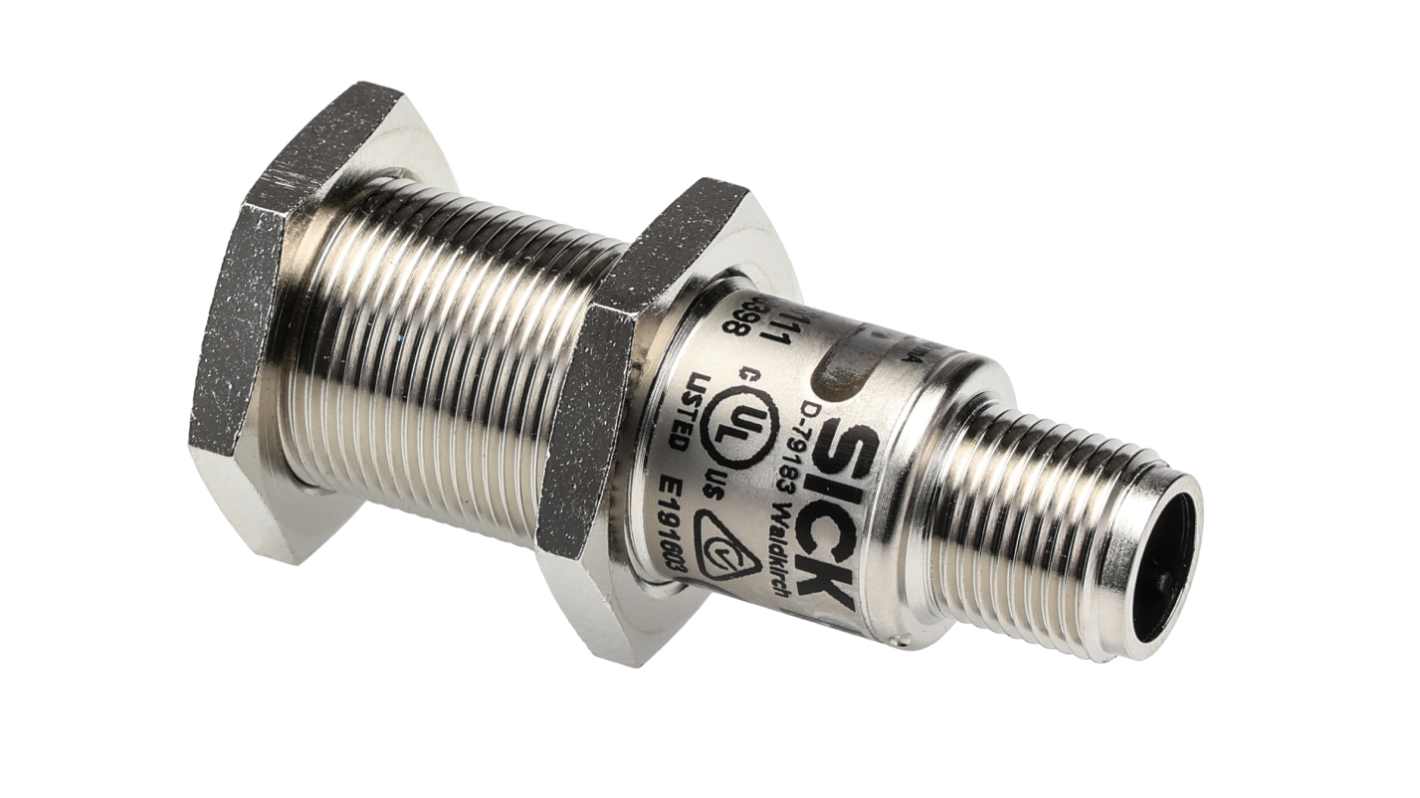

SICK Ultrasonic Threaded Barrel Proximity Sensor, M18, 350 mm Detection 4-20 mA, 10 → 30 V dc
- RS Stock No.:
- 267-2105
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM18-212126111
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB15,227.95
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB16,293.91
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB15,227.95 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 267-2105
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- UM18-212126111
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Thread Size | M18 | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 350 mm | |
| Body Style | Threaded Barrel | |
| Analogue Switching Output Type | 4-20 mA | |
| Connection Type | M12 | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP65, IP67 | |
| Length | 52.7mm | |
| Width | 18mm | |
| Housing Material | Metal | |
| Maximum DC Voltage | 30V | |
| Diameter | 18 mm | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | CE, cULus, EAC | |
| Reverse Polarity Protection | Yes | |
| Maximum Operating Temperature | +70°C | |
| Series | UM | |
| Short Circuit Overload Protection | Yes | |
| Depth | 18mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Thread Size M18 | ||
Sensor Technology Ultrasonic | ||
Detection Range 350 mm | ||
Body Style Threaded Barrel | ||
Analogue Switching Output Type 4-20 mA | ||
Connection Type M12 | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP65, IP67 | ||
Length 52.7mm | ||
Width 18mm | ||
Housing Material Metal | ||
Maximum DC Voltage 30V | ||
Diameter 18 mm | ||
Minimum Operating Temperature -25°C | ||
Standards Met CE, cULus, EAC | ||
Reverse Polarity Protection Yes | ||
Maximum Operating Temperature +70°C | ||
Series UM | ||
Short Circuit Overload Protection Yes | ||
Depth 18mm | ||
- COO (Country of Origin):
- DE
SICK UM18 Series Proximity Sensor, Ultrasonic Sensor Technology, 350mm Detection Range - UM18-212126111
This proximity sensor is designed for precise distance measurement in industrial applications. Featuring a compact design with dimensions of 18mm in diameter and 52.7mm in length, this ultrasonic sensor utilises a threaded barrel style for secure mounting. Capable of detecting objects up to 350mm away, it ensures reliable performance even in challenging conditions.
Features & Benefits
• Ultrasonic technology delivers accurate distance measurements
• 4-20 mA output ensures compatibility with various systems
• Robust metal housing provides durability in industrial environments
• IP65/IP67 rating protects against dust and water ingress
• Wide operating temperature range from -25 °C to +70 °C
• Reverse polarity protection enhances reliability and safety
• 4-20 mA output ensures compatibility with various systems
• Robust metal housing provides durability in industrial environments
• IP65/IP67 rating protects against dust and water ingress
• Wide operating temperature range from -25 °C to +70 °C
• Reverse polarity protection enhances reliability and safety
Applications
• Used with automated machinery for precise object detection
• Ideal for requiring distance measurement in harsh environments
• Utilised in inventory management systems to measure object proximity
• Perfect for use in packaging solutions requiring reliable measurement
• Employed in safety systems to detect potential hazards
• Ideal for requiring distance measurement in harsh environments
• Utilised in inventory management systems to measure object proximity
• Perfect for use in packaging solutions requiring reliable measurement
• Employed in safety systems to detect potential hazards
What are the precision and accuracy specifications for this sensor?
The sensor offers a measurement accuracy of ±1% and a resolution of ≥0.069mm, ensuring precise detection for various applications.
How does the reverse polarity protection enhance operational safety?
This feature safeguards the sensor against damage caused by incorrect power supply connections, ensuring continuous functionality in operational settings.
What types of targets can this ultrasonic sensor effectively detect?
It is designed to detect natural objects, which include a variety of surfaces and materials, making it versatile for numerous applications.
Is temperature compensation available to maintain performance?
Yes, temperature compensation is integrated into the sensor, helping to maintain accurate readings across varying environmental conditions.
How does the M12 connection type support integration into existing systems?
The M12 connection simplifies installation and ensures compatibility with standard industrial wiring, facilitating hassle-free integration into automation systems.
Note
