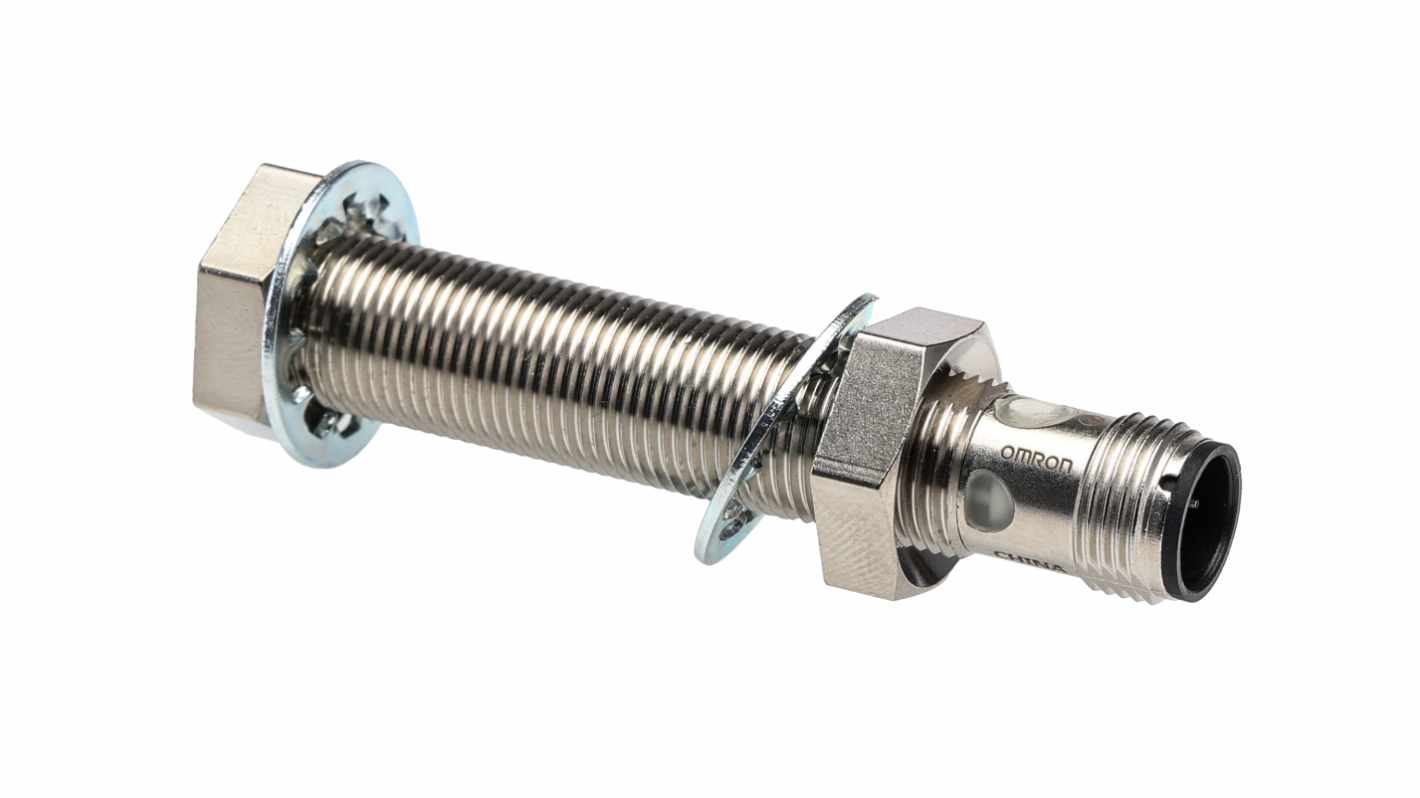

Omron Inductive Threaded Barrel Proximity Sensor, M12, 9 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 188-9125
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: E2E-X9B1TL12-M1
ผู้ผลิต:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M12, 9 mm Detection, PNP NO, 10 → 30 V dc

ยอดรวมย่อย (1 ชิ้น)*

THB2,416.83

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,586.01

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

ชิ้น	ต่อหน่วย
1 +	THB2,416.83

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 188-9125
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: E2E-X9B1TL12-M1
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Thread Size	M12
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	9 mm
	Output Function	NO
	Digital Switching Output Type	PNP
	Connection Type	M12
	Supply Voltage	10 → 30 V dc
	Length	70mm
	IP Rating	IP67/IP69K
	Mounting Type	Quasi-Flush
	Width	12mm
	Housing Material	Brass, Nickel Plated
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Series	E2E-NEXT
	Communication Protocol	IO-LINK
	Switching Current	16 mA
	Maximum Switching Frequency	700Hz
	Reverse Polarity Protection	Yes
	Short Circuit Overload Protection	Yes
	Shielding	Shielded
	Depth	17mm
	Switching Frequency	700 Hz

	เลือกทั้งหมด
	Brand Omron
	Thread Size M12
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 9 mm
	Output Function NO
	Digital Switching Output Type PNP
	Connection Type M12
	Supply Voltage 10 → 30 V dc
	Length 70mm
	IP Rating IP67/IP69K
	Mounting Type Quasi-Flush
	Width 12mm
	Housing Material Brass, Nickel Plated
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Series E2E-NEXT
	Communication Protocol IO-LINK
	Switching Current 16 mA
	Maximum Switching Frequency 700Hz
	Reverse Polarity Protection Yes
	Short Circuit Overload Protection Yes
	Shielding Shielded
	Depth 17mm
	Switching Frequency 700 Hz

Omron E2E-NEXT Series Proximity Sensor, 9mm Detection Range, PNP Output - E2E-X9B1TL12-M1

This proximity sensor is an inductive model designed for various automation applications. With a dimension of 70mm in length and M12 thread size, it offers a detection range of 9 mm. The robust IP67/IP69K rated enclosure ensures reliable performance in challenging environments.

Features & Benefits

• Offers a 9mm detection range for precise sensing
• IP67/IP69K rated for protection against dust and moisture
• Utilises PNP output for effective signal processing
• Supports IO-Link for smart factory integration
• Quasi-flush mounting designed for adaptable installation
• Brass housing enhances durability and resistance to wear

Applications

• Used for detecting metal objects in machinery
• Suitable for assembly line automation
• Employed in packaging and conveying systems
• Ideal for use in harsh industrial environments

What type of output does this sensor provide and what advantages does it offer?

The sensor features a PNP output, which is suitable for sourcing current to connected devices. This output type ensures efficient signal transmission and compatibility with various control systems, enhancing operational efficiency.

What are the environmental durability features of this sensor?

The sensor is rated IP67/IP69K, which signifies its high resistance to dust and water ingress. This makes it suitable for demanding applications where exposure to moisture or particulate contamination is a concern.

How does the sensor support predictive maintenance in industrial settings?

The integration of IO-Link technology allows for real-time data monitoring and diagnostics. This feature enables early detection of issues, facilitating maintenance scheduling and reducing unexpected downtime.
