- RS Stock No.:
- 773-7116
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- YRMCKITRL78G14
- ผู้ผลิต / Manufacturer:
- Renesas Electronics
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
- RS Stock No.:
- 773-7116
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- YRMCKITRL78G14
- ผู้ผลิต / Manufacturer:
- Renesas Electronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details

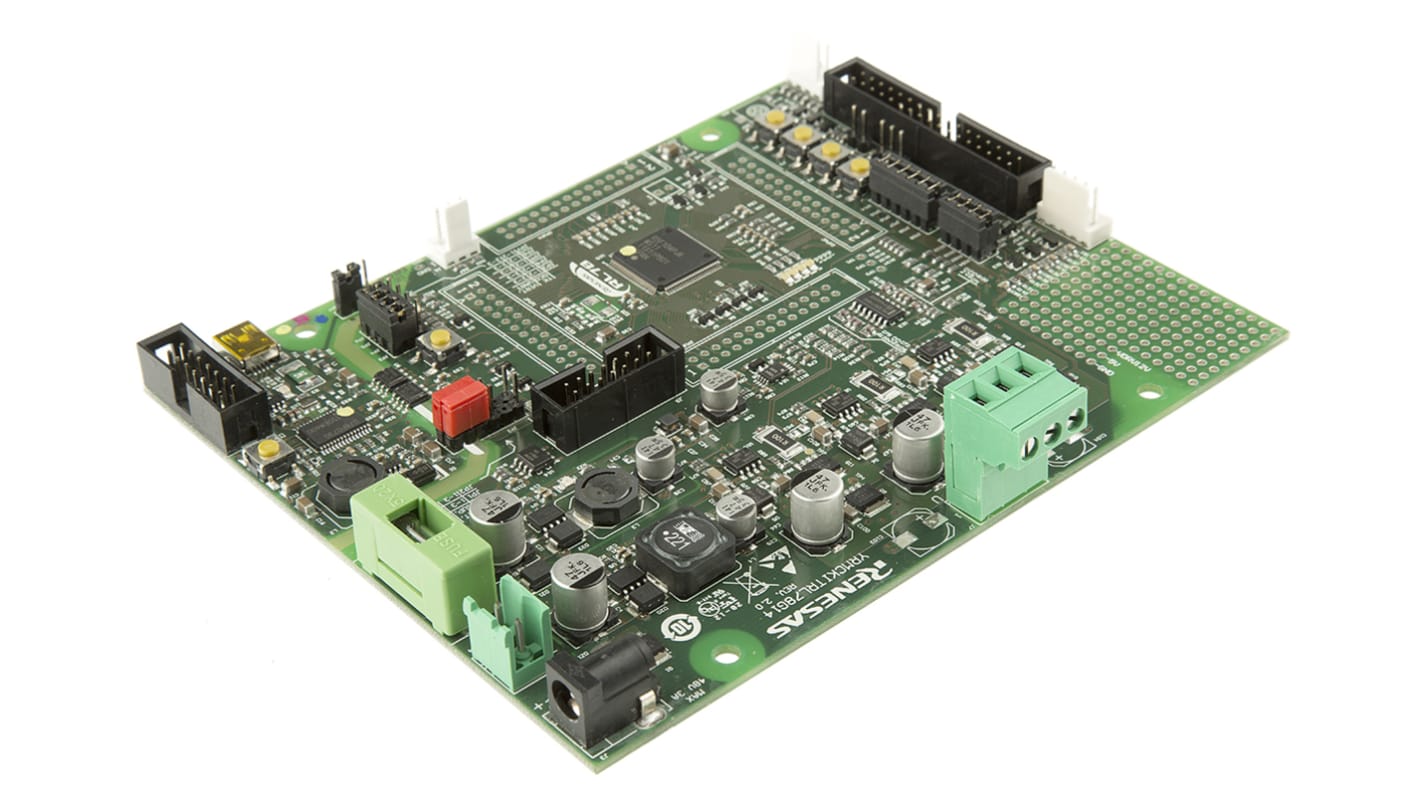

RL78/G14 Motor Control Demonstration kit
This platform drives a 3-phase Permanent Magnet Synchronous Motor (BLDC motor) by using an advanced sensor-less Field Oriented Control algorithm. The phase current measurement is done via three shunts which offer a very low-cost solution avoiding expensive current sensors. The main focus applications for this type of algorithm are compressors, air conditioning, fans, and so on. The platform allows for easy custom application development by including a small motor and a user-friendly PC graphical user interface.
Powered from the USB interface or via an external power supply
An external power driver stage can be added to control higher power motors
An external power driver stage can be added to control higher power motors
Supplied with
BLDC motor, USB cable, Documentation on CD.
RL78 Family Microcontrollers, Renesas Electronics
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
For Use With | RL78 |
Kit Classification | Starter Kit |
Kit Name | Motor Control Demonstration Kit |
