    Maxim Integrated MAX5996C Evaluation Kit Power Management for MAX5996 for MAX5996C

    Maxim Integrated
    RS Stock No.:
    234-1885
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    MAX5996CEVKIT#
    ผู้ผลิต / Manufacturer:
    Maxim Integrated
    ดูหมวดหมู่นี้
    3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    THB5,213.67

    (exc. VAT)

    THB5,578.63

    (inc. VAT)

    UnitsPer unit
    1 +THB5,213.67
    RS Stock No.:
    234-1885
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    MAX5996CEVKIT#
    ผู้ผลิต / Manufacturer:
    Maxim Integrated

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance


    รายละเอียดสินค้า / Product Details

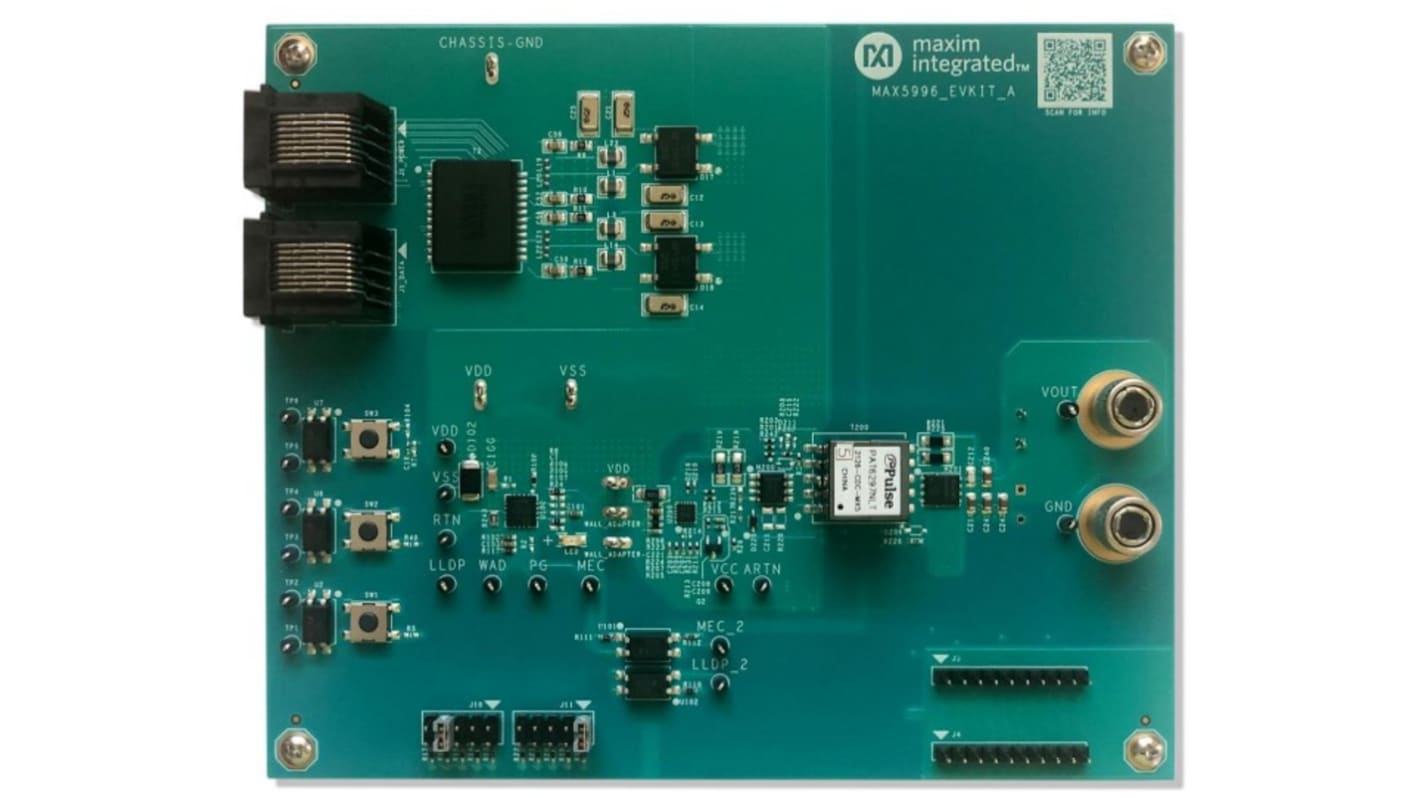

    The Maxim Integrated evaluation kit is a fully assembled and tested surface-mount circuit board featuring an Ethernet port, network powered-device (PD) interface controller circuit for -57 V supply rail systems. The EV kit uses the MAX5996C IEEE® 802.3af/at/bt-compliant network PD interface controller in a 16-pin TQFN package with an exposed pad. The IC is used in Power-over-Ethernet (PoE) applications requiring DC power from an Ethernet network port for PDs such as VoIP phones, wireless access nodes, security cameras, lighting, and building automation.

    Multi-event classification 0-8
    -36 V to -57 V input range
    Demonstrates a 51 W PD design with isolated flyback DC-DC converter
    +12 V output at 5.5 A
    Start-up inrush current limit of 135 mA
    Power telemetry through MEC
    Power/current limiting
    LLDP reclassification
    Current limit during normal operation

    LLDP reclassification
    Current limit during normal operation
    Evaluates end span and midspan Ethernet systems
    Type 1-4 PSE classification indicator
    Simplified wall adapter interface
    Demonstrates sleep and ultra-sleep
    Power-saving modes
    Proven PCB layout
    Fully assembled and tested

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Power Management FunctionPower Management
    For Use WithMAX5996C
    Kit ClassificationEvaluation Kit
    Featured DeviceMAX5996
    Kit NameMAX5996C Evaluation Kit
