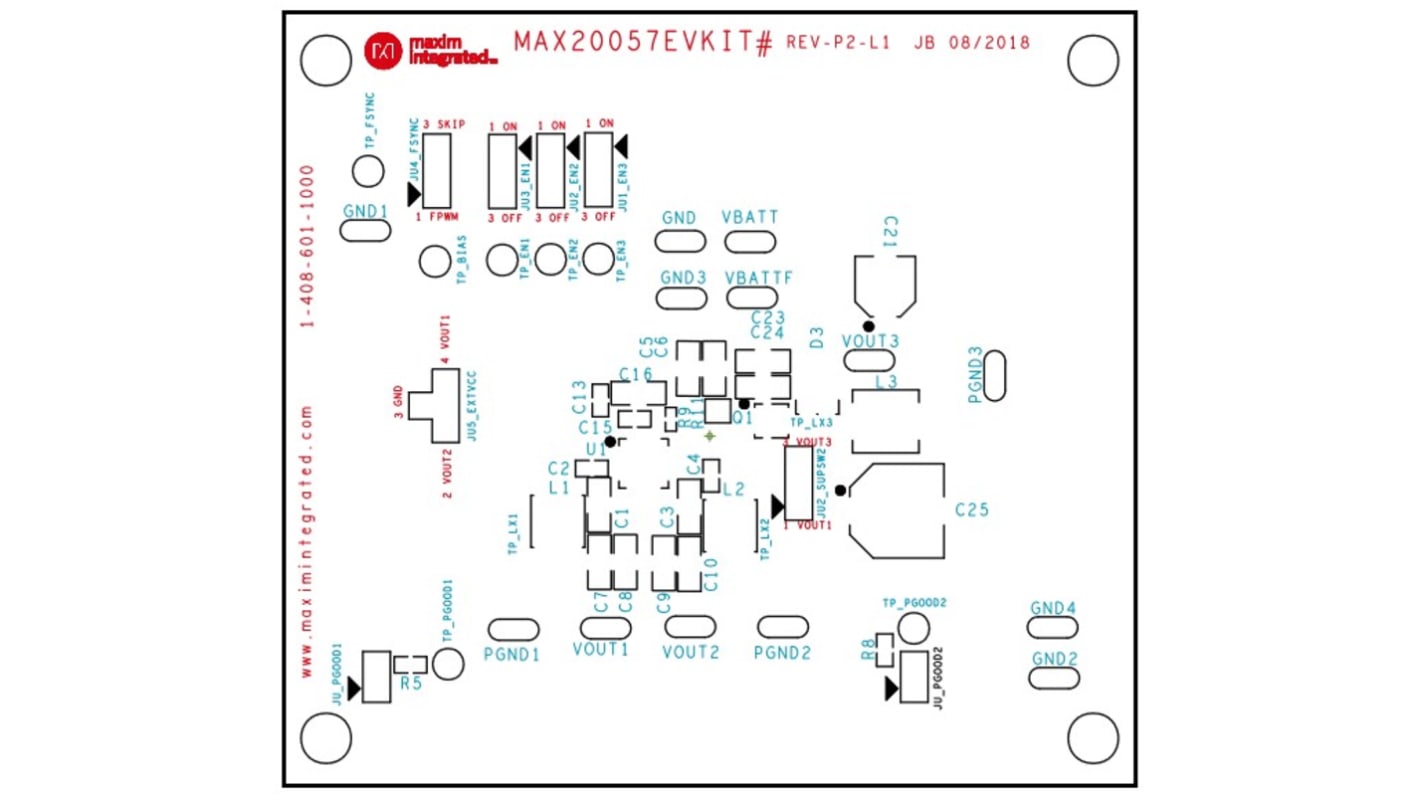

Maxim Integrated MAX20057 Evaluation Kit for MAX20057 for MAX20057

The Maxim Integrated MAX20057 evaluation kit (EV kit) is a fully assembled and tested application circuit that simplifies the evaluation of the MAX20057 400kHz/2.1MHz, 36V boost controller and dual buck converters.

Asynchronous boost controller
3.5V to 40V input supply range
Selectable buck2 input source
Frequency-synchronization input
Independent enable inputs
Proven PCB layout
Fully assembled and tested
