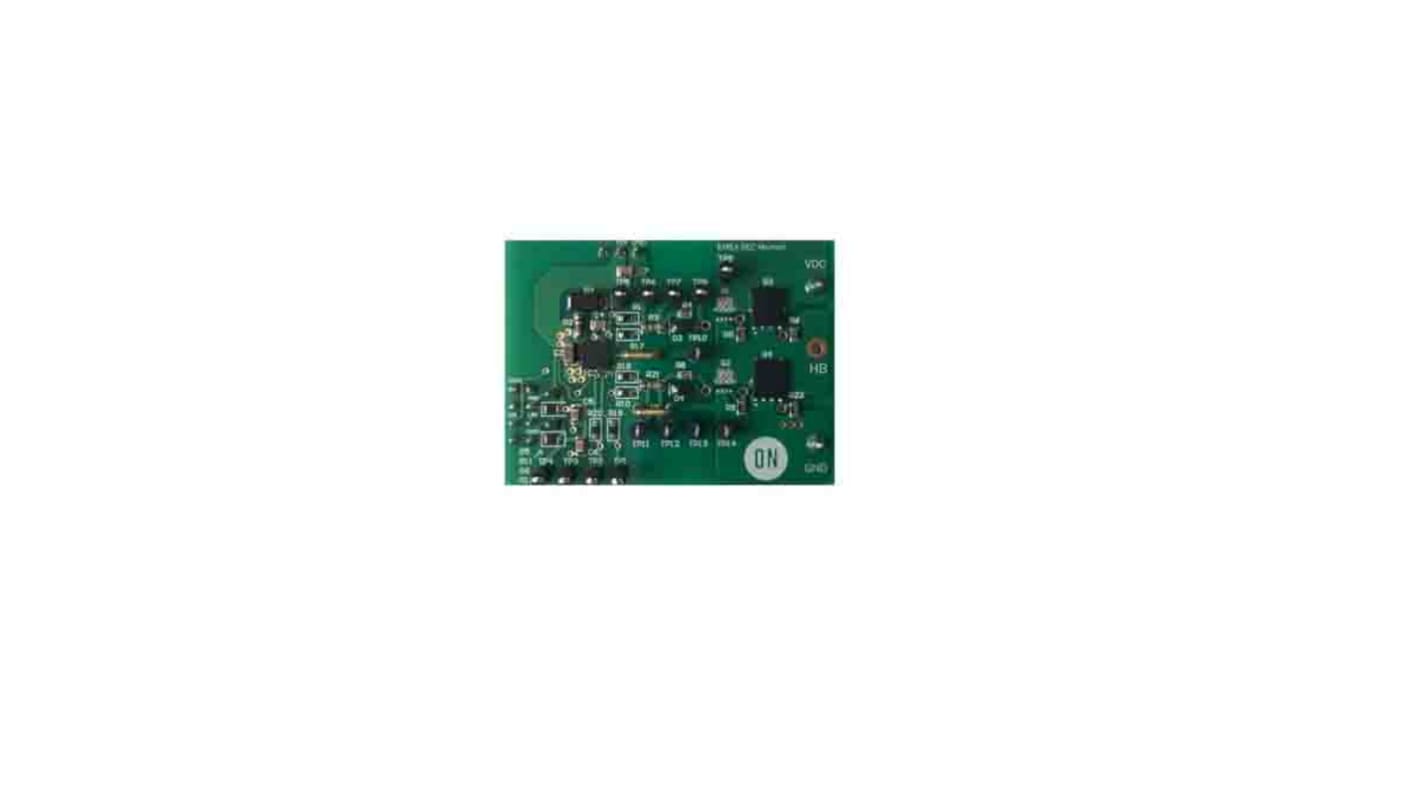

onsemi SECO-NCP51530HB-GEVB Evaluation Board Power Supply for NCP51530 High/Low Side Gate Driver for SECO-GDBB-EVB
- RS Stock No.:
- 205-2463
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SECO-NCP51530HB-GEVB
- ผู้ผลิต / Manufacturer:
- onsemi
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 23/04/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB2,762.90
(exc. VAT)
THB2,956.30
(inc. VAT)
Units | Per unit |
1 + | THB2,762.90 |
- RS Stock No.:
- 205-2463
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SECO-NCP51530HB-GEVB
- ผู้ผลิต / Manufacturer:
- onsemi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The ON Semiconductor evaluation board is a part of system level support for applications in which high voltage (half bridge) gate driver is required. Its purpose is to simplify and accelerate design phase of switching parts (gate driver + power device) in application. This is able to adjust gate resistances, bootstrap circuit and dead time and to monitor switching behaviour. This daughter card is compatible with the gate drivers baseboard, which allows testing up to 3 half bridge daughter cards simultaneously and comparing performances.
High/Low Side Gate Driver
2 Different MOSFET packages
Adjustable gate resistance
Adjustable dead time (Through External Resistors and Capacitor)
Adjustable bootstrap
Gate current and gate voltage measurement
Interface to Baseboard (Plug and Play)
2 Different MOSFET packages
Adjustable gate resistance
Adjustable dead time (Through External Resistors and Capacitor)
Adjustable bootstrap
Gate current and gate voltage measurement
Interface to Baseboard (Plug and Play)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Power Management Function | Power Supply |
For Use With | SECO-GDBB-EVB |
Kit Classification | Evaluation Board |
Featured Device | NCP51530 High/Low Side Gate Driver |
Kit Name | SECO-NCP51530HB-GEVB Evaluation Board |
