STMicroelectronics Evaluation Board for STBB2 for Switched Mode Power Supply

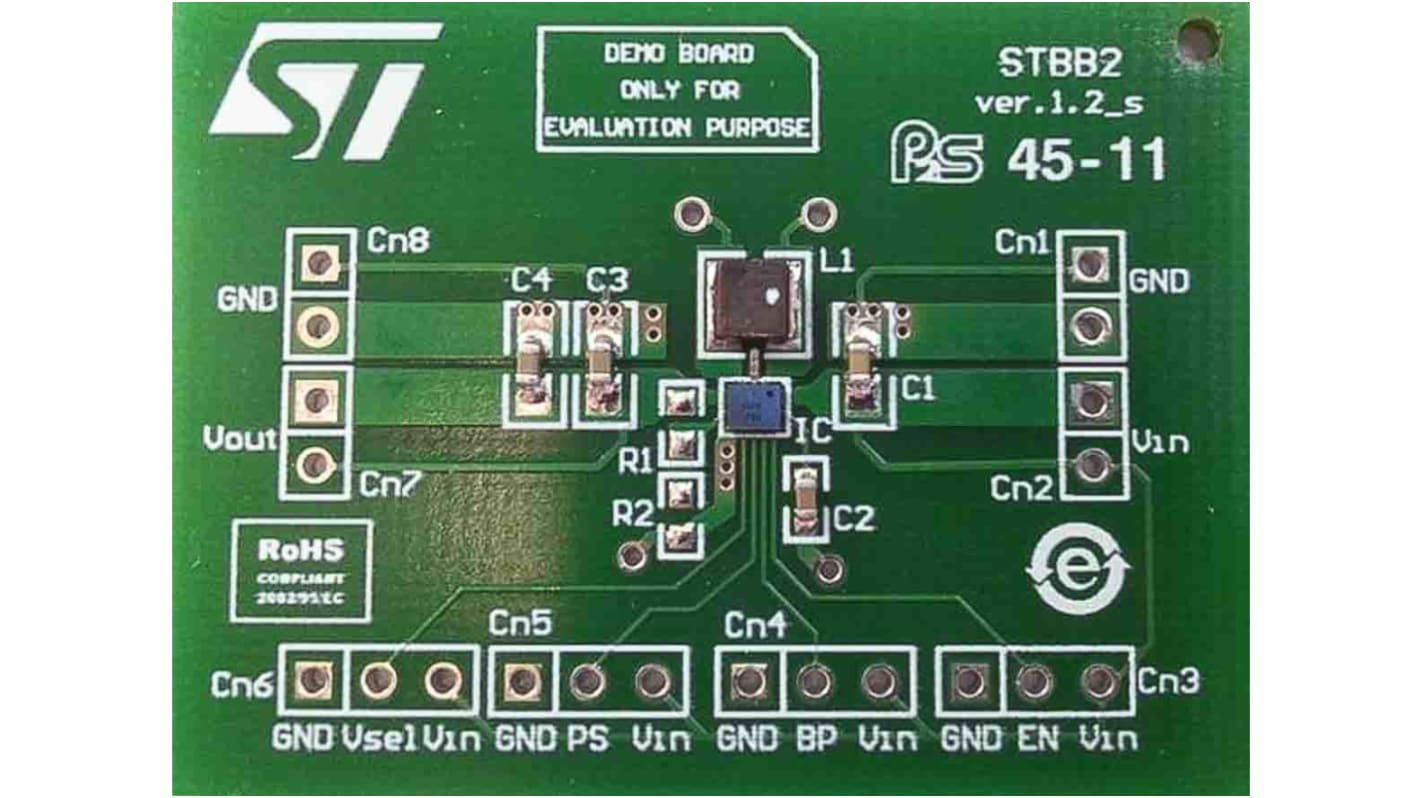

The STEVAL-ISA109V2 is designed to aid in the evaluation of the STBB2, a high efficiency buck-boost DC-DC converter capable of providing regulated output voltages in the range of 1.2 V to 5.5 V with an input voltage between 2.3 V and 5.5 V. The board comes with the adjustable version of the STBB2 pre-mounted, with the output voltage set to 3.3 V. For this version, the VSELpin must be connected to VIN.
The board can also demonstrate the performance of the fixed version of the STBB2, by replacing R1with a 0 Ω resistor and disconnecting R2.

Input voltage: from 2.3 V to 5.5 V
Output voltage: 3.3 V
Output current: 800 mA
Operating frequency: 3 MHz
