Infineon EVAL ISO 4DIR1400H Evaluation Board for EVAL_ISO_4DIR1400H for Infineon ISOFACE Quad-Channel Digital Isolators
- RS Stock No.:
- 179-942
- หมายเลขชิ้นส่วนของผู้ผลิต:
- EVALISO4DIR1400HTOBO1
- ผู้ผลิต:
- Infineon
ยอดรวมย่อย (1 ชิ้น)*
THB2,545.65
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,723.85
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 5 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,545.65 |
*price indicative
- RS Stock No.:
- 179-942
- หมายเลขชิ้นส่วนของผู้ผลิต:
- EVALISO4DIR1400HTOBO1
- ผู้ผลิต:
- Infineon
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Infineon | |
| Power Management Function | Evaluation Board | |
| Product Type | Evaluation Board | |
| For Use With | Infineon ISOFACE Quad-Channel Digital Isolators | |
| Kit Classification | Evaluation Board | |
| Featured Device | EVAL_ISO_4DIR1400H | |
| Kit Name | EVAL ISO 4DIR1400H | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Infineon | ||
Power Management Function Evaluation Board | ||
Product Type Evaluation Board | ||
For Use With Infineon ISOFACE Quad-Channel Digital Isolators | ||
Kit Classification Evaluation Board | ||
Featured Device EVAL_ISO_4DIR1400H | ||
Kit Name EVAL ISO 4DIR1400H | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE

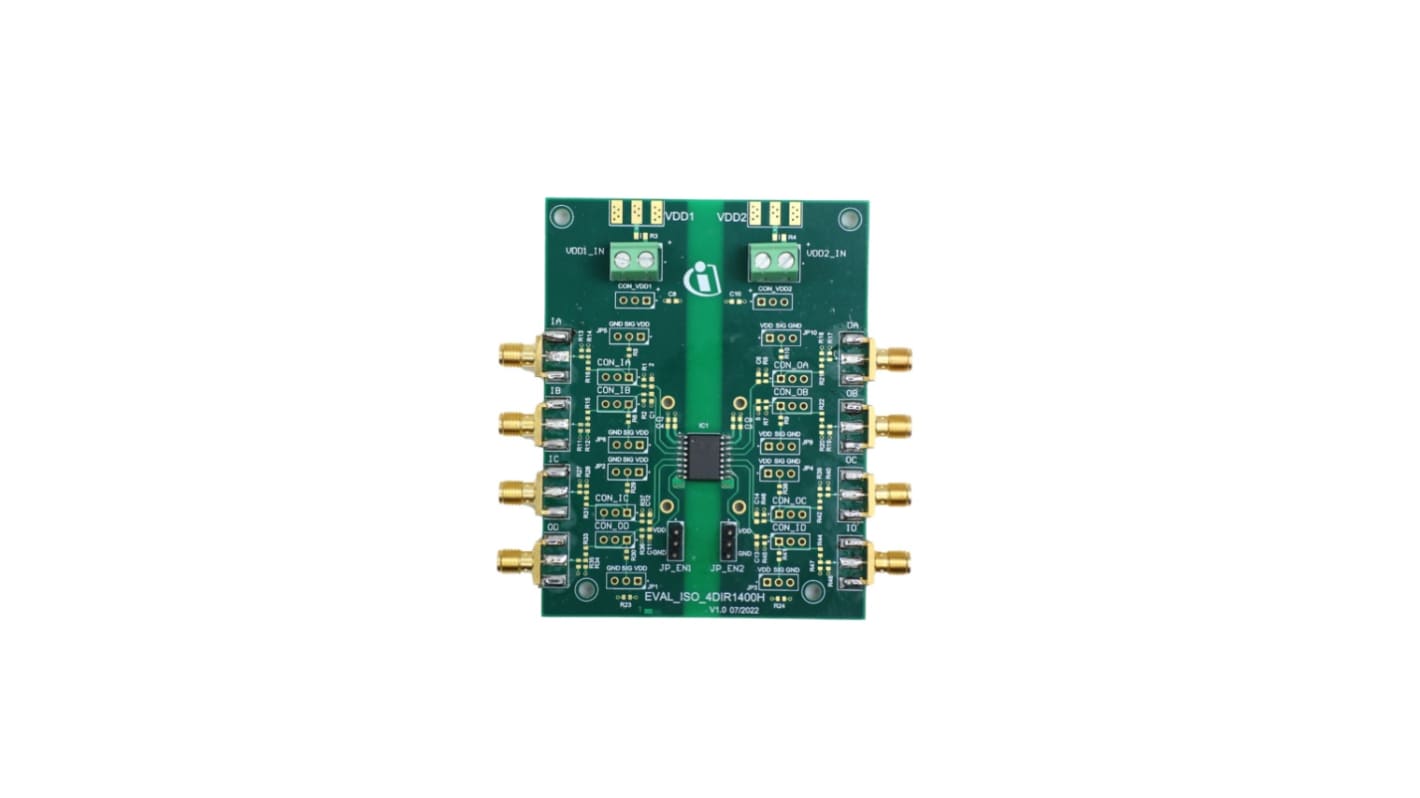

Infineon Evaluation board, Quad-Channel Digital Isolators Compatibility, Power Management Function - EVALISO4DIR1400HTOBO1
This evaluation board is designed for use with ISOFACE quad-channel digital isolators, providing a comprehensive platform for testing and analysis. Equipped with a four-layer PCB and complex signal routing, it ensures high-speed digital isolation. The board facilitates seamless integration into high-voltage applications, enhancing electrical noise immunity and safety in use.
Features & Benefits
• Designed for high EMC performance with robust shielding
• Integrates digital isolator for reliable high-voltage usage
• Configurable for input/output connections to meet various needs
• Allows easy connection of external probes for monitoring
• Enables customised signal configuration for versatile testing
Applications
• Effective in isolated SPI communication setups
• Utilised for high-side floating PWM signal transfer
• Suitable for AC-DC converter testing in power supply systems
• Ideal for evaluating various digital isolator configurations
How does the board support high-speed data rates?
The four-layer PCB design is optimised with dedicated signal and ground layers, significantly reducing electromagnetic interference and allowing for stable data transmission at speeds of up to 40Mbit/s.
What configurations can be adjusted for signal connections?
Each input and output connection can be individually configured with pull-up and pull-down resistors, as well as options for filtering capacitors, allowing for tailored performance in specific applications.
Can the board handle high-voltage applications?
Yes, it is designed in compliance with reinforced isolation practices of up to 5700V RMS, making it suitable for high-voltage applications while ensuring user safety during operation.
What power supply requirements does the board have?
It operates with dual power supplies, providing a voltage range of 2.7 to 6.5V across its two sides, ensuring compatibility with various isolator configurations.
