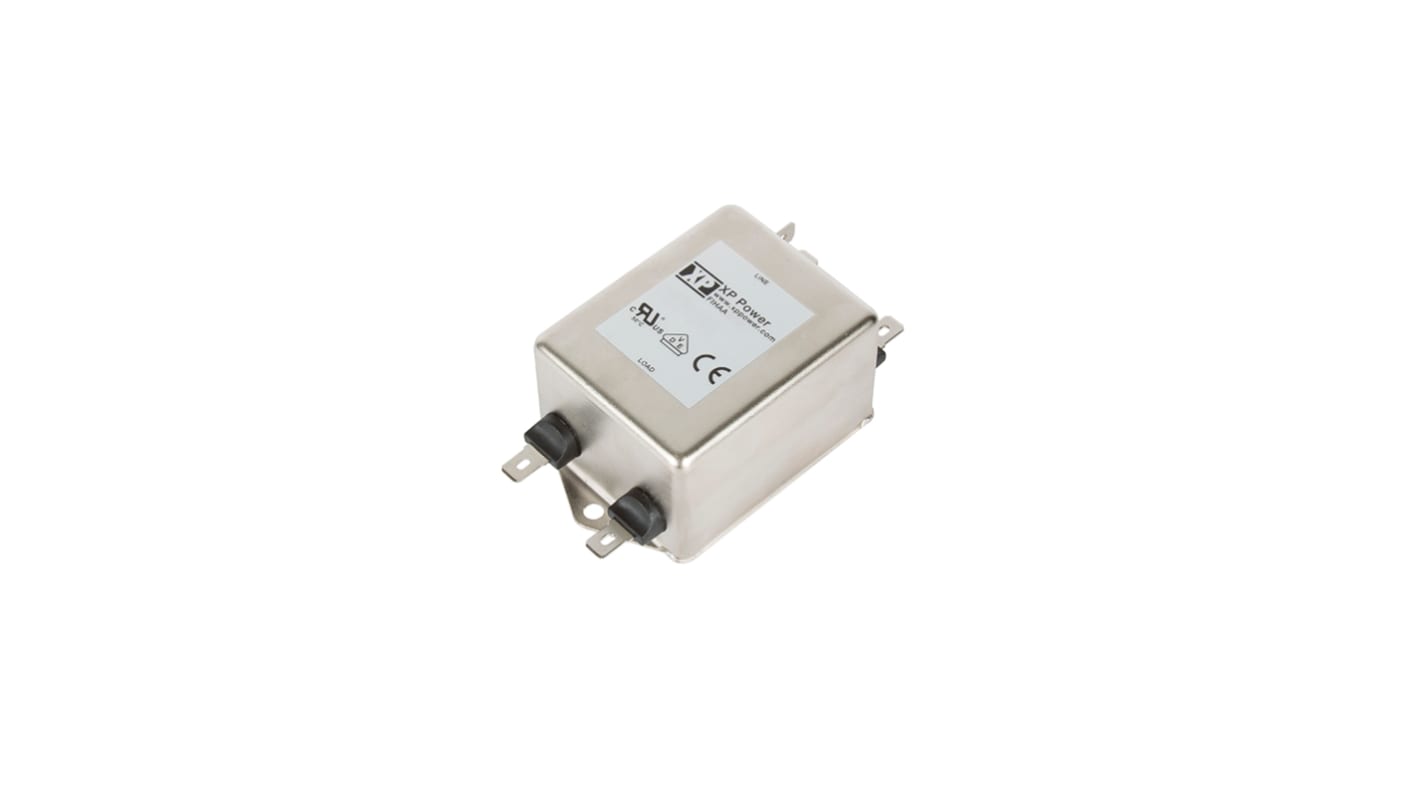

XP Power, FIHA 15A 264 V ac 0 → 400Hz, Chassis Mount EMI Filter, Quick Connect, Single Phase

ดู Power Line Filters ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
193-6561
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
FIHAA15C2F
ผู้ผลิต:
XP Power
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

XP Power

Maximum Current Rating

15A

Maximum Voltage Rating

264 V ac

Mounting Type

Chassis Mount

Termination Style

Quick Connect

Number of Phases

1

Series

FIHA

Number of Stages

Two Stage

Operating Frequency

0 → 400Hz

Length

65.5mm

Depth

54mm

Capacitance

0.3μF, 6.6µF

Height

39.5mm

Dimensions

84.8 x 54 x 39.5mm

Leakage Current

0.6mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+110°C

COO (Country of Origin):
CN
The FIHA high attenuation dual stage filters are housed in a compact, chassis mounting metal case, for ITE applications. Input and output connections are via 6.3 x 0.8mm Faston terminals. The filter should be fitted as close as possible to the mains cable entry point to minimize any radiated emissions from the mains cable within the equipment. Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. They feature a wide operating temperature range of -40°C to +110°C with full power operation up to +50°C.

Chassis Mount Filter
Dual Stage Design
Compact Design
ITE Version
1, 3, 6, 10, 15 & 20A Rating
6.3 x 0.8mm Faston Terminals
Bleed Resistor
Shielded Metal Body
Wide Operating Temperature Range
3 Year Warranty
