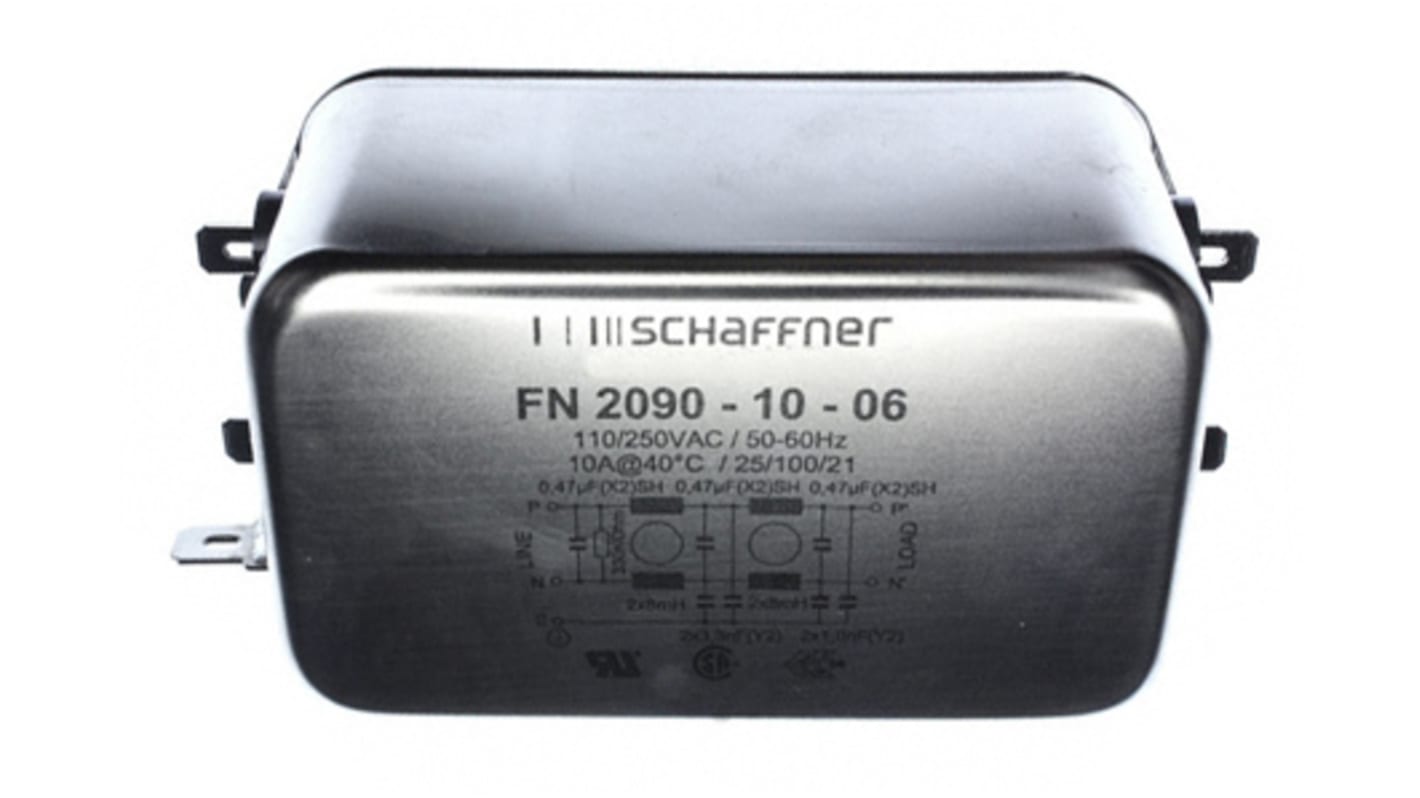

Schaffner, FN2090 10A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS Stock No.:
- 170-4910
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2090-10-06
- ผู้ผลิต / Manufacturer:
- Schaffner
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 30/04/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Box of 20)
THB1,599.847
(exc. VAT)
THB1,711.836
(inc. VAT)
| Units | Per unit | Per Box* |
| 20 - 20 | THB1,599.847 | THB31,996.94 |
| 40 - 60 | THB1,564.649 | THB31,292.98 |
| 80 + | THB1,531.053 | THB30,621.06 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 170-4910
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FN2090-10-06
- ผู้ผลิต / Manufacturer:
- Schaffner
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
FN2090 Series
Schaffner FN 2090 series 1-phase filters are designed for fast and easy chassis mounting. Featuring exceptional conductive attenuation, FN 2090 series filters are designed for noisy applications requiring excellent filter performance. Typical applications could be electrical and electronic equipment, consumer goods, household equipment, building automation, machinery, medical equipment, electronic data/communication processing equipment and office automation.
Two-stage filter
Very high differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)
Optional overvoltage protection (Z type)
Very high differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)
Optional overvoltage protection (Z type)
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | FN2090 |
| Number of Stages | Two Stage |
| Operating Frequency | 0 → 400Hz |
| Length | 85mm |
| Depth | 54mm |
| Capacitance | 3.3 nF, 470nF |
| Height | 45.4mm |
| Dimensions | 85 x 54 x 30.3mm |
| Inductance | 8 mH |
| Leakage Current | 0.67 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 330kΩ |
