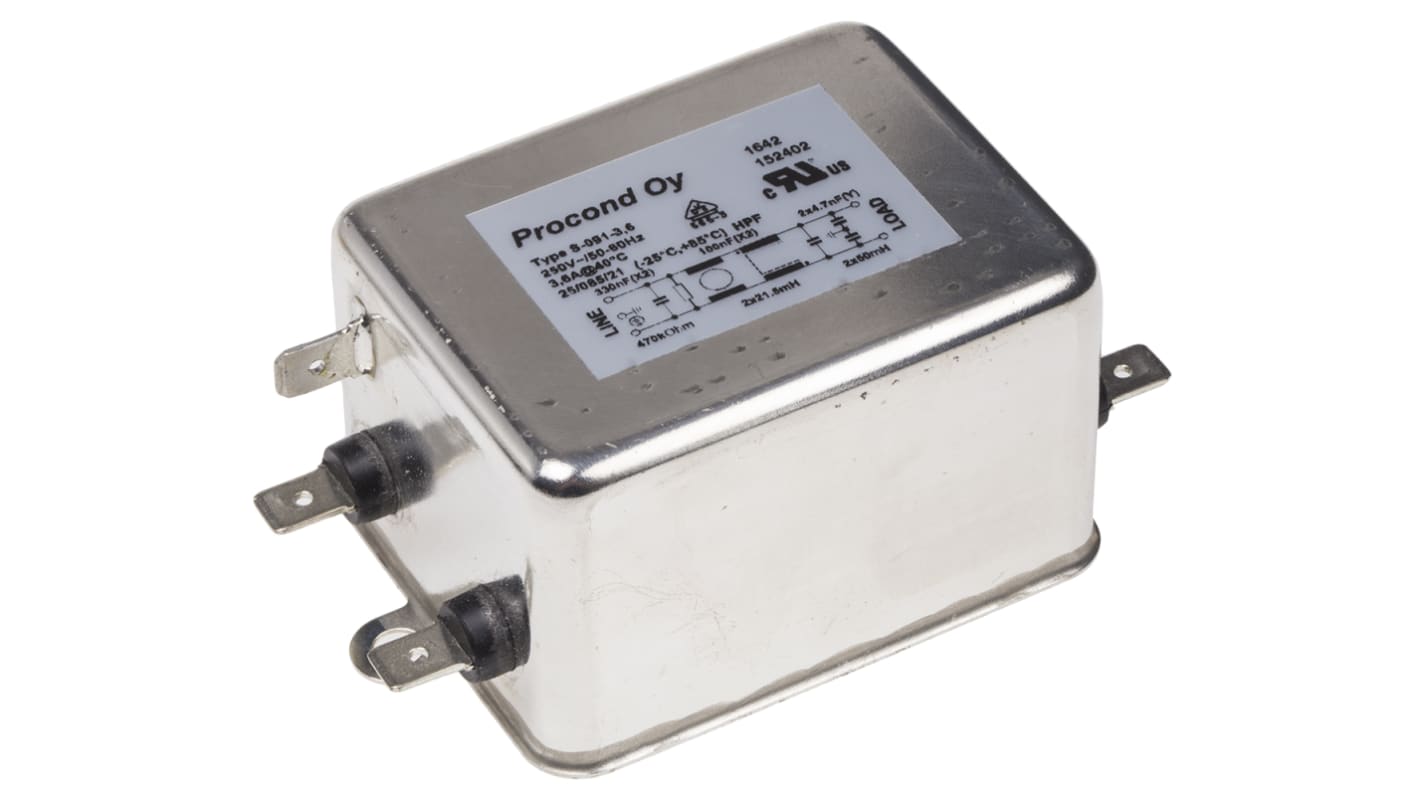

RS PRO S091A Series 3.6A 250 V ac 400MHz Flange Mount RFI Filter, with Tab Terminals
- RS Stock No. 240-703
- ผู้ผลิต / Manufacturer RS PRO
High Performance
RF filters which provide high attenuation in both differential and common mode.
Their extended low frequency performance makes them particularly suitable for industrial frequency converters, motor drives and switch mode power supply applications
Constructed using a combination of X2 and Y class safety suppression capacitors and a high inductance toroidal choke. This combination provides high performance especially in applications where interference is frequent and intensive
Electrical connections by 250 (1/4 in.) size terminals suitable for soldering or push-on receptacles; refer to the Connectors - Terminals/Test Leads section
Note
Approvals only apply to 6 and 10 Amp types.
Approvals
VDE, FIMKO
Approvals
VDE; FI
| คุณสมบัติ | Value |
|---|---|
| Maximum Current Rating | 3.6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Number of Stages | Two Stage |
| Series | S091A |
| Operating Frequency | 400MHz |
| Length | 65mm |
| Depth | 52mm |
| Height | 40mm |
| Capacitance | 100 nF, 330 nF |
| Dimensions | 65 x 52 x 40mm |
| Inductance | 21 x 2 mH |
| Leakage Current | 0.45mA mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 470kΩ |
