- RS Stock No.:
- 176-1665
- ผู้ผลิต / Manufacturer:
- RS PRO
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 18/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB10,858.21
(exc. VAT)
THB11,618.28
(inc. VAT)
Units | Per unit |
1 + | THB10,858.21 |
- RS Stock No.:
- 176-1665
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
รายละเอียดสินค้า / Product Details

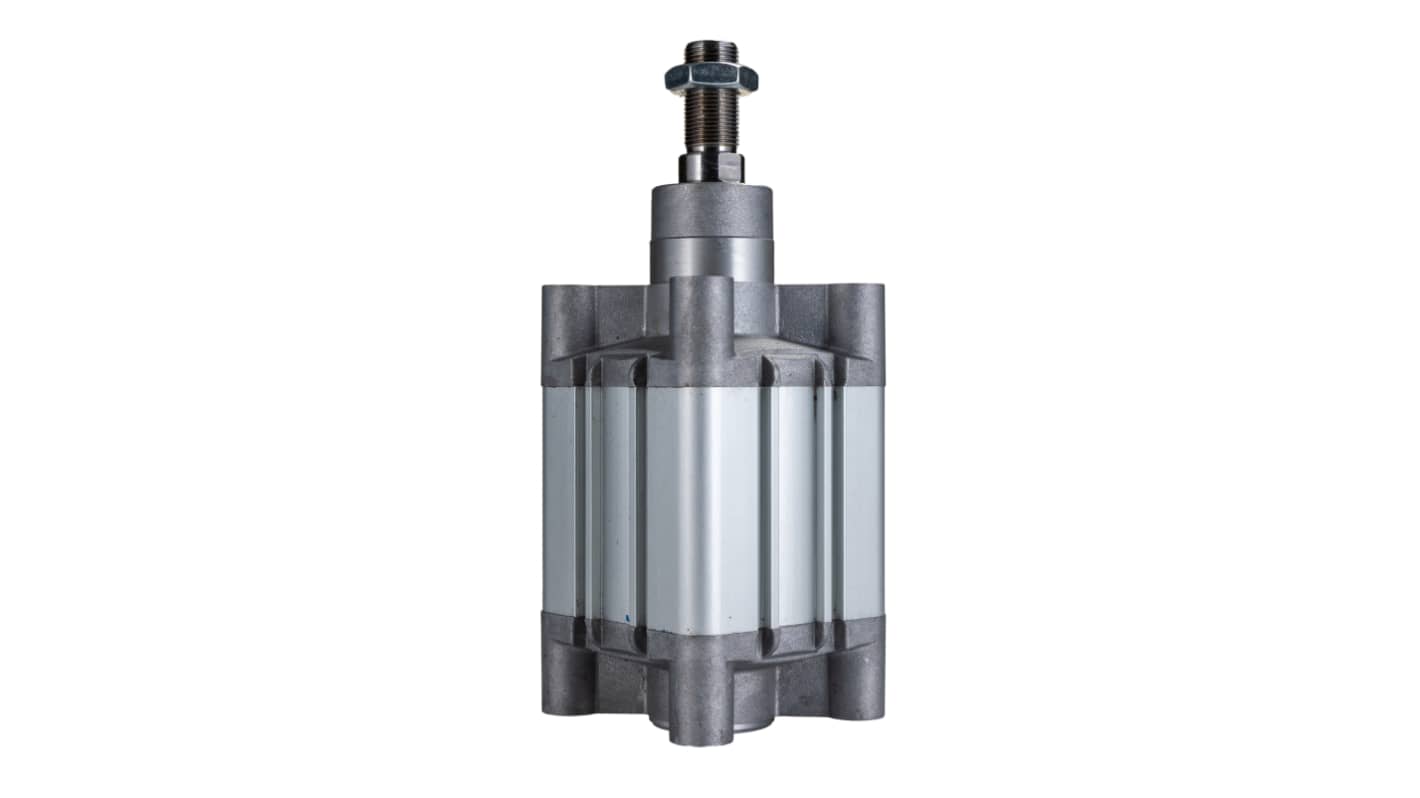

RS Pro double-acting pneumatic cylinders according to ISO 15552 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Stroke | 25мм |
Bore | 100мм |
Action | Double |
Length | 214.5мм |
Cushioning Type | Cushioned |
Dimensions | 214.5 x 111 x 111мм |
Width | 111мм |
Maximum Operating Pressure | 10 bar |
Height | 111мм |
ISO Standard | 15552 |
VDMA Standard | 6431 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +80°C |
