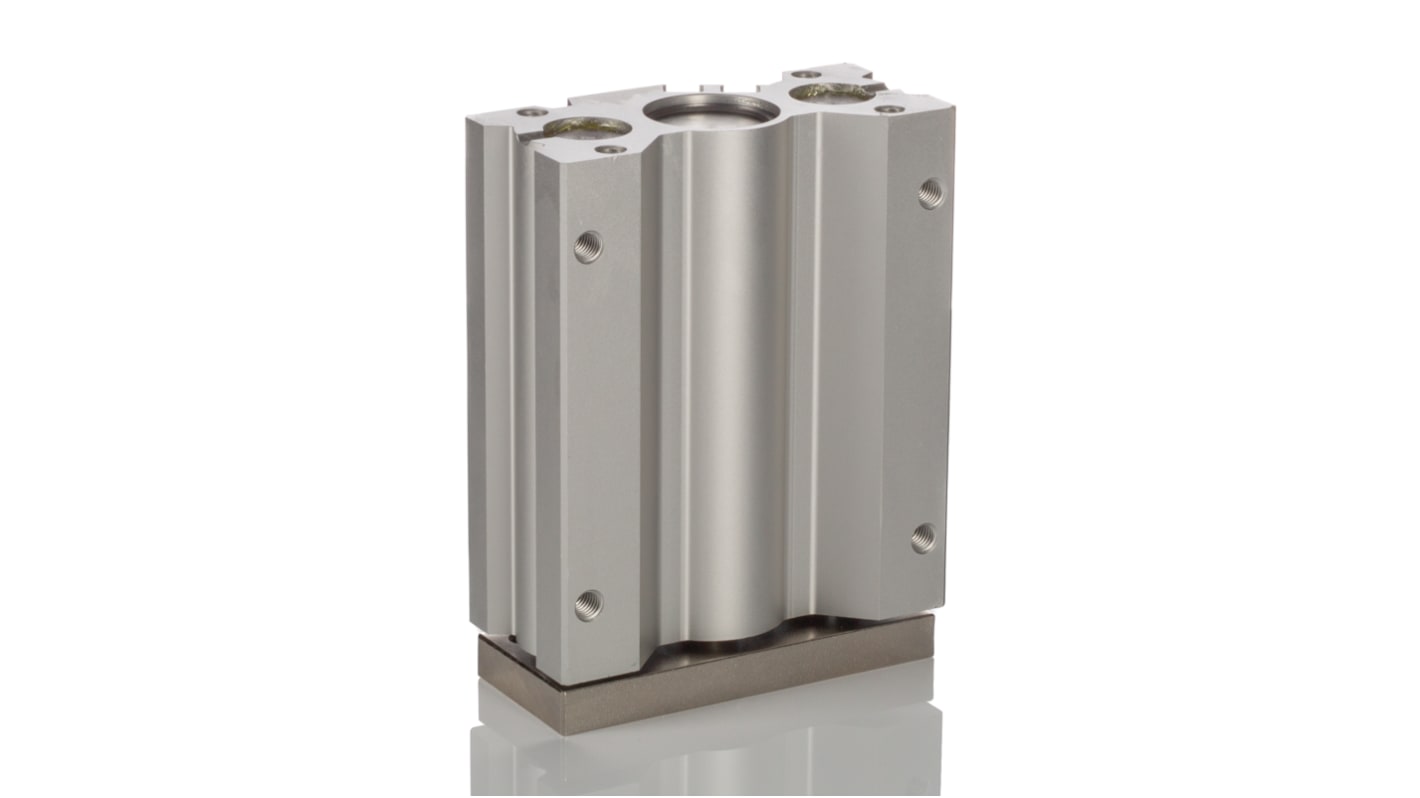

SMC Pneumatic Guided Cylinder - 20mm Bore, 50mm Stroke, MGQ Series, Double Acting
- RS Stock No.:
- 222-3968
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MGQM20-50
- ผู้ผลิต / Manufacturer:
- SMC
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB13,757.39
(exc. VAT)
THB14,720.41
(inc. VAT)
| Units | Per unit |
| 1 + | THB13,757.39 |
- RS Stock No.:
- 222-3968
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MGQM20-50
- ผู้ผลิต / Manufacturer:
- SMC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
SMC MGQM Compact Guide Cylinder
The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two types of guide rod bearing for different applications. The overall package is very compact and pre-tapped mounting holes ensure easy attachment of fixtures.
Compact guide cylinder
Available in a range of bore sizes
Strokes from 10mm → 200mm depending upon bore size
Variety of switches and a variety of lead wire lengths
Mounts on side or bottom
Available in a range of bore sizes
Strokes from 10mm → 200mm depending upon bore size
Variety of switches and a variety of lead wire lengths
Mounts on side or bottom
MGQ-M Compact Guided 12-50mm Diameter
Compact, double-acting guided cylinders utilising slide bearings. These cylinders maintain a very high non-rotational accuracy and have a high tolerance to side loading. All cylinders have magnetic sensing capabilities and direct mount facilities.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Stroke | 50mm |
| Bore | 20mm |
| Manufacturer Series | MGQ |
| Action | Double |
| Maximum Operating Pressure | 1 MPa |
| Cushioning Type | Rubber |
| Dimensions | 97 x 36 x 74mm |
| Weight | 760g |
| Maximum Operating Temperature | +60°C |
| Length | 97mm |
| Height | 74mm |
| Width | 36mm |
| Minimum Operating Temperature | -10°C |
