RS PRO I/O Extension Module for Use with RS PRO Logic Modules, 110 → 240 V ac Supply, Digital, Relay Output,
- RS Stock No.:
- 917-6386
- ผู้ผลิต / Manufacturer:
- RS PRO
2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB2,492.60
(exc. VAT)
THB2,667.08
(inc. VAT)
Units | Per unit |
1 + | THB2,492.60 |
- RS Stock No.:
- 917-6386
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details

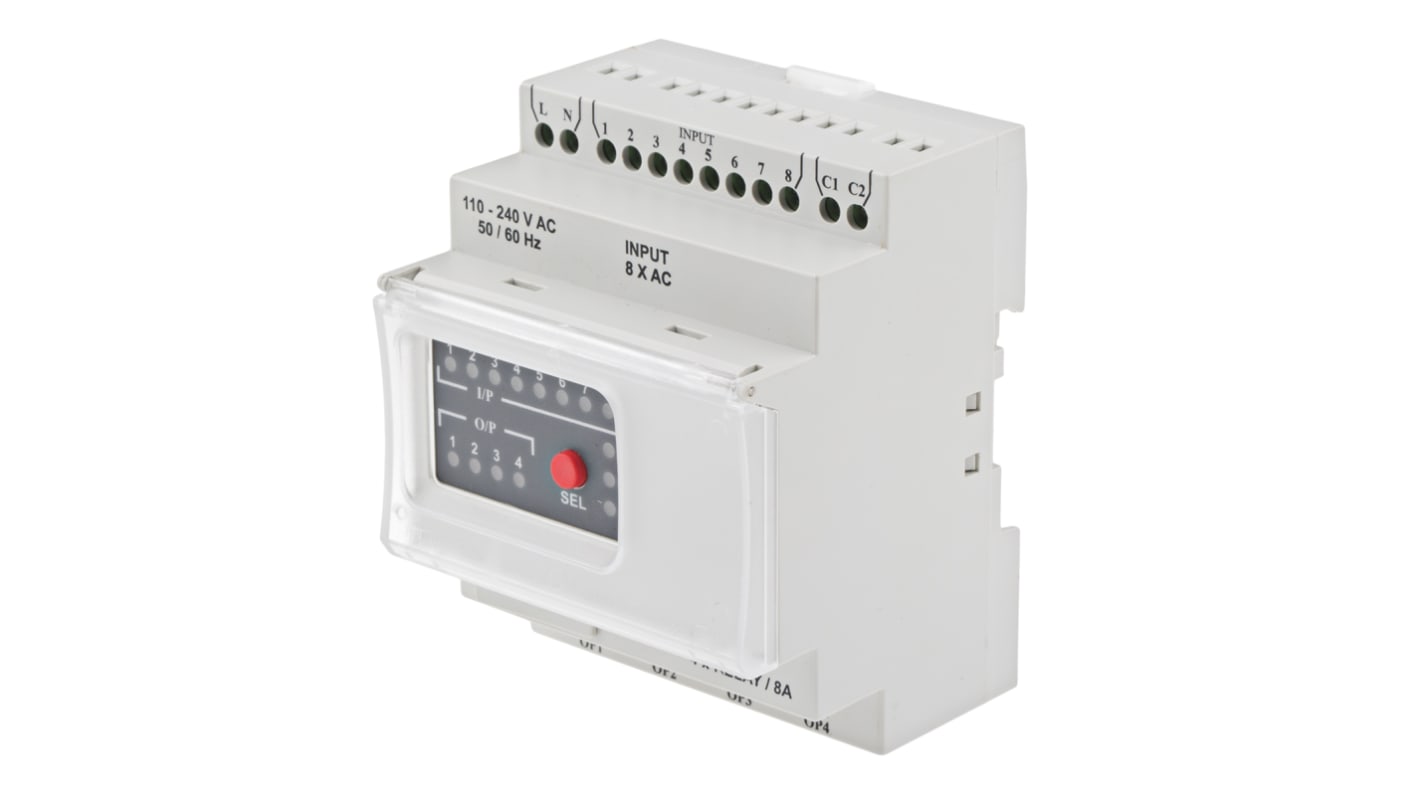

RS PRO I/O Expansion Module (8 Input/ 4 Output)
An expansion input/output (I/O) module for controlling automated processes in both industrial and commercial environments for use with RS PRO Logic Controllers
Designed for use where various types of input need to be considered such as temperature, pressure and flow rate. This module doesn't require special or complicated wiring, its quick to install and easy to manage and can expand through a daisy chain fashion to support up to 48 I/O (32 digital input and 16 relay input).
With an operating temperature range of -10°C to +55°C the I/O module is suitable for a wide range of environments, from cold storage units to power plants.
Features and Benefits
- Expansion Module with Relay Output
- 8 inputs, 4 outputs
- Maximum of 3 expansion modules on one Logic Module (48 I/O)
- DIN rail mounting
Applications
- HVAC Controls
- Machine Controls involving Motor, Pump and Valve
- Vehicle Control Monitoring
- Baggage handling
- Conveyor systems and Elevators
- Exhaust and Filtering Systems
- Water-treatment plants
- Printing and Packaging Machines
- Interior and Exterior Lighting Control
- Door, Gate, Shutter, Sun blinds and Awning control
- Irrigation Control Systems
- Automation of Compressors and Pumps for Air Conditioning requirements
Software
RS Pro Logic Module software is available as a free download via the following link:
http://auto.designspark.info/exe/RS_Logic_Module.zip
The free logic module software provides a user friendly interface that allows easy programming, simulation and debugging on a PC.
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that youre receiving the exceptional quality, reliability and the best value for money.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Number of Inputs | 8 |
Output Type | Digital, Relay |
For Use With | RS PRO Logic Modules |
Supply Voltage | 110 → 240 V ac |
Input Type | Digital |
Number of Outputs | 4 |
Network Type | ModBus |
Program Capacity | 250 lines |
Communication Port Type | Serial |
Standards Met | CE Certified; cULus |
Dimensions | 72 x 90 x 65 mm |
Programming Language Used | Ladder Programming |
Mounting Type | DIN Rail |
Width | 72mm |
Length | 90mm |
Maximum Operating Temperature | +55°C |
Output Current | 8 A |
Number of Communication Ports | 1 |
Minimum Operating Temperature | -10°C |
Programming Interface | Computer |
Depth | 65mm |
