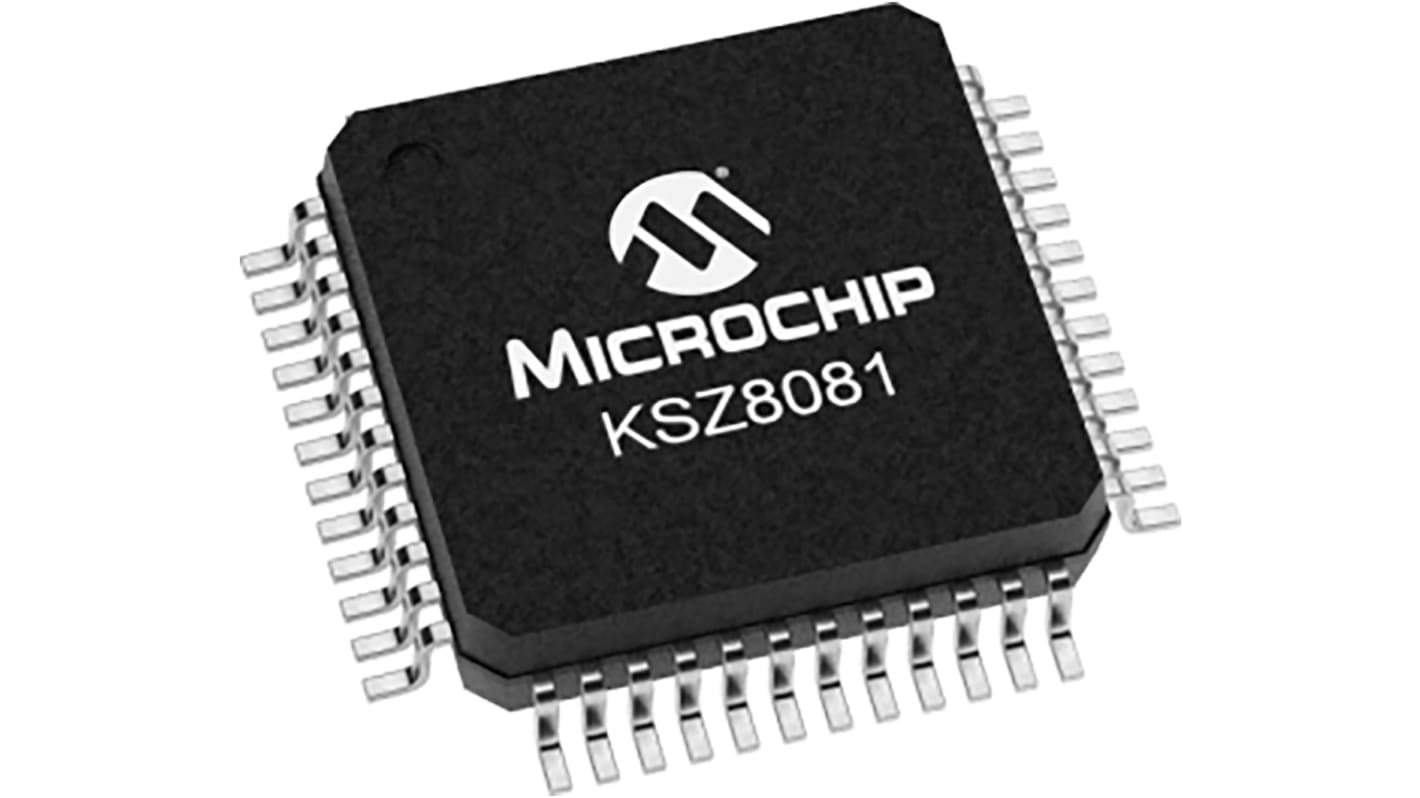

Microchip , 1-Channel Ethernet Transceiver 48-Pin LQFP, KSZ8081MLXIA
- RS Stock No.:
- 177-3528
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KSZ8081MLXIA
- ผู้ผลิต / Manufacturer:
- Microchip
1250 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 250)
THB75.839
(exc. VAT)
THB81.148
(inc. VAT)
| Units | Per unit | Per Tray* |
| 250 - 250 | THB75.839 | THB18,959.75 |
| 500 - 750 | THB74.17 | THB18,542.50 |
| 1000 + | THB72.578 | THB18,144.50 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 177-3528
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KSZ8081MLXIA
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The KSZ8081 is a single-supply 10Base-T/100Base-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable.
Single-chip 10Base-T/100Base-TX Ethernet transceiver
MII interface support (KSZ8081MNX)
RMII v1.2 Interface support with a 50MHz reference clock output to MAC, and an option to input a 50MHz reference clock (KSZ8081RNB)
RMII back-to-back mode support for a 100Mbps copper repeater
MDC/MDIO management interface for PHY register configuration
Programmable interrupt output
LED outputs for link and activity status indication
On-chip termination resistors for the differential pairs
Baseline wander correction
HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disable and enable option
Auto-negotiation to automatically select the highest linkup speed
MII interface support (KSZ8081MNX)
RMII v1.2 Interface support with a 50MHz reference clock output to MAC, and an option to input a 50MHz reference clock (KSZ8081RNB)
RMII back-to-back mode support for a 100Mbps copper repeater
MDC/MDIO management interface for PHY register configuration
Programmable interrupt output
LED outputs for link and activity status indication
On-chip termination resistors for the differential pairs
Baseline wander correction
HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disable and enable option
Auto-negotiation to automatically select the highest linkup speed
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Standard Supported | 100BASE-TX IEEE 802.3, 10BASE-T |
| Number of Channels per Chip | 1 |
| Typical Data Rate | 100Mbit/s |
| Power Supply Type | Single |
| Typical Operating Supply Voltage | 3.3 V |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Pin Count | 48 |
| Dimensions | 7 x 7 x 1.45mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
