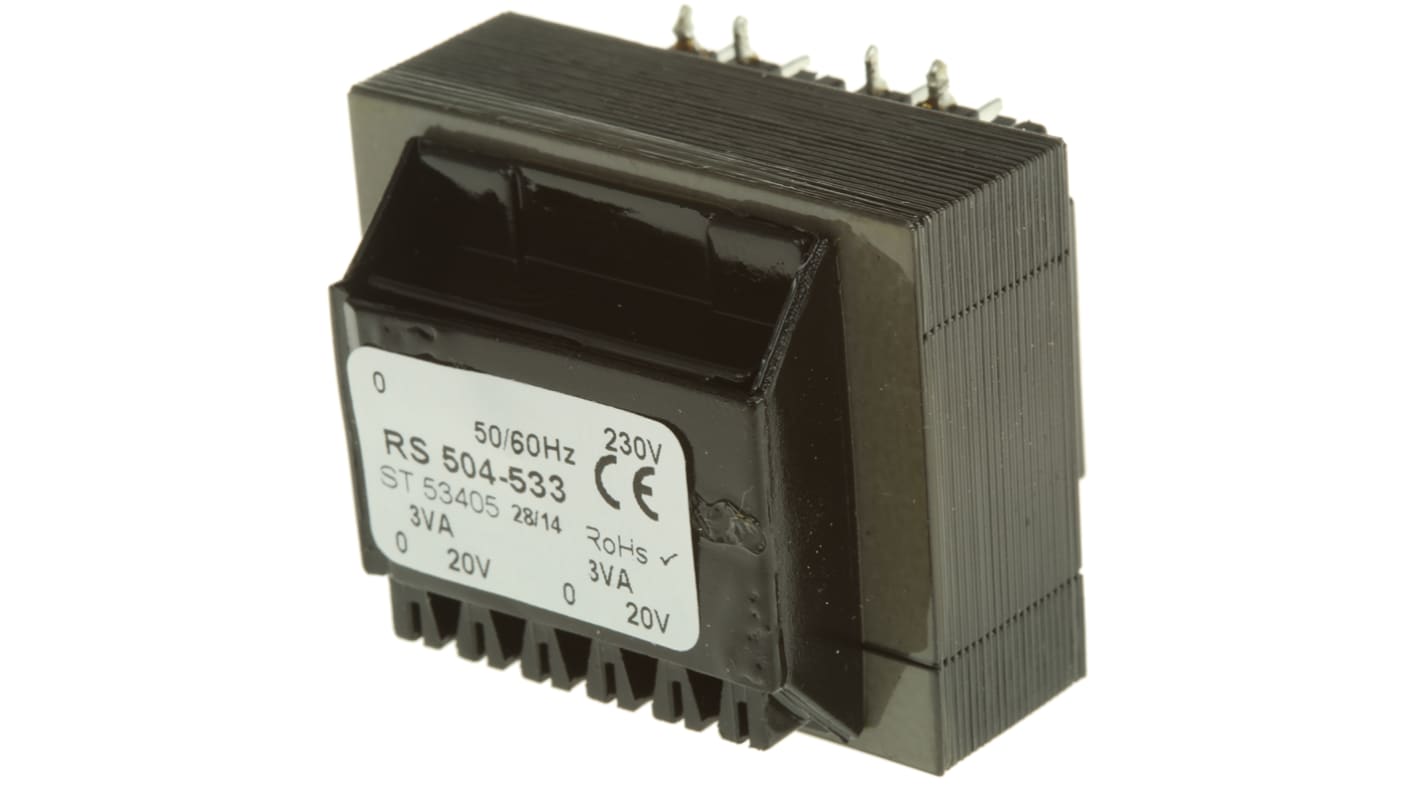

RS PRO 20V ac 2 Output Through Hole PCB Transformer, 6VA
- RS Stock No.:
- 504-533
- ผู้ผลิต / Manufacturer:
- RS PRO
152 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB571.31
(exc. VAT)
THB611.30
(inc. VAT)
| Units | Per unit |
| 1 - 9 | THB571.31 |
| 10 - 24 | THB554.17 |
| 25 - 49 | THB537.03 |
| 50 - 99 | THB525.61 |
| 100 + | THB432.58 |
- RS Stock No.:
- 504-533
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
รายละเอียดสินค้า / Product Details
230 Va.c. Primary Transformers
Fully shrouded bobbins
Extra pins for secure board mounting
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Extra pins for secure board mounting
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Approvals
8888
Standards
BS3535; EN 60 742
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Full varnish impregnation
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Secondary Voltage Rating | 20V ac |
| Power Rating | 6VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 2 |
| Length | 43mm |
| Width | 36mm |
| Depth | 33mm |
| Dimensions | 43 x 36 x 33mm |
| Weight | 180g |
| Mounting Type | Through Hole |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
