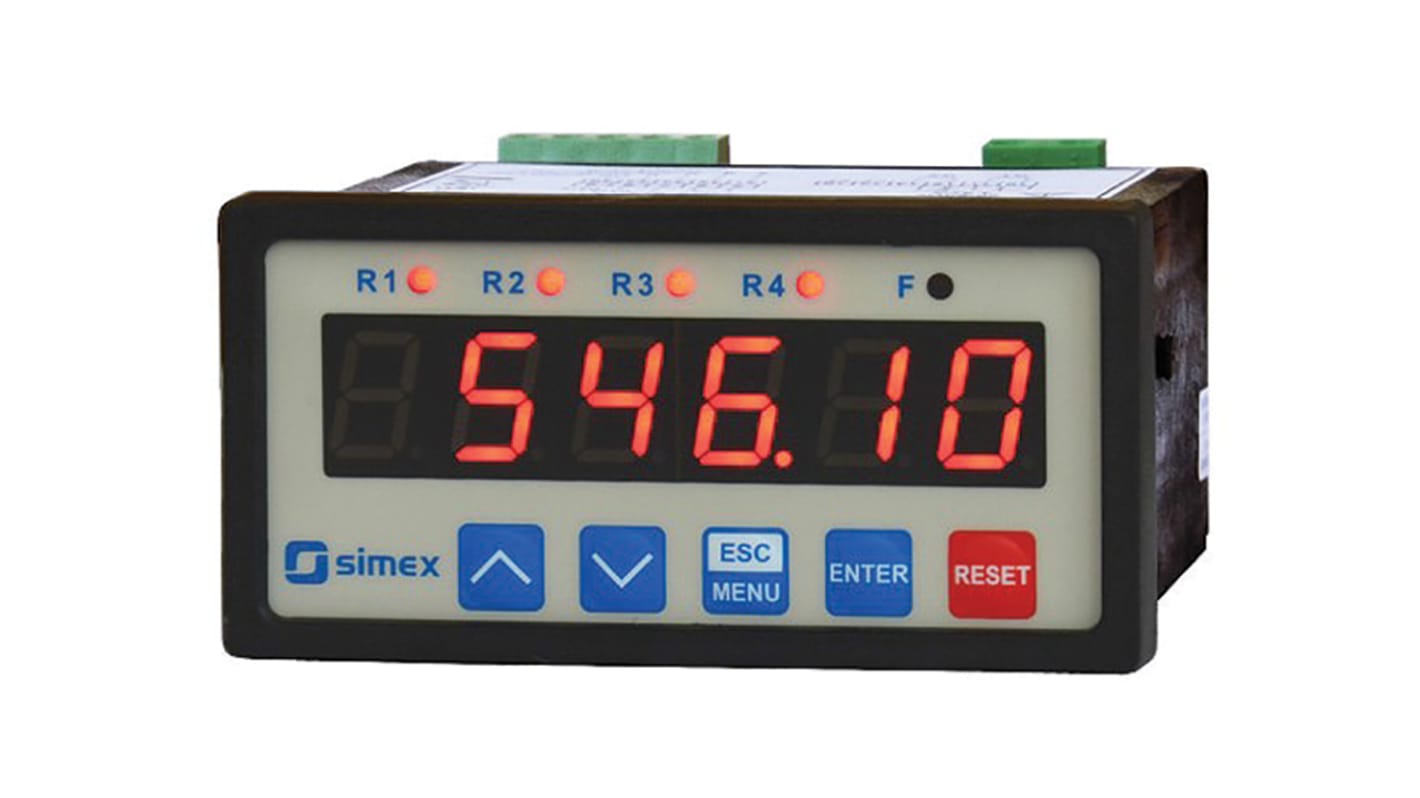

Simex LED Digital Panel Multi-Function Meter for Current, Voltage, 43mm x 90.5mm
- RS Stock No.:
- 914-8536
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SRP-946-1841-1-4-001
- ผู้ผลิต / Manufacturer:
- Simex
2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB15,176.20
(exc. VAT)
THB16,238.53
(inc. VAT)
| Units | Per unit |
| 1 + | THB15,176.20 |
- RS Stock No.:
- 914-8536
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SRP-946-1841-1-4-001
- ผู้ผลิต / Manufacturer:
- Simex
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
รายละเอียดสินค้า / Product Details
SRP-94/946 Process Meter
The SRP-94 and SRP-946 are process meters designed for measuring typical current or voltage signals. The readouts on these meters are presented on a large, well-readable display with standard range of 4 digits or 5/6 digits for more demanding applications. The outputs on these meters are designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
• SRP-94 - 4-digit (20 mm) LED display
• SRP-946 - 6-digit (13 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• 4 Relay outputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
• SRP-946 - 6-digit (13 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• 4 Relay outputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
Simex Multi function Meters
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Properties Measured | Current, Voltage |
| Display Type | LED |
| Cutout Height | 43mm |
| Cutout Width | 90.5mm |
| Depth | 102mm |
| Number of Digits | 6 |
| Digit Height | 13 mm, 20 mm |
| Minimum Temperature | 0°C |
| Maximum Temperature | +50°C |
| Measurement Range | 0 → 10 V, 0 → 150 mV, 0 → 20 mA |
| Approvals | CE |
| Meter Type | Digital |
| Minimum Measurement | 0 mA, 0 mV, 0 V |
