- RS Stock No.:
- 125-0659
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SRP-147 24VDC
- ผู้ผลิต / Manufacturer:
- Simex
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB19,079.22
(exc. VAT)
THB20,414.77
(inc. VAT)
Units | Per unit |
1 + | THB19,079.22 |
- RS Stock No.:
- 125-0659
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SRP-147 24VDC
- ผู้ผลิต / Manufacturer:
- Simex
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
รายละเอียดสินค้า / Product Details

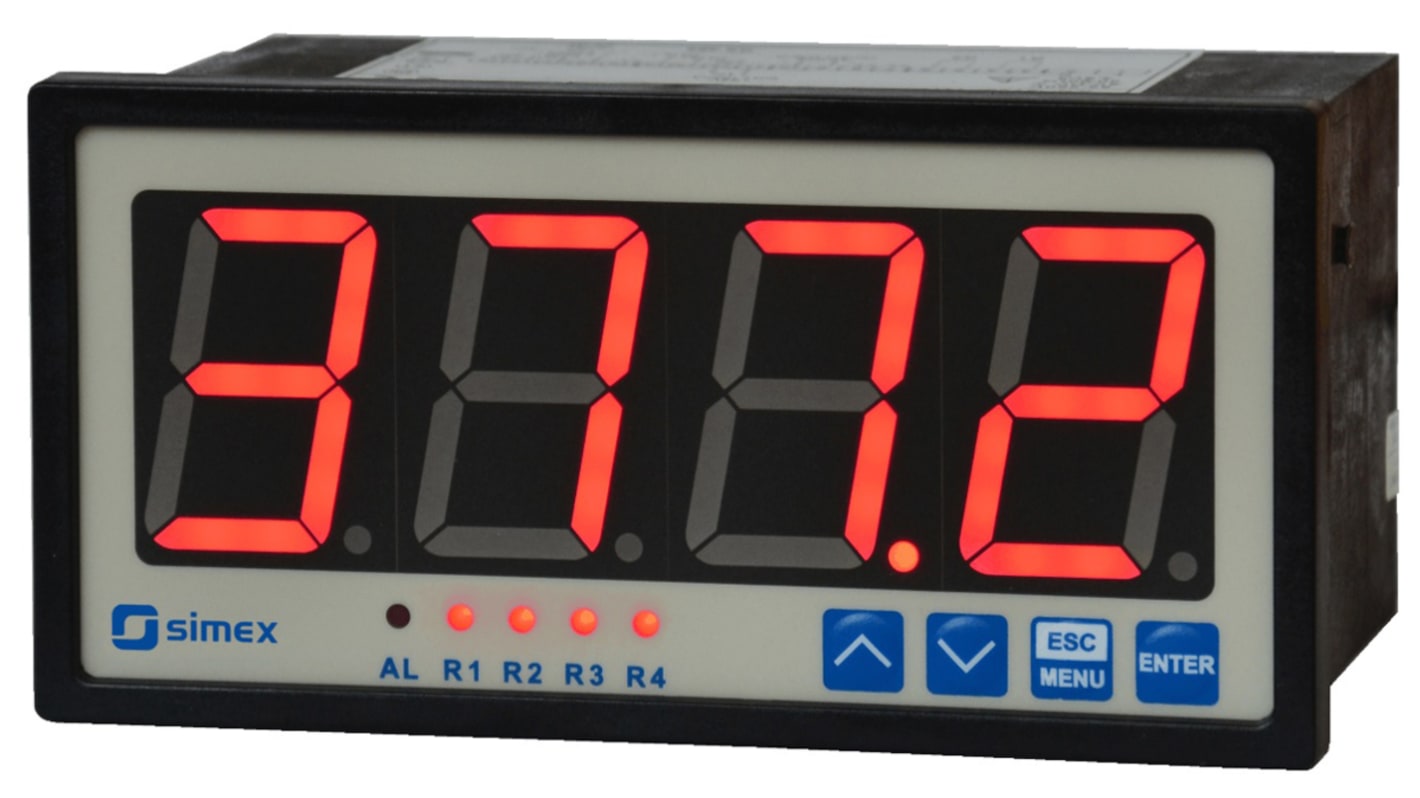

SRP-147 Process Meter
The SRP-147 process meter is designed for measuring typical current or voltage signals. One of the main features of this meter is the large 38 mm high LED display. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
• Large 4-digit (38 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
Simex Multi function Meters
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Properties Measured | 0→10 V |
Display Type | LED |
Cutout Height | 67mm |
Cutout Width | 137mm |
Depth | 92mm |
Number of Digits | 4 |
Digit Height | 38 mm |
Supply Voltage | 10 V |
Minimum Temperature | 0°C |
Maximum Temperature | +50°C |
Meter Type | Digital |
Series | SRP-147 |
