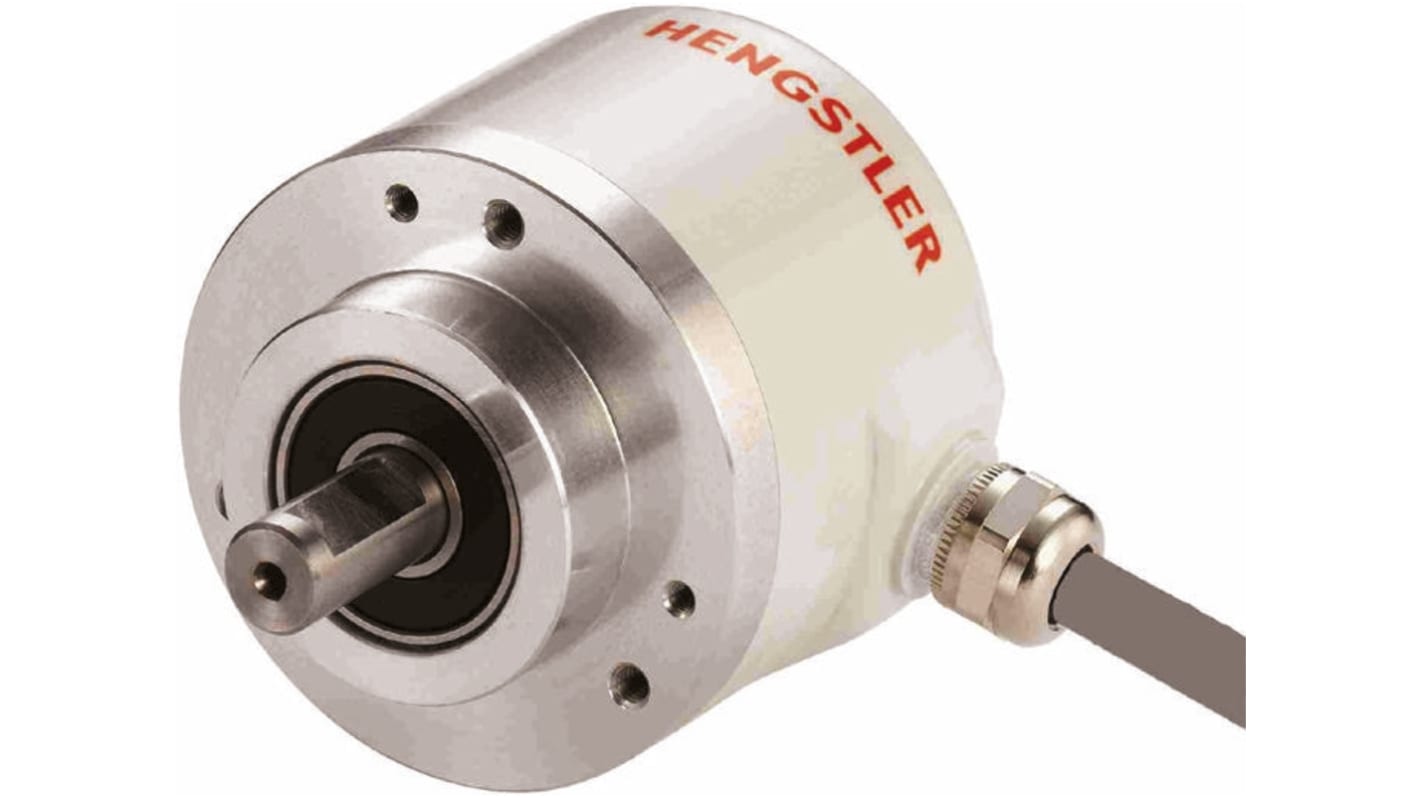

Hengstler AC58 Series Absolute Absolute Encoder, Gray, SSI Signal, Solid Type, 10mm Shaft
- RS Stock No.:
- 480-0488
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RC58/0013EK.42SGB
- ผู้ผลิต / Manufacturer:
- Hengstler
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB22,004.37
(exc. VAT)
THB23,544.68
(inc. VAT)
| Units | Per unit |
| 1 - 2 | THB22,004.37 |
| 3 - 9 | THB21,124.19 |
| 10 + | THB20,244.02 |
- RS Stock No.:
- 480-0488
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RC58/0013EK.42SGB
- ผู้ผลิต / Manufacturer:
- Hengstler
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details
Rotary transducer AC58 - absolute, single turn, 58 mm
"ACURO Industry" series
Single turn design
Integrated safety and monitoring system
Magnetically insensitive
Maintenance-free as no battery
Compact dimensions
Preset key
Diagnostic LEDs
Single turn design
Integrated safety and monitoring system
Magnetically insensitive
Maintenance-free as no battery
Compact dimensions
Preset key
Diagnostic LEDs
Hengstler
Radial cable termination
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Encoder Technology | Absolute |
| Series | AC58 |
| Maximum Revolutions | 10000rpm |
| Output Signal Type | Gray, SSI |
| Shaft Type | Solid |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 10mm |
| Resolution | 13 bit |
| IP Rating | IP64, IP67 |
| Interface | SSI-Gray |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
