Wachendorff Incremental Incremental Encoder, 2048 ppr, HTL Signal, Solid Type
- RS Stock No.:
- 388-5573
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- WDG58B-2048-ABN-G24-K3
- ผู้ผลิต / Manufacturer:
- Wachendorff
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB13,768.11
(exc. VAT)
THB14,731.88
(inc. VAT)
| Units | Per unit |
| 1 - 4 | THB13,768.11 |
| 5 - 9 | THB13,217.73 |
| 10 + | THB12,942.54 |
- RS Stock No.:
- 388-5573
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- WDG58B-2048-ABN-G24-K3
- ผู้ผลิต / Manufacturer:
- Wachendorff
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- US
รายละเอียดสินค้า / Product Details

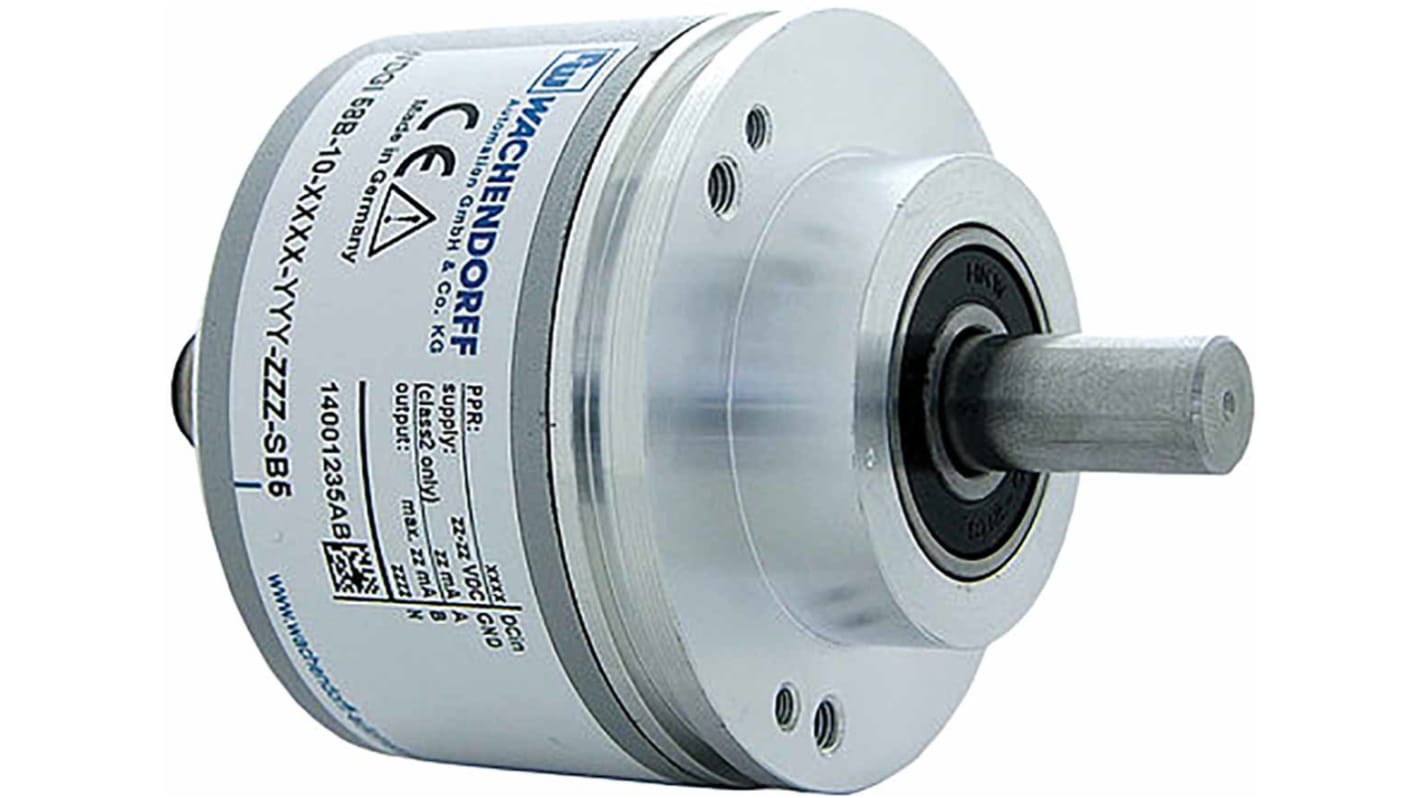

Rotary transducer WDG58B, incremental, shaft, 58 mm
Recording of rpm, position, distance or speed
Sturdy industrial aluminium housing with clamping flange
High protection class according to DIN 40 050: IP65 (shaft), IP67 (cover)
Very high axial and radial loads
Early warning output
Highly precise chip analysis
Standards: DIN VDE 0160
Sturdy industrial aluminium housing with clamping flange
High protection class according to DIN 40 050: IP65 (shaft), IP67 (cover)
Very high axial and radial loads
Early warning output
Highly precise chip analysis
Standards: DIN VDE 0160
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Encoder Technology | Incremental |
| Pulses Per Revolution | 2048 |
| Maximum Revolutions | 8000rpm |
| Output Signal Type | HTL |
| Shaft Type | Solid |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP65, IP67 |
| Overall Height | 83mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Mounting Type | Clamping Flange |
| Switching Frequency | 200 kHz |
