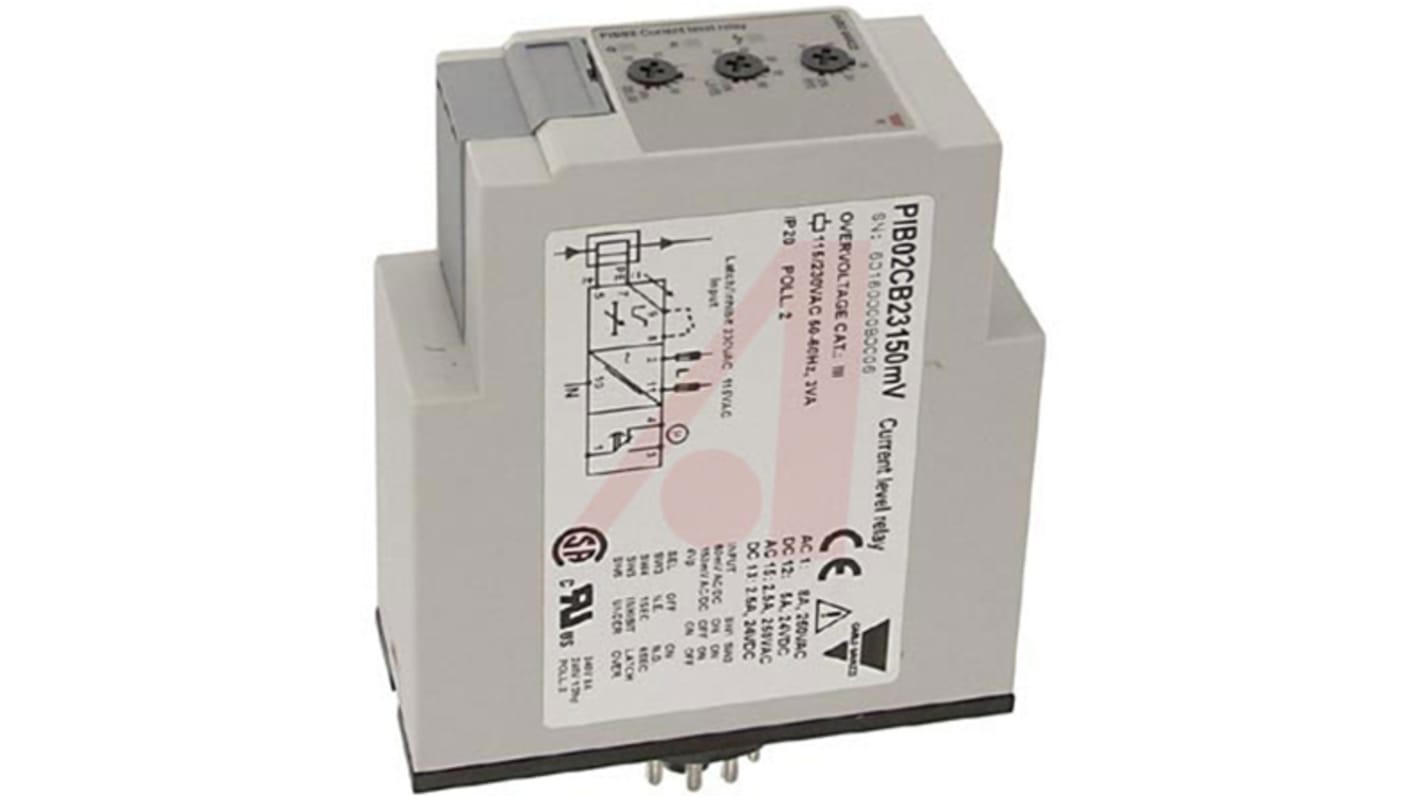

Carlo Gavazzi Current Monitoring Relay, 1 Phase, SPDT, Maximum of 4 V ac, 150 mV ac/dc, Plug In
- RS Stock No.:
- 857-7185
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIB02CB23150MV
- ผู้ผลิต / Manufacturer:
- Carlo Gavazzi
5 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB4,526.44
(exc. VAT)
THB4,843.29
(inc. VAT)
| Units | Per unit |
| 1 + | THB4,526.44 |
- RS Stock No.:
- 857-7185
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIB02CB23150MV
- ผู้ผลิต / Manufacturer:
- Carlo Gavazzi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
รายละเอียดสินค้า / Product Details
Over Voltage - Over Current Monitoring Relay
Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.
AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Monitoring Application | Current |
| Electrical Phase | 1 |
| Voltage Sensing Range | Maximum of 4 V ac, 150 mV ac/dc |
| Contact Configuration | SPDT |
| Mounting Type | Plug In |
| Current Sensitivity | Overcurrent, Undercurrent |
| Time Delay | 1 s, 6s |
| Series | PIB02 |
| Operating Temperature Range | +60°C |
| Minimum Operating Temperature | -20°C |
| Width | 36mm |
| Height | 80mm |
| Maximum Operating Temperature | +60°C |
| Length | 94mm |
| Maximum Voltage Sensed | 4 V ac, 150mV ac/dc |
| Dimensions | 94 x 36 x 80mm |
