Tele Phase, Voltage Monitoring Relay, 3 Phase, DPDT, Maximum of 230 V, DIN Rail
- RS Stock No.:
- 123-9752
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- G2PM230VSY20 24-240V
- ผู้ผลิต / Manufacturer:
- Tele
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB10,463.97
(exc. VAT)
THB11,196.45
(inc. VAT)
| Units | Per unit |
| 1 + | THB10,463.97 |
- RS Stock No.:
- 123-9752
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- G2PM230VSY20 24-240V
- ผู้ผลิต / Manufacturer:
- Tele
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- AT
รายละเอียดสินค้า / Product Details

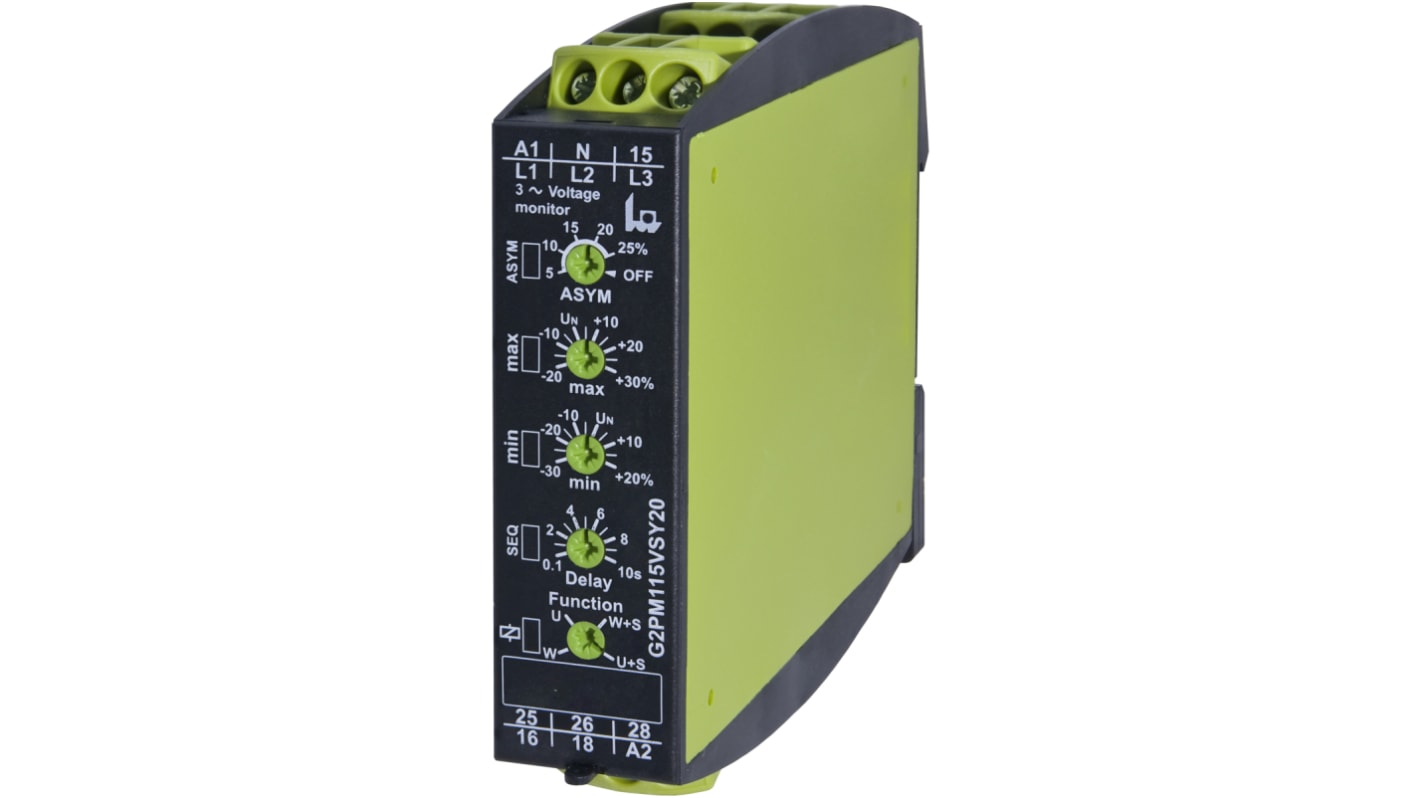

GAMMA Series Voltage Monitoring Relay
TELE GAMMA series AC and DC voltage monitoring relay. Multifunction monitoring in a slim easy to use package. The GAMMA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
2 change over contact
Multifunction
LED indicator
Screw terminals
2 change over contact
Multifunction
Telecontrol GAMMA Monitoring Relays
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Monitoring Application | Phase, Voltage |
| Electrical Phase | 3 |
| Voltage Sensing Range | Maximum of 230 V |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Undervoltage |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 0.1 → 10s |
| Series | GAMMA |
| Length | 22.5mm |
| Dimensions | 22.5 x 108 x 90mm |
| Minimum Operating Temperature | -25°C |
| Height | 90mm |
| Width | 108mm |
| Maximum Operating Temperature | +55°C |
| Number of Poles | 2 |
| Operating Temperature Range | +55°C |
| Maximum Voltage Sensed | 230V |
| Terminal Type | Screw |
