- RS Stock No.:
- 262-025
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 84873025
- ผู้ผลิต / Manufacturer:
- Crouzet
3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB9,047.05
(exc. VAT)
THB9,680.34
(inc. VAT)
Units | Per unit |
1 + | THB9,047.05 |
- RS Stock No.:
- 262-025
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 84873025
- ผู้ผลิต / Manufacturer:
- Crouzet
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

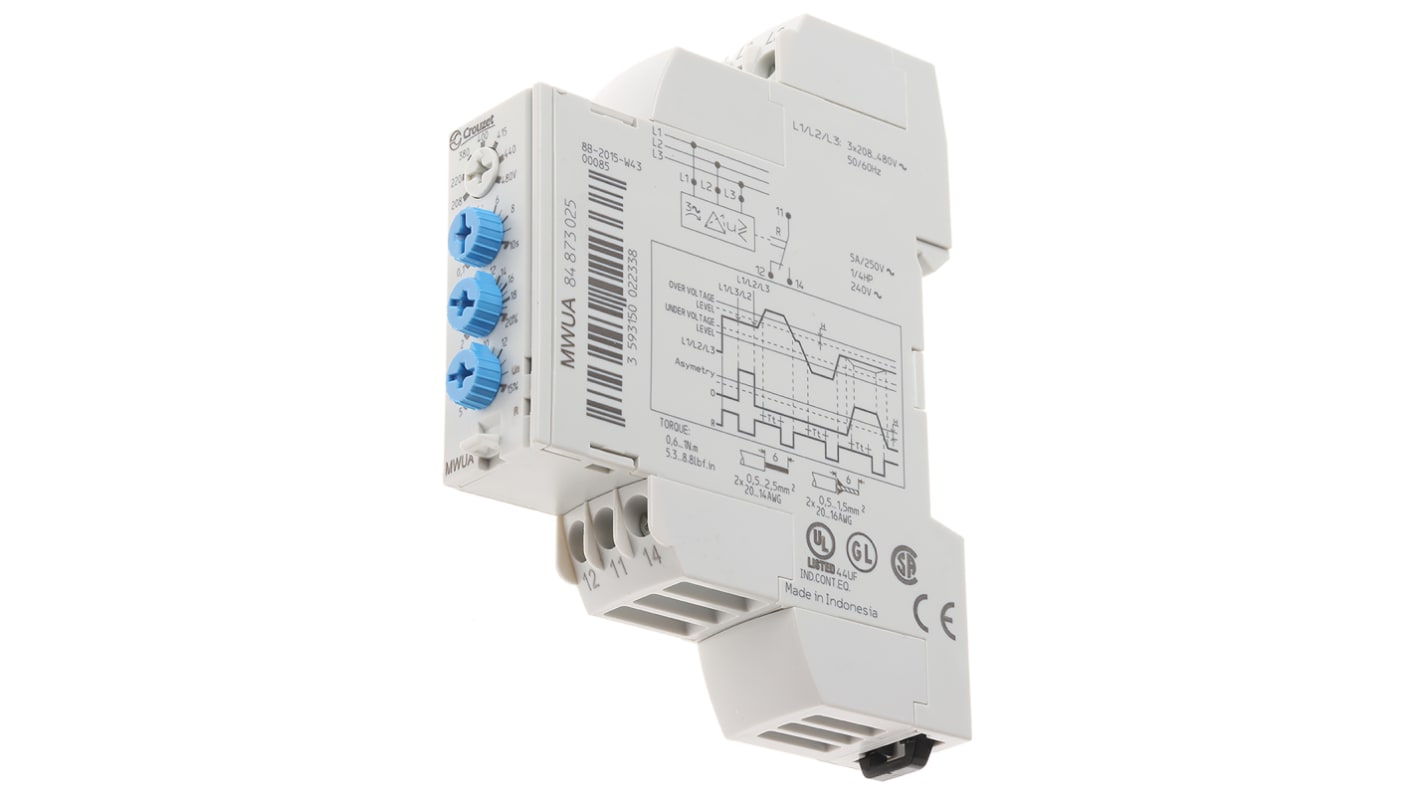

Multi Function Phase Control Relays 17.5mm - C-Lynx
3 phase network control relays monitor: the correct sequence of phases L1, L2, L3, the total phase failure - Undervoltage and overvoltage from 2% to 20% of Under Voltage Relay and Asymmetry rate from 5% to 15% of Under Voltage Relay. LEDs are used for fault signalling, if a fault persists for longer than the threshold crossing delay configured by the operator, the output relay opens and the LED R is extinguished.
"Control of 3 phase networks: phase sequence, phase failure, imbalance (asymmetry), over and under voltage
Range includes mono-function product and multi function product
Multi-voltage from 3 x 208 to 3 x 480 V
True RMS measurement
LED status indication"
Range includes mono-function product and multi function product
Multi-voltage from 3 x 208 to 3 x 480 V
True RMS measurement
LED status indication"
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Phase, Voltage |
Electrical Phase | 3 |
Voltage Sensing Range | 183 → 528V ac |
Contact Configuration | SPDT |
Voltage Sensitivity | Overvoltage, Undervoltage |
Mounting Type | DIN Rail |
Phase Sensitivity | Phase Failure, Phase Imbalance, Phase Sequence |
Time Delay | 0.1 → 10s |
Series | MWUA |
Width | 17.5mm |
Height | 92.6mm |
Length | 69mm |
Minimum Voltage Sensed | 183V ac |
Operating Temperature Range | +50°C |
Minimum Operating Temperature | -20°C |
Maximum Voltage Sensed | 528V ac |
Dimensions | 69 x 17.5 x 92.6mm |
Maximum Operating Temperature | +50°C |
