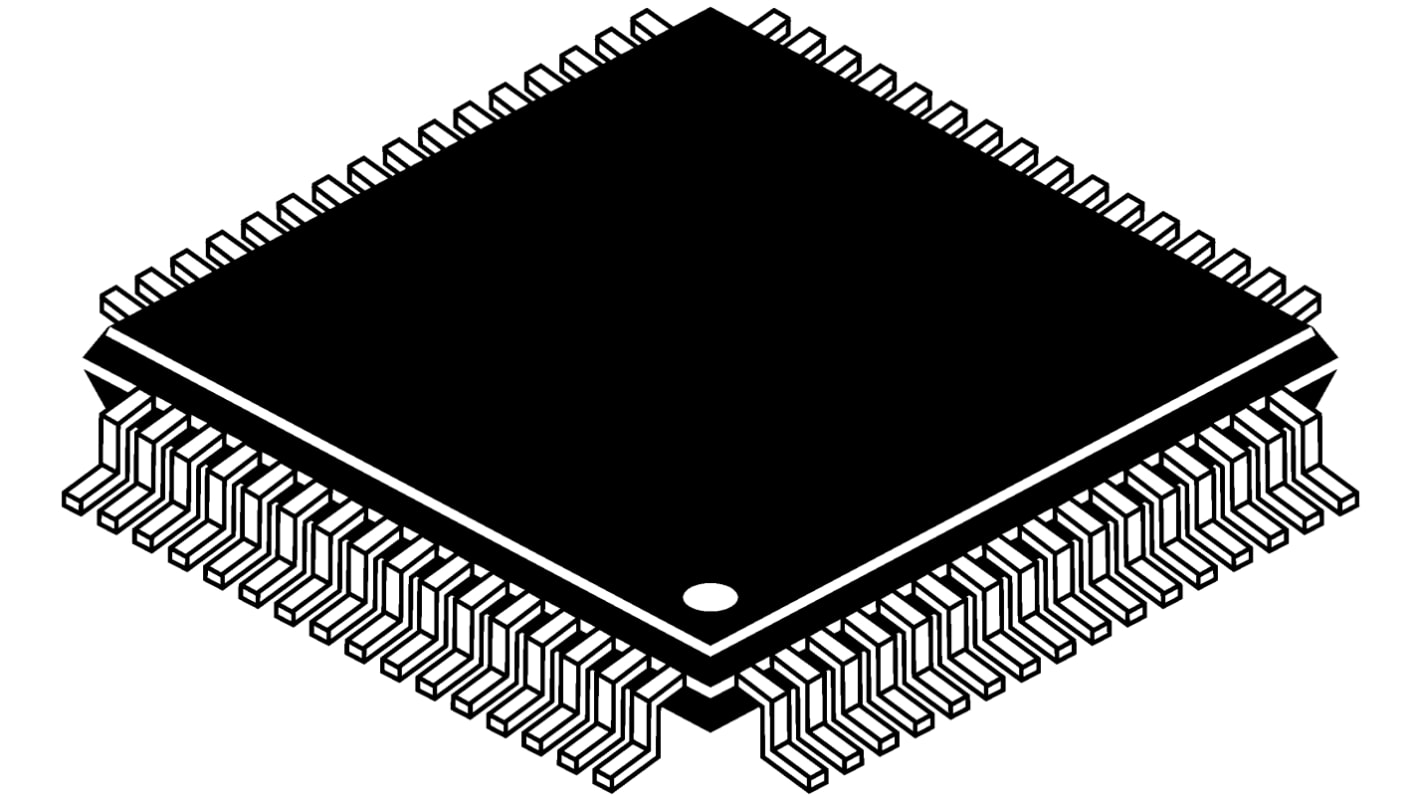

NXP MK22FN128VLH10, 32bit ARM Cortex M4 MCU, 100MHz, 128 kB Flash, 64-Pin LQFP

  • RS Stock No. 823-2384
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MK22FN128VLH10
  • ผู้ผลิต / Manufacturer NXP
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

Kinetis K2x Series Microcontrollers

The Kinetis K2x MCU family is pin-peripheral and software-compatible with many of the Kinetis K series MCU families, offering full and high-speed USB 2.0 On-The-Go (OTG), in addition to other features like device charge detect capability and USB crystal-less functionality. These devices offer various levels of integration, with a rich suite of analogue, communication, timing and control peripherals. Kinetis K2x Microcontrollers are further optimized for performance with industry-leading power consumption and offer more streamlined integration for further BOM cost reductions. Devices start from 32 KB of flash in 5 x 5 mm 32-pin QFN packages extending up to 1 MB in a 144-pin MAPBGA package.

The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name Kinetis K2x
Package Type LQFP
Mounting Type Surface Mount
Pin Count 64
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 100MHz
RAM Size 24 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 2
Number of SPI Channels 2
Typical Operating Supply Voltage 1.71 → 3.6 V
Number of I2C Channels 2
Number of Timers 5
Number of UART Channels 4
Length 10mm
ADCs 2 x 16-bit
Instruction Set Architecture MCU
ADC Resolution 16
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +105 °C
Number of ADC Units 2
Timer Resolution 16bit
Program Memory Type Flash
Pulse Width Modulation 1 (8 Channel)
Dimensions 10 x 10 x 1.6mm
Timers 1(8 x 16 bit), 2(2 x 16 bit)
Width 10mm
PWM Channels 8
Height 1.6mm
452 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 2)
THB 165.46
(exc. VAT)
THB 177.04
(inc. VAT)
Units
Per unit
Per Pack*
2 - 18
THB165.46
THB330.92
20 - 38
THB160.50
THB321.00
40 +
THB155.685
THB311.37
*ตัวบ่งบอกราคา / price indicative
