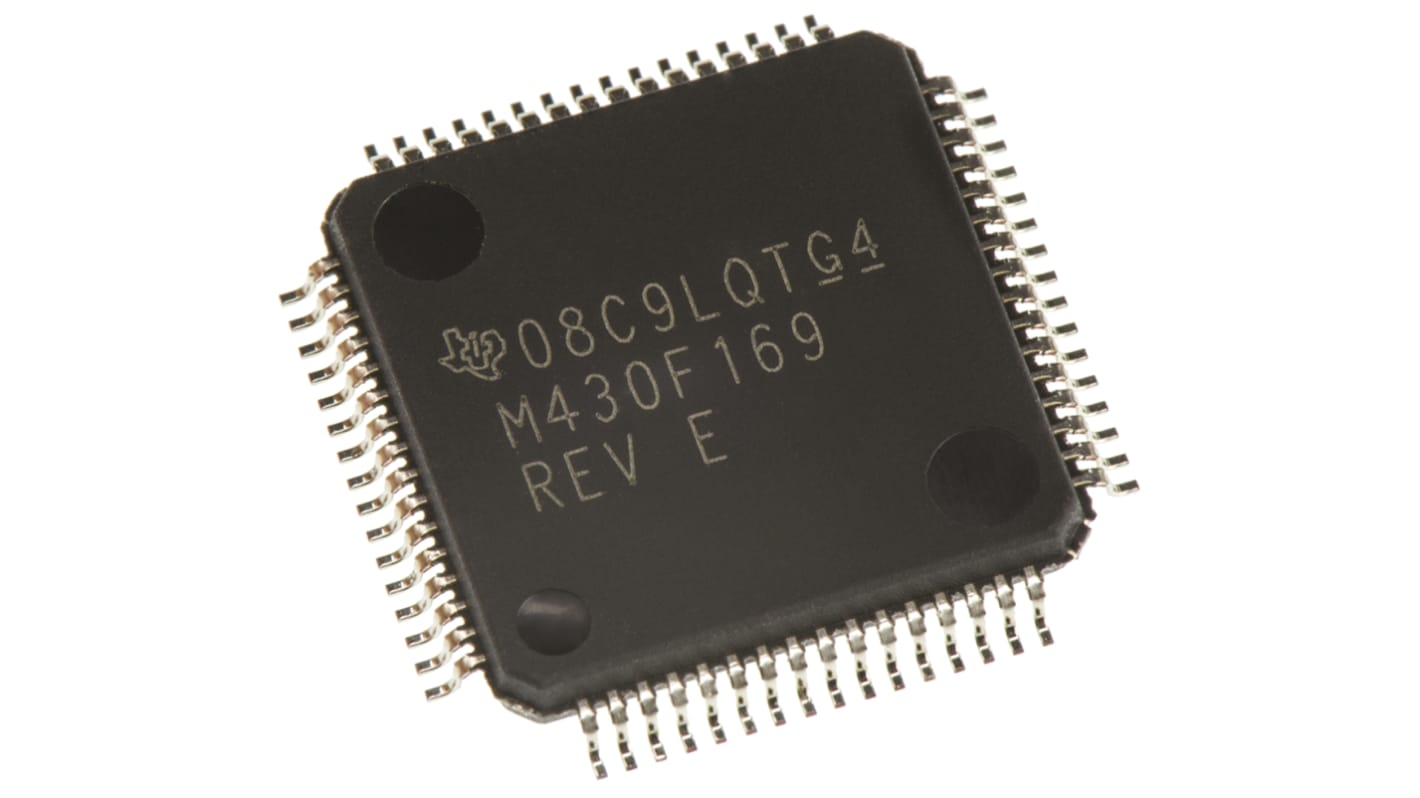

Texas Instruments MSP430F169IPM, 16bit MSP430 Microcontroller, 8MHz, 256 B, 60 kB Flash, 64-Pin LQFP

  • RS Stock No. 619-5794
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MSP430F169IPM
  • ผู้ผลิต / Manufacturer Texas Instruments
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

MSP430F1x Ultra-Low-Power Microcontrollers, Texas Instruments

The MSP430F1xx - 1 Series have an 8MHz CPU delivering ultra-low power performance.

Upto 8MHz CPU speed
1.8 to 3.6V operation
Up to 60KB Flash
Up to 10KB RAM
Wide range of high-performance analogue and intelligent digital peripherals
5 ultra-low power modes of operation
0.1μA RAM retention
0.7μA real-time clock mode
200μA per MHz active
Fast Wake-Up From Standby Mode in < 6μs

MSP430 Microcontrollers, Texas Instruments

The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name MSP430
Package Type LQFP
Mounting Type Surface Mount
Pin Count 64
Device Core MSP430
Data Bus Width 16bit
Program Memory Size 60 kB, 256 B
Maximum Frequency 8MHz
RAM Size 2 kB
Number of PWM Units 2
ADC Channels 8
Number of SPI Channels 2
Typical Operating Supply Voltage 1.8 → 3.6 V
Height 1.45mm
Timers 2 x 16 bit
Dimensions 10.2 x 10.2 x 1.45mm
Timer Resolution 16bit
Program Memory Type Flash
Instruction Set Architecture RISC
Number of UART Channels 2
Number of Timers 2
Number of I2C Channels 1
ADC Resolution 12bit
Number of USART Channels 2
Maximum Operating Temperature +85 °C
Length 10.2mm
ADCs 8 x 12 bit
PWM Channels 3, 7
Width 10.2mm
Pulse Width Modulation 3 x 16 bit, 3/7 x 16 bit
Number of ADC Units 1
Minimum Operating Temperature -40 °C
PWM Resolution 16bit
20 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 474.17
(exc. VAT)
THB 507.36
(inc. VAT)
Units
Per unit
1 - 9
THB474.17
10 - 49
THB455.94
50 - 99
THB439.65
100 - 249
THB425.00
250 +
THB411.71
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
