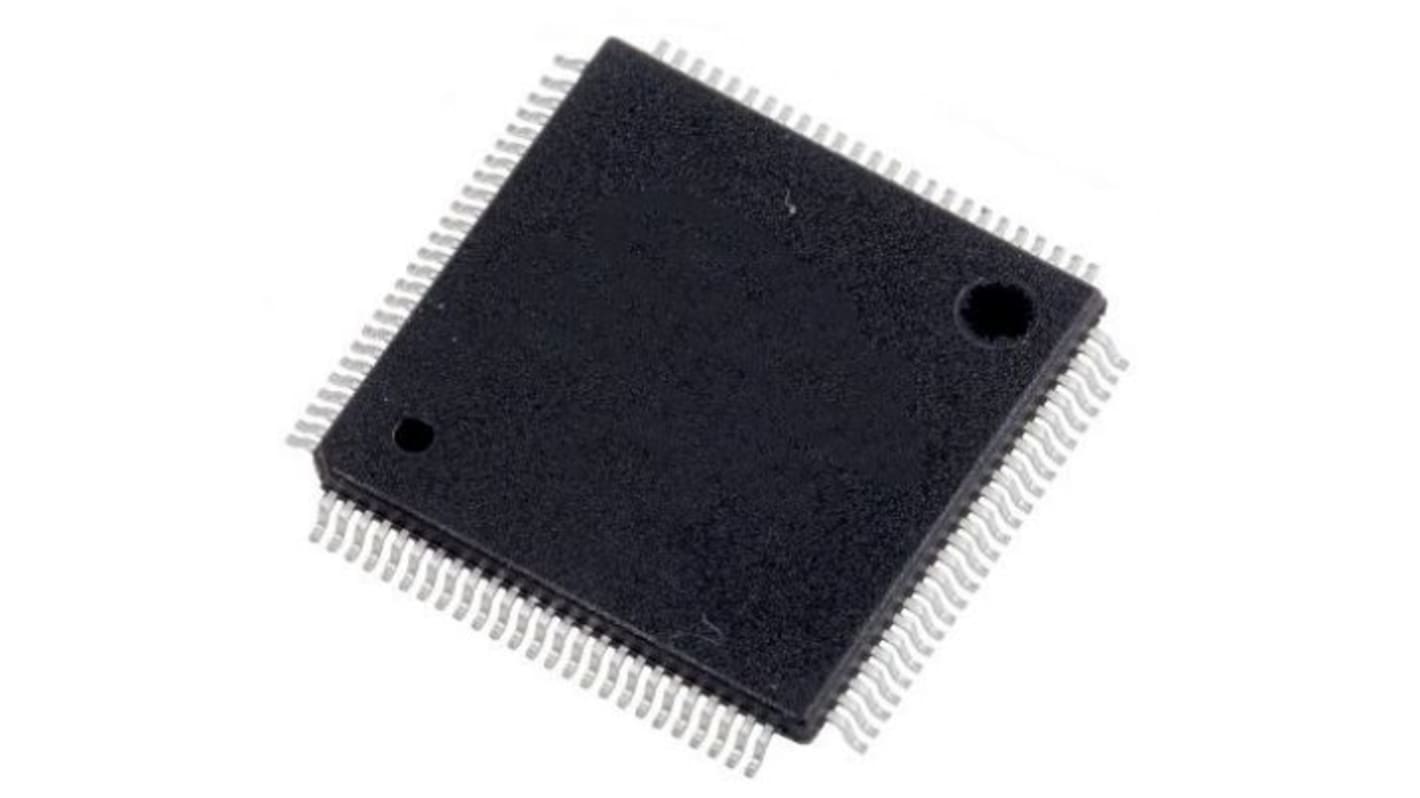

Renesas Electronics R5F10NPJDFB#35, 16bit RL78 Microcontroller MCU, RL78/I1C, 32MHz, 256 kB Flash, 100-Pin LQFP

RS Stock No.:: 263-0110
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: R5F10NPJDFB#35
ผู้ผลิต / Manufacturer:: Renesas Electronics

Renesas Electronics R5F10NPJDFB#35, 16bit RL78 Microcontroller MCU, RL78/I1C, 32MHz, 256 kB Flash, 100-Pin LQFP

ผลิตภัณฑ์ที่เลิกผลิตแล้ว

RS Stock No.:: 263-0110
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: R5F10NPJDFB#35
ผู้ผลิต / Manufacturer:: Renesas Electronics

Datasheet - R5F10NPJDFB#35

คุณสมบัติ	Value
Family Name	RL78/I1C
Package Type	LQFP
Mounting Type	Surface Mount
Pin Count	100
Device Core	RL78
Data Bus Width	16bit
Program Memory Size	256 kB
Maximum Frequency	32MHz
RAM Size	16 kB
USB Channels	0
Number of SPI Channels	2
Number of USART Channels	0
Number of CAN Channels	0
Number of UART Channels	2
Typical Operating Supply Voltage	1.7 → 5.5 V
Number of I2C Channels	1
Number of Ethernet Channels	0
Dimensions	14 x 14 x 1.7mm
Width	14mm
Height	1.7mm
Number of LIN Channels	1
Program Memory Type	Flash
Instruction Set Architecture	CISC
ADCs	6 x 10 bit, 4 x 24 bit
Length	14mm
Number of ADC Units	2
Maximum Operating Temperature	+85 °C
Number of PCI Channels	0
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
