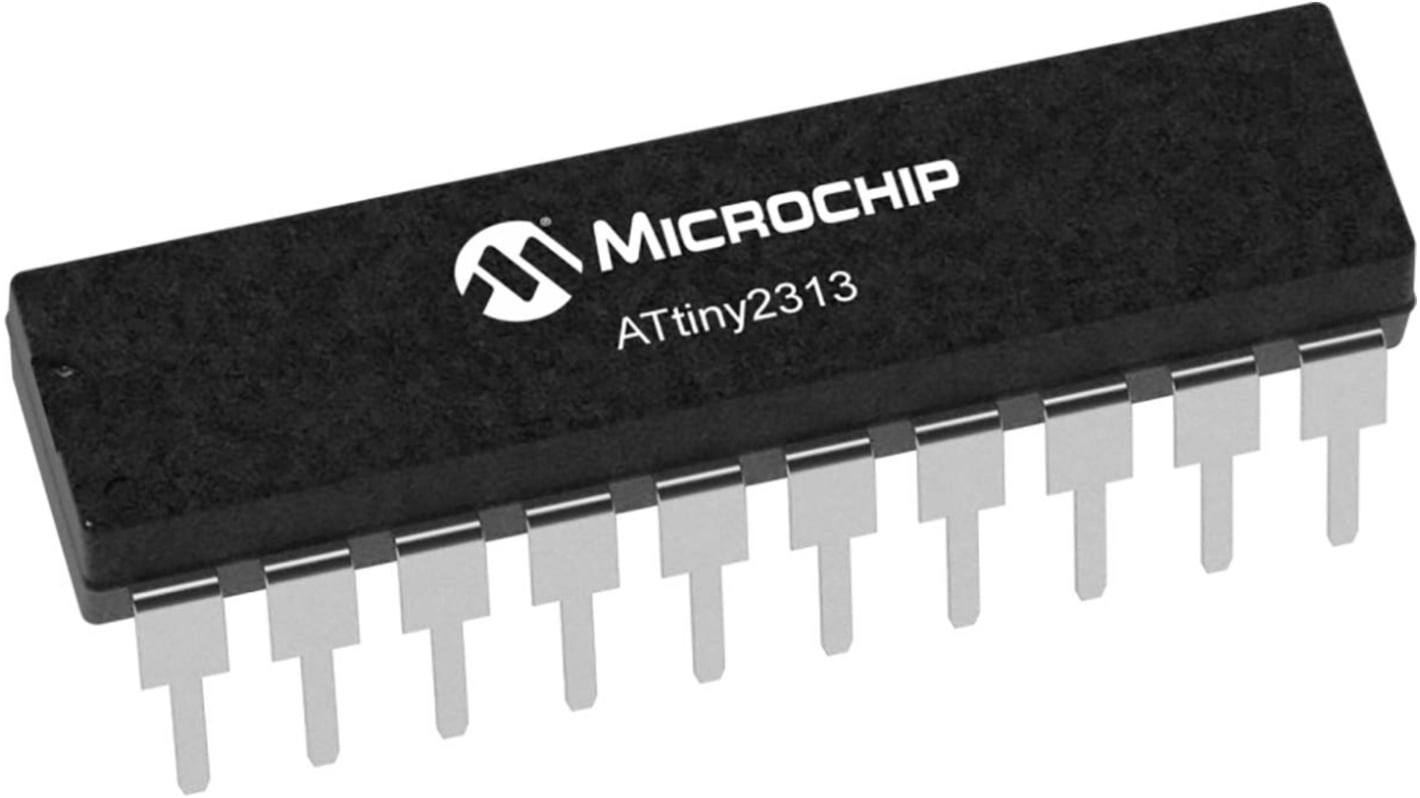

Microchip ATTINY2313-20SUR, 8bit AVR Microcontroller, ATtiny2313, 20MHz, 8 kB Flash, 20-Pin SOIC
- RS Stock No.:
- 199-5399
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY2313-20SUR
- ผู้ผลิต / Manufacturer:
- Microchip
1935 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 5)
THB87.00
(exc. VAT)
THB93.09
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 245 | THB87.00 | THB435.00 |
| 250 - 495 | THB84.828 | THB424.14 |
| 500 + | THB83.522 | THB417.61 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 199-5399
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY2313-20SUR
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
2
The Microchip is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture by executing powerful instructions in a single clock cycle with the ATtiny2313 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
High performance and low power RISC architecture
120 powerful instructions most single clock cycle execution
32 x 8 general purpose working registers
120 powerful instructions most single clock cycle execution
32 x 8 general purpose working registers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | ATtiny2313 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 0 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Number of UART Channels | 0 |
| Number of I2C Channels | 0 |
| Number of CAN Channels | 0 |
| Number of USART Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| ADCs | 0 |
| Pulse Width Modulation | 1 (4 Channel) |
| Program Memory Type | Flash |
| Length | 13mm |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Dimensions | 13 x 7.6 x 2.35mm |
| Number of LIN Channels | 0 |
| Width | 7.6mm |
| Height | 2.35mm |
| Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
