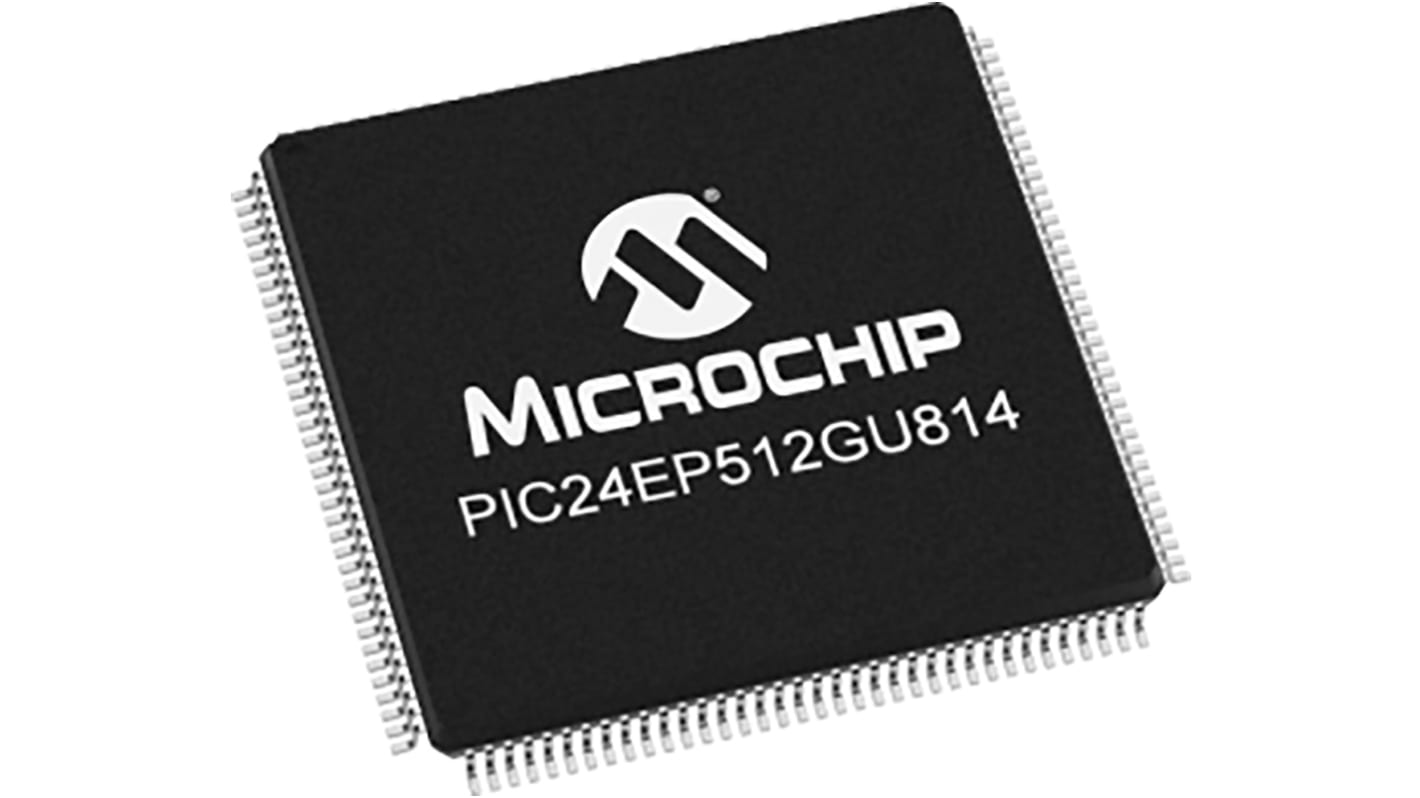

Microchip Technology PIC24EP512GU814-I/PH, 16bit PIC Microcontroller, 60MHz, 536 kB Flash, 144-Pin TQFP

  • RS Stock No. 177-3574
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC24EP512GU814-I/PH
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
รายละเอียดสินค้า / Product Details

Microchip’s PIC24E general purpose microcontroller family features the highest speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, enhanced CAN communication, easier graphic display interface through 8-bit parallel master port and up to 15 DMA channels for extensive data movement. These devices are available in various packages and with extended (125°C) temp option

Operating Range:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
PIC24E MCU Core:
Modified Harvard architecture
C compiler optimized instruction set
16-bit wide data path
24-bit wide instructions
16 x 16 multiply operations
32/16 and 16/16 divide operations
Advanced

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC24E
Package Type TQFP
Mounting Type Surface Mount
Pin Count 144
Device Core PIC
Data Bus Width 16bit
Program Memory Size 536 kB
Maximum Frequency 60MHz
RAM Size 52 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 32
Number of SPI Channels 4
Typical Operating Supply Voltage 3.6 (Maximum) V
Pulse Width Modulation 1 (16 Channel)
Number of CAN Channels 2
Number of ADC Units 2
Program Memory Type Flash
Timer Resolution 16 bit, 32 bit
Height 1.05mm
PWM Channels 16
Width 16mm
ADC Resolution 10 bit, 12 bit
Maximum Operating Temperature +85 °C
Dimensions 16 x 16 x 1.05mm
Minimum Operating Temperature -40 °C
Number of I2C Channels 2
Number of Timers 2
ADCs 1 (32 x 10 bit), 1 (32 x 12 bit)
Length 16mm
Automotive Standard AEC-Q100
Number of UART Channels 4
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 16/09/2020, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tray of 90)
THB 271.501
(exc. VAT)
THB 290.506
(inc. VAT)
Units
Per unit
Per Tray*
90 +
THB271.501
THB24,435.09
*ตัวบ่งบอกราคา / price indicative
