- RS Stock No.:
- 177-3336
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:

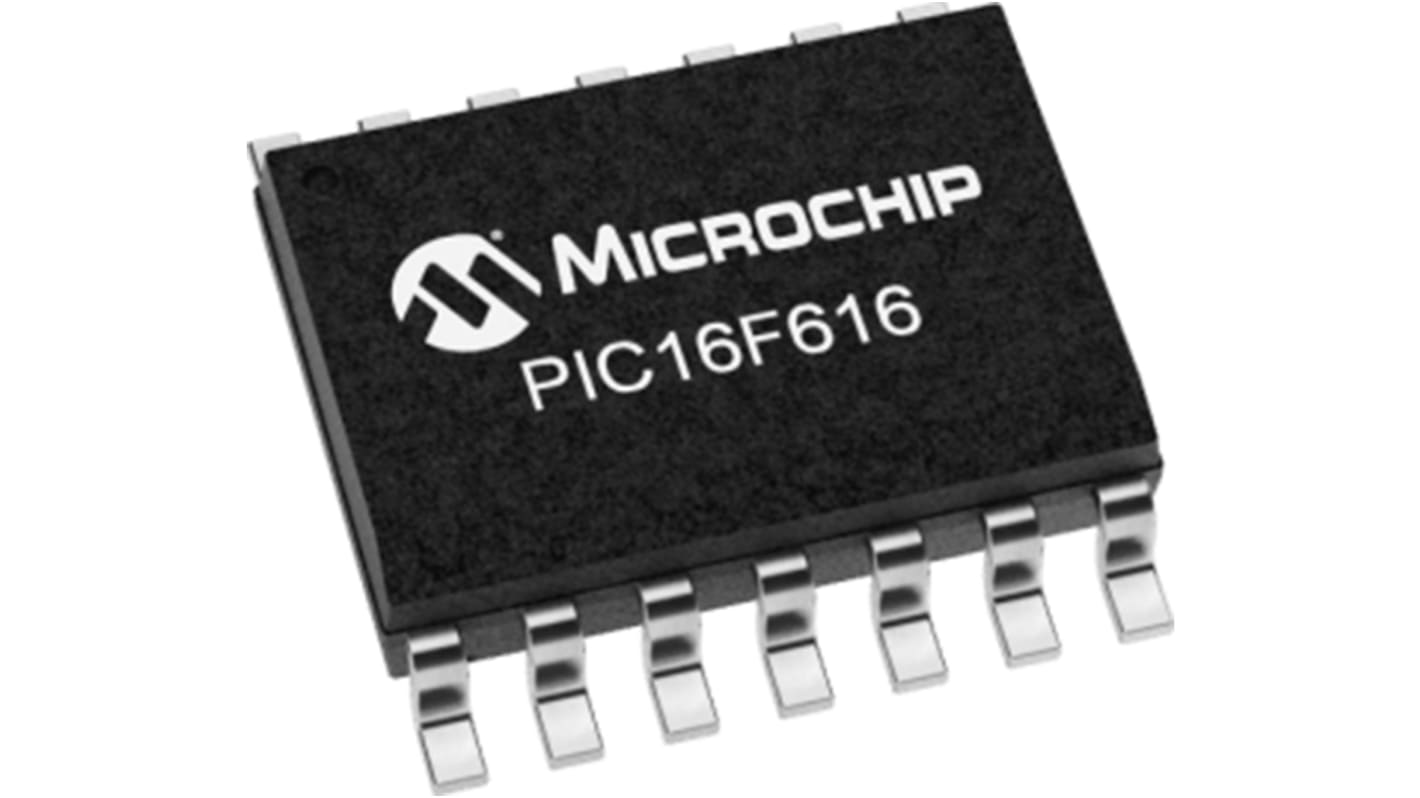

- PIC16F616T-I/SL
- ผู้ผลิต / Manufacturer:
- Microchip
7800 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 10)
THB58.226
(exc. VAT)
THB62.302
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 640 | THB58.226 | THB582.26 |
650 - 1290 | THB56.77 | THB567.70 |
1300 + | THB55.896 | THB558.96 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 177-3336
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC16F616T-I/SL
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The PIC16F610/616/16HV610/616 has a 13-bit program counter capable of addressing an 8K x 14 program memory space. Only the first 1K x 14 (0000h-3FF) for the PIC16F610/16HV610 and the first 2K x 14 (0000h-07FFh) for the PIC16F616/16HV616 is physically implemented. Accessing a location above these boundaries will cause a wraparound within the first 1K x 14 space (PIC16F610/16HV610) and 2K x 14 space (PIC16F616/16HV616). The Reset vector is at 0000h and the interrupt vector is at 0004h
Flash Program Memory
Internal 4/8MHz oscillator
Comparator with hysterisis (user configurable)
Mid-Range core with 35 Instruction, 8 Stack Levels
25mA Source/Sink current I/O
Two 8-bit Timer (TMR0/TMR2)
One 16-bit Timer (TMR1)
Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
Enhanced Capture Compare PWM (Pulse Width Modulation)
Wide Operating Voltage (2.0V – 5.5V)
High Voltage PIC16HV616 variant (2.0V – User Defined) with internal shunt regulator
Internal 4/8MHz oscillator
Comparator with hysterisis (user configurable)
Mid-Range core with 35 Instruction, 8 Stack Levels
25mA Source/Sink current I/O
Two 8-bit Timer (TMR0/TMR2)
One 16-bit Timer (TMR1)
Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
Enhanced Capture Compare PWM (Pulse Width Modulation)
Wide Operating Voltage (2.0V – 5.5V)
High Voltage PIC16HV616 variant (2.0V – User Defined) with internal shunt regulator
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 3.5 kB |
Maximum Frequency | 20MHz |
RAM Size | 128 B |
USB Channels | 0 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 0 |
Number of I2C Channels | 0 |
Number of UART Channels | 0 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of USART Channels | 0 |
Number of CAN Channels | 0 |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Maximum Number of Ethernet Channels | 0 |
ADCs | 8 x 10 bit |
Height | 1.5mm |
Length | 8.65mm |
Automotive Standard | AEC-Q100 |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Dimensions | 8.65 x 3.9 x 1.5mm |
Number of LIN Channels | 0 |
Width | 3.9mm |
Pulse Width Modulation | 1 (4 x 10 bit) |
Program Memory Type | Flash |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
