- RS Stock No.:
- 177-3007
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY2313A-SUR
- ผู้ผลิต / Manufacturer:
- Microchip
930 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 10)
THB57.032
(exc. VAT)
THB61.024
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 240 | THB57.032 | THB570.32 |
250 - 490 | THB55.604 | THB556.04 |
500 + | THB54.75 | THB547.50 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 177-3007
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY2313A-SUR
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

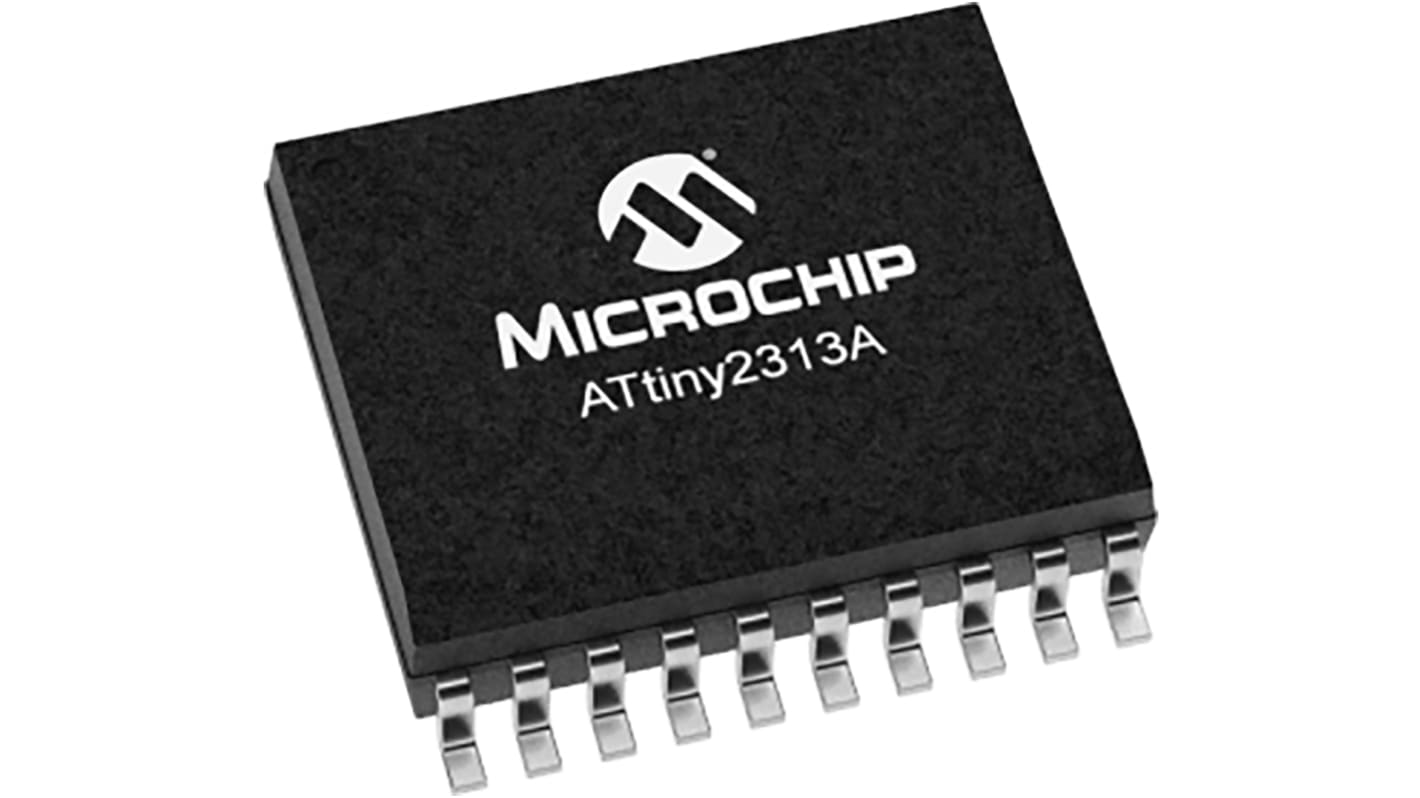

The high-performance Microchip picoPower AVR RISC-based CMOS 8-bit microcontroller combines 2KB flash memory, 128B EEPROM, 128B SRAM, 18 general purpose I/O lines, 32 general purpose working registers, a single-wire Interface for on-chip debugging, two flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a universal serial interface (USI) with start condition detector, programmable watchdog timer with internal oscillator, and three software selectable power saving modes. The device operates between 1.8-5.5 volts.By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Advanced RISC Architecture
120 Powerful Instructions – Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 20 MIPS Throughput at 20 Mhz
120 Powerful Instructions – Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 20 MIPS Throughput at 20 Mhz
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | ATtiny2313A |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 20 |
Device Core | AVR |
Data Bus Width | 8bit |
Program Memory Size | 2 kB |
Maximum Frequency | 20MHz |
RAM Size | 128 B |
USB Channels | 0 |
Number of PWM Units | 1 x 16 bit |
Number of SPI Channels | 2 |
Number of USART Channels | 1 |
Number of UART Channels | 1 |
Number of CAN Channels | 0 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of I2C Channels | 1 |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
Maximum Number of Ethernet Channels | 0 |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Dimensions | 13 x 7.6 x 2.35mm |
Width | 7.6mm |
Height | 2.35mm |
ADCs | 0 |
Length | 13mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 0 |
Number of LIN Channels | 0 |
Program Memory Type | Flash |
Pulse Width Modulation | 1 (4 x 16 bit) |
