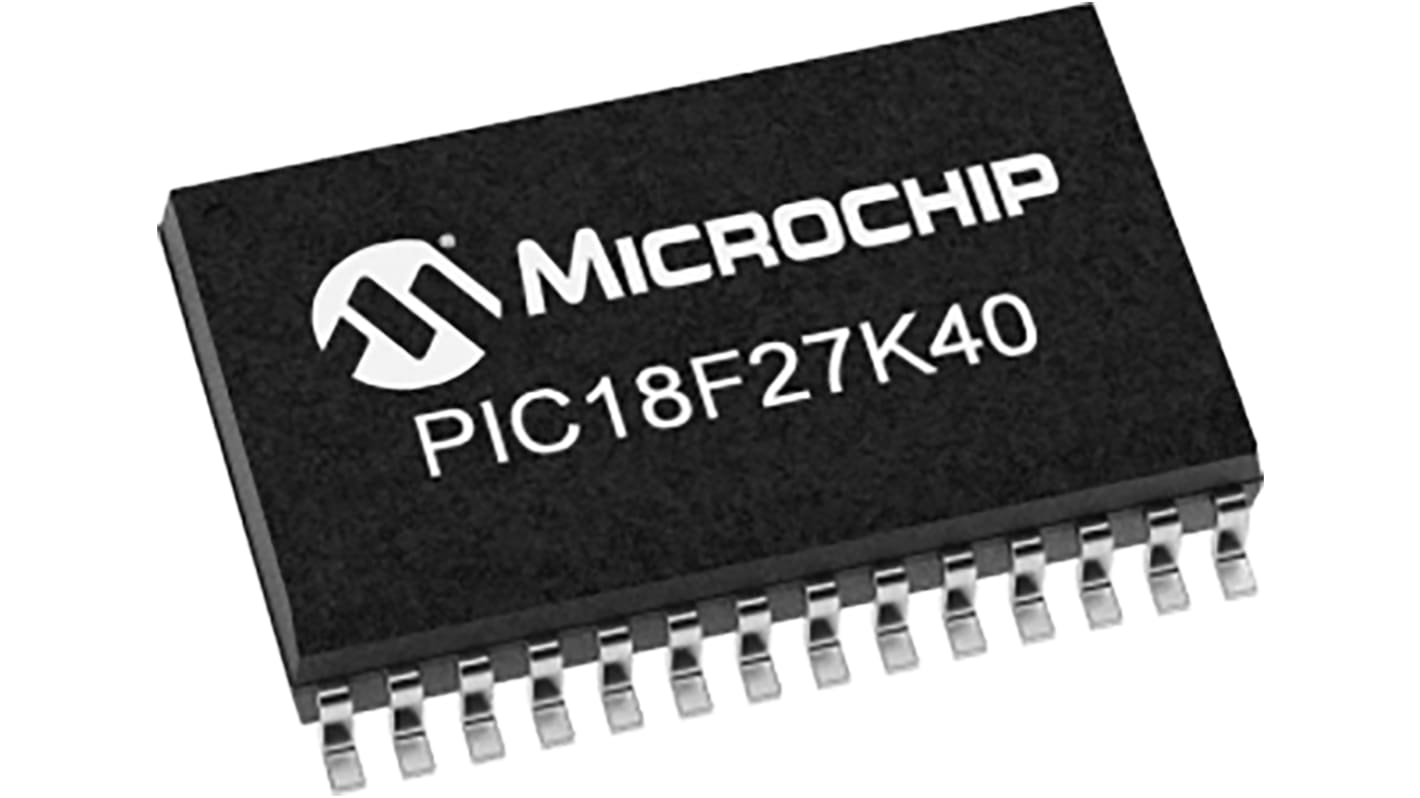

Microchip Technology PIC18F27K40-I/SS, 8bit PIC Microcontroller, 64MHz, 128 kB Flash, 28-Pin SSOP

  • RS Stock No. 177-2731
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC18F27K40-I/SS
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
รายละเอียดสินค้า / Product Details

PIC18(L)F25K40 microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, XLP and 5V support to suit a variety of general purpose applications. These 28-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.

PIC18 Core with 83 Instructions, 31 Stack Levels
Internal 64MHz oscillator
Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)
Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)
MEMORIES:
16 KB Flash Program Memory with self read/write capability
1024 Bytes Data SRAM Memory
256 Bytes of EEPROM
INTELLIGENT ANALOG:
24 x 10-bit ADC channels
1 x 5-bit DAC
2 x Comparators
Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1 x Zero-Cross Detect

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC18F
Package Type SSOP
Mounting Type Surface Mount
Pin Count 28
Device Core PIC
Data Bus Width 8bit
Program Memory Size 128 kB
Maximum Frequency 64MHz
RAM Size 3.615 kB
Number of PWM Units 1
ADC Channels 24
Number of SPI Channels 2
Typical Operating Supply Voltage 5.5 (Maximum) V
Number of I2C Channels 2
ADCs 1 (24 x 10 bit)
Number of Timers 1
Length 10.5mm
Timers 1 (4 x 16 bit)
Height 1.85mm
Number of USART Channels 2
ADC Resolution 10bit
Width 5.6mm
Minimum Operating Temperature -40 °C
Dimensions 10.5 x 5.6 x 1.85mm
PWM Channels 2
Timer Resolution 16bit
Number of ADC Units 1
Maximum Operating Temperature +85 °C
Number of UART Channels 2
Program Memory Type Flash
Pulse Width Modulation 1 (2 x 10 bit)
PWM Resolution 10bit
35 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 5)
คือ THB65.51
THB 48.488
(exc. VAT)
THB 51.882
(inc. VAT)
Units
Per unit
Per Pack*
5 - 5
THB48.488
THB242.44
10 - 15
THB47.48
THB237.40
20 +
THB45.778
THB228.89
*ตัวบ่งบอกราคา / price indicative
