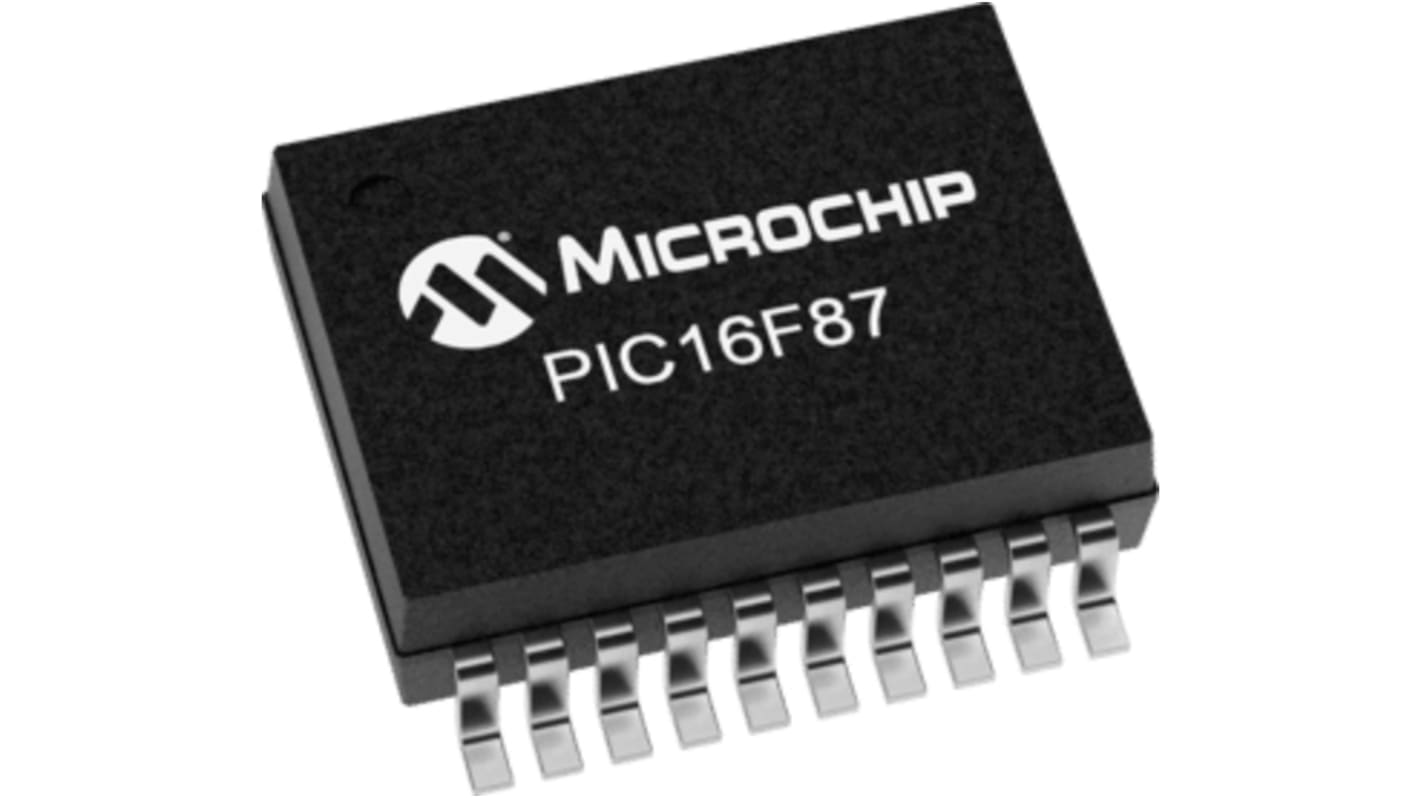

Microchip Technology PIC16LF87-I/SS, 8bit PIC Microcontroller, 20MHz, 7 kB Flash, 20-Pin SSOP

  • RS Stock No. 177-2164
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC16LF87-I/SS
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices. The PIC16F87 features 8MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART and 2 Comparators that make it ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.

1 PWM 10-bit

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC16LF
Package Type SSOP
Mounting Type Surface Mount
Pin Count 20
Device Core PIC
Data Bus Width 8bit
Program Memory Size 7 kB
Maximum Frequency 20MHz
RAM Size 368 B
Number of PWM Units 1
ADC Channels 1
Number of SPI Channels 1
Typical Operating Supply Voltage 5.5 (Maximum) V
Number of ADC Units 1
Number of I2C Channels 1
Maximum Operating Temperature +85 °C
Length 7.6mm
ADCs 1 (1 x 10 bit)
Number of Timers 2
Program Memory Type Flash
Minimum Operating Temperature -40 °C
Dimensions 7.6 x 5.6 x 1.85mm
PWM Resolution 10bit
Pulse Width Modulation 1 (1 x 10 bit)
Instruction Set Architecture RISC
Timer Resolution 8 bit, 16 bit
Height 1.85mm
PWM Channels 1
Width 5.6mm
ADC Resolution 10bit
Number of USART Channels 1
Timers 1 (1 x 16 bit), 1 (2 x 8 bit)
180 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tube of 67)
คือ THB117.149
THB 103.615
(exc. VAT)
THB 110.868
(inc. VAT)
Units
Per unit
Per Tube*
67 +
THB103.615
THB6,942.205
*ตัวบ่งบอกราคา / price indicative
